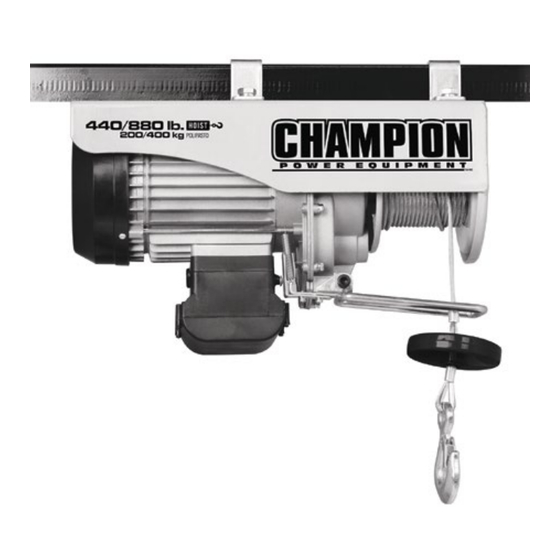

- Page 1 Electric Hoist Single Line 440 lb./Double Line 880 lb. MODEL NUMBER 18890 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important safety instructions MADE IN CHINA USA / 1-877-338-0999 are included in this manual. REV 18890-20190815 www.championpowerequipment.com...
- Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Table Of Contents
18890 Electric Hoist Single Line 440 lb./Double Line 880 lb. TAbLE Of CONTENTS . . . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
Congratulations on your purchase of a Champion Power Equipment product . Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines . With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service . -
Page 5: Manual Conventions
18890 ENGLISH MANUAL CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information . The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment . -
Page 6: Safety Rules
ENGLISH 18890 SAfETy RULES WARNING WARNING Read this manual thoroughly before operating Do not use the hoist to secure an item(s) for your hoist . Failure to follow instructions could transport . result in damage, serious injury or death . - Page 7 18890 ENGLISH SAfETy RULES WARNING CAUTION When re-spooling the cable, ensure that the Duration of hoisting pulls should be kept as cable spools in the over-wind position with the short as possible . cable entering the drum from the top, not the If the motor becomes uncomfortably hot to the bottom .
-
Page 8: Controls And Features
ENGLISH 18890 CONTROLS AND fEATURES Read this owner’s manual before operating your hoist . Familiarize yourself with the location and function of the controls and features . Save this manual for future reference . Electric Hoist Electric Motor – 7 .1 Amp, 120V AC, Single Pulley Hook –... -
Page 9: Assembly
18890 ENGLISH ASSEMbLy Securing the Hoist Assembling the Hoist Cont’d. This CPE 440 lb ./880 lb . electric hoist already comes with the remote control, power cord, wire cable and stop bracket attached, and therefore the user only needs to secure the hoist to a sturdy support structure using the support brackets provided . -
Page 10: Grounding
ENGLISH 18890 ASSEMbLy Grounding Electronic Hoist Location A proper hoist work area is recommended . The Your electronic hoist must be properly connected hoist work area must be clean and well lighted . to an appropriate ground to help prevent electric The work area must not be accessible to children shock . -
Page 11: Operation
18890 ENGLISH OPERATION Inspection Connecting a Load Before use of the electric hoist, always inspect During connection of a load and operation of the the hoist, power connections, wire cable, load hoist, the user should keep hands and fingers connections, and work area for any possible clear of pinch points, moving parts and the wire damage or hazards . -
Page 12: General Tips For Safe Operation
OPERATION General Tips for Safe Operation Single Line Operation Your 18890 electric hoist is rated at a 440 lb . During single line operation, the max rated load single line and 880 lb . double line capacity . capacity is 440 lb . (200 kg) . Do not exceed Overloads can damage the hoist, motor, wire max rated load capacity . -
Page 13: Double Line Operation
18890 ENGLISH OPERATION Double Line Operation Cont’d. Double Line Operation Cont’d. Once the support hook is securely hooked into WARNING the double line support hole and the safety clasp has been fully clasped, then the pulley hook can If pulley hook roller is not properly aligned be attached to the wire cable . -
Page 14: Hoisting Techniques
ENGLISH 18890 OPERATION Hoisting Techniques Hoisting Techniques Cont’d. 1 . Take time to assess your work area, and make 14 . Disconnect the wire cable from the anchor . sure it is free of any debris, liquids, and other 15 . Rewind the wire cable . Make sure that any possible hazards and distractions . -
Page 15: Maintenance
18890 ENGLISH MAINTENANCE Cable Assembly Replacement The owner/operator is responsible for all periodic maintenance . It is recommended that any wire cable or spool modifications be performed by a manufacturer’s WARNING authorized repair facility, and that only manufacturer-supplied parts be used . -
Page 16: Specifications
ENGLISH 18890 SPECIfICATIONS Performance Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 17: Wiring Diagram
18890 ENGLISH SPECIfICATIONS Wiring Diagram... -
Page 18: Parts Diagram
ENGLISH 18890 SPECIfICATIONS Parts Diagram... -
Page 19: Parts List
18890 ENGLISH Parts List Part Number Description Part Number Description 18890-001 Housing 18890-040 Upper Junction Box 18890-002 Cap Screw (M10 x 30) 18890-041 Cable Assembling Bolt 18890-042 Limit Switch Shaft 18890-003 (M10 x 26) 18890-043 Split Washer (ø6) 18890-004 Fixing Ring... -
Page 20: Troubleshooting
ENGLISH 18890 TROUbLESHOOTING Problem Cause Solution Motor does not click No electrical power Plug in and secure power cord to a grounded or turn electrical 120V power source Pinched power cable Check all power cord connections and make sure nothing is resting on top of, or pinching the power...
