Summary of Contents for Seymour Screen Excellence TAM

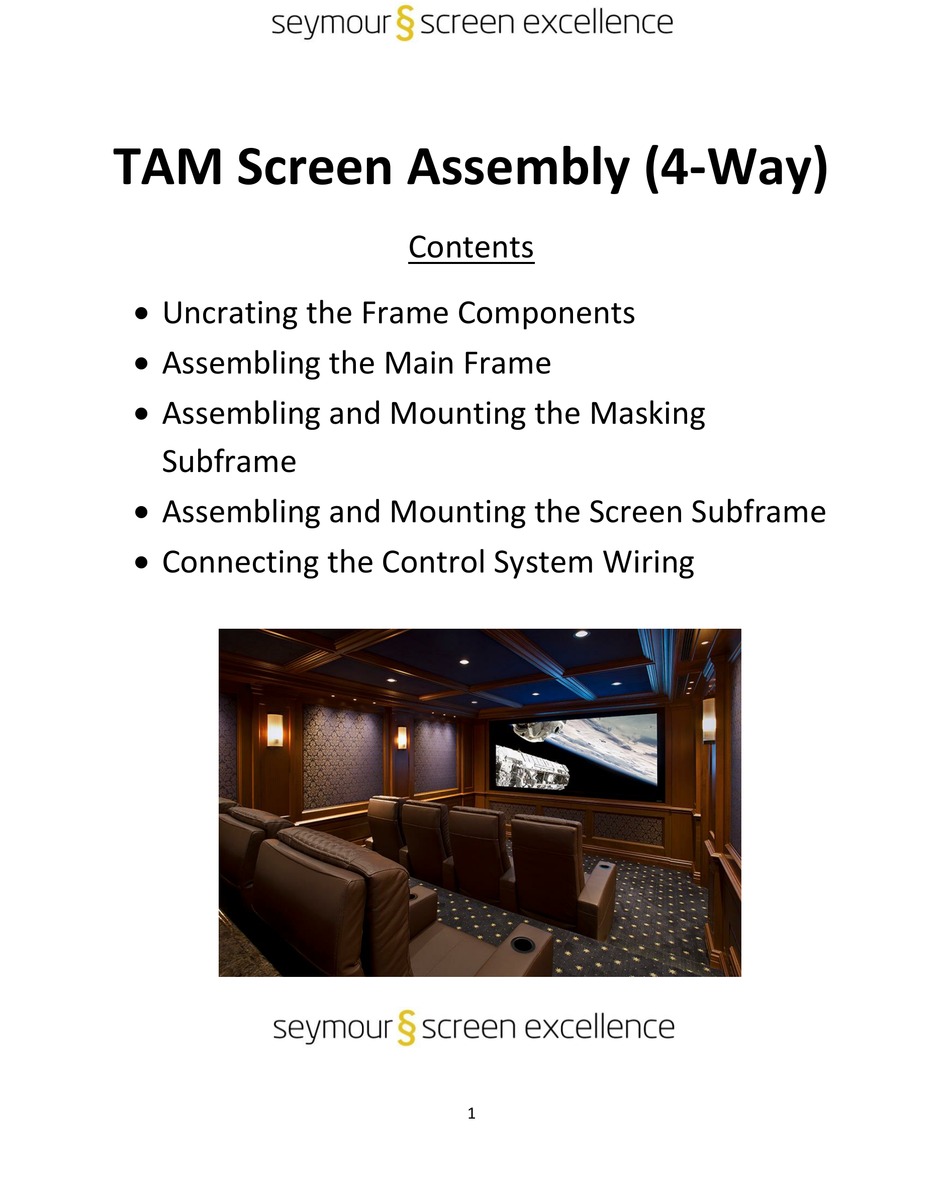

- Page 1 TAM Screen Assembly (4-Way) Contents Uncrating the Frame Components Assembling the Main Frame Assembling and Mounting the Masking Subframe Assembling and Mounting the Screen Subframe Connecting the Control System Wiring...
- Page 2 NOTE Crating configuration may vary based upon product ordered but the steps shown here will be essentially the same. 1) Remove crate lid using a Phillip’s screw 2) Components will be secured within the driver. crate. 3) Remove the 2” x 4” cross-members. 4) Use caution so that the cross-members do not fall to the inside of the crate possibly damaging the components inside.
- Page 3 5) Remove the side panels for easier access to 6) The components inside the crate will be the components inside. “block-fastened” to the floor of the crate. 7) Remove the block-fastened components 8) Use caution when working around the black using a cordless drill.
- Page 4 9) Carefully remove the components lifting 10) It is best to have two people removing the straight up. components from the crate. 11) Align the components velvet side face- 12) The main frame is now ready to be down on a stable, flat surface such as work assembled using the splice bars provided.
- Page 5 Set-screws threaded into the blind-nuts U-channel splice bar 13) Insert the U-channel splice bar as shown, 14) After the components are aligned, tighten and slide the frame components together. the set-screws against the U-channel splice bar using an Allen wrench. 15) Remove the masking subframe from the 16) The sections of the frame will be crate and position the sections as shown...
- Page 6 17) The accessories pack will contain all of the 18) The individual packs will be labeled with fasteners and components for assembly and their usage requirement. operation. 19) Insert and tighten the set-screws as shown 20) The assembled masking subframe will look using an Allen wrench.
- Page 7 Masking subframe mounting screws 21) The assembled masking subframe will 22) The screen subframe will be assembled by attach to the screen bracket using an “L- matching the corresponding letters as bracket” as shown. connection points (shown above). 23) The assembled screen subframe will look 24) The fabric is inserted into grip track to as shown above after assembly.
- Page 8 Black backing inserted into Spatulas grip track. 25) Using a spatula, insert the fabric, along 26) The above photo shows the screen and with the black backing, into the grip track black backing inserted into the grip track. You starting at the center of each frame member are facing the back side of the screen here.
- Page 9 Mounting screws for screen subframe Mounting screws installation. for screen subframe onto mainframe. 29) The screen subframe mounting screws will 30) The above photo shows the mounting be packaged and labeled according to their screws for the slotted side of the mounting use.
- Page 10 33) The photo above shows the back side of 34) The photo above shows the corresponding the projection screen assembly with the entire front side of the projection screen. screen subframe installed. 35) The control system wires will be band-tied 36) The above photo shows the control wires and color coded as shown.
