Rio Tinto LT-800 Manual

DMX Controller
LT-800 DMX512 controller is the output signal of international standard DMX512/1990. It not only can
control all the LED lights that receiving the standard DMX signal in the market, but also can work with
our DMX decoder to control the general LED lights without DMX512.
LT-800 DMX512 controller is easy to operate with a LCD screen. Available with wireless control and
keying control on the changing modes, speed and brightness, automatic timing and more than 580
modes for your choices.
1. Product Parameter:
LT-800 DMX Controller
Working Voltage: 12V dc (with an adapter to
convert
100-240V ac to 12V
<2W
Power Consumption:
Output Signal: DMX512
Output Loop: 1 Port
Transmission Speed: 250Kbps
Lighting Mode: 580 Modes
2. Features:
2.1 With a LCD screen, easy to operate in showing all functions.
2.2 Built-in perpetual calendar, real-time display system clock, can be set up to play different programs
in any time, Monday to Sunday or holiday.
2.3 580 lighting modes, such as, 7 static color, jumping synchronism, smooth synchronism, color flow,
color chasing, color smooth and flow and Meteor shower trailing, etc.
2.4 Multilevel changing speed, brightness, RGB grey scale adjustment and effect of movement direction
for your choices.
2.5 Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
2.6 Output with international standard signal DMX512/1990, can control 512 DMX channels
(170 full color RGB pixels)
2.7 Support different output ports like standard XLR-3, RJ45 and green terminals. etc.
2.8 With the functions of anti-interference and automatic breakdown recovery.
LT-800
warranty
5 years
Control Quantity: 512 DMX Channels(170 pixels)
)
dc
℃ ℃
Working Temperature: -30 ~65
Dimensions: L163×W108×H40mm
Package Size: L260×W132×H46mm
Weight(G.W.): 815g
1

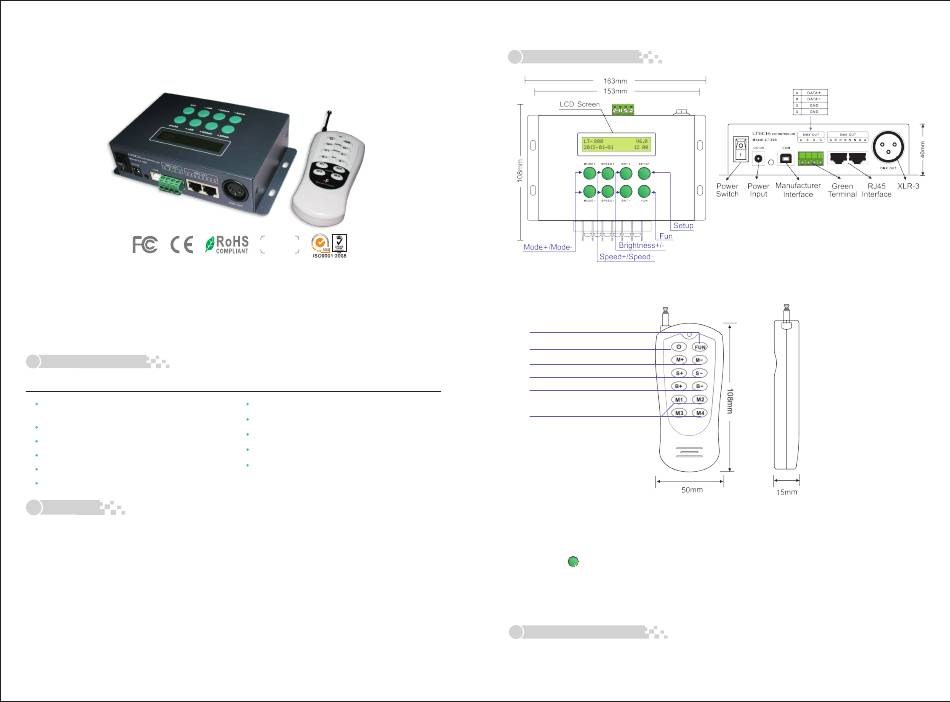

3. Structural Drawings:
Setting Key
Short press to switch 8 mode types;
Long press to switch 4 mode directions.
On/Off
Mode+/Mode-
Speed+/Speed–
BRT+/BRT–
Scene-save keys
Press 2s to save
RF Remote Control
Buzzer on/off: Long press "On/Off" button on the remote.
ID Learning Method:
Long press button on the controller for 2 seconds, there is a buzzer beep, keep pressing:
FUN
Learning ID: Press any key on the remote in 3 seconds.
Canceling ID: Press any key on the remote over 3 seconds.
4. Operating Instructions:
8 function keys on t he controller : MODE+/MODE-, SPEED+/SPEED-, BRT+/BRT-(brightness),
SETUP, FUN(function).
SETUP: Short press to adjust movement direction of effect;
Long press to enter the menu setting interface
FUN: Short press to switch mode type;
Long press to enter the DMX addressing, meanwhile
start learning ID process of RF remote.
Controller
