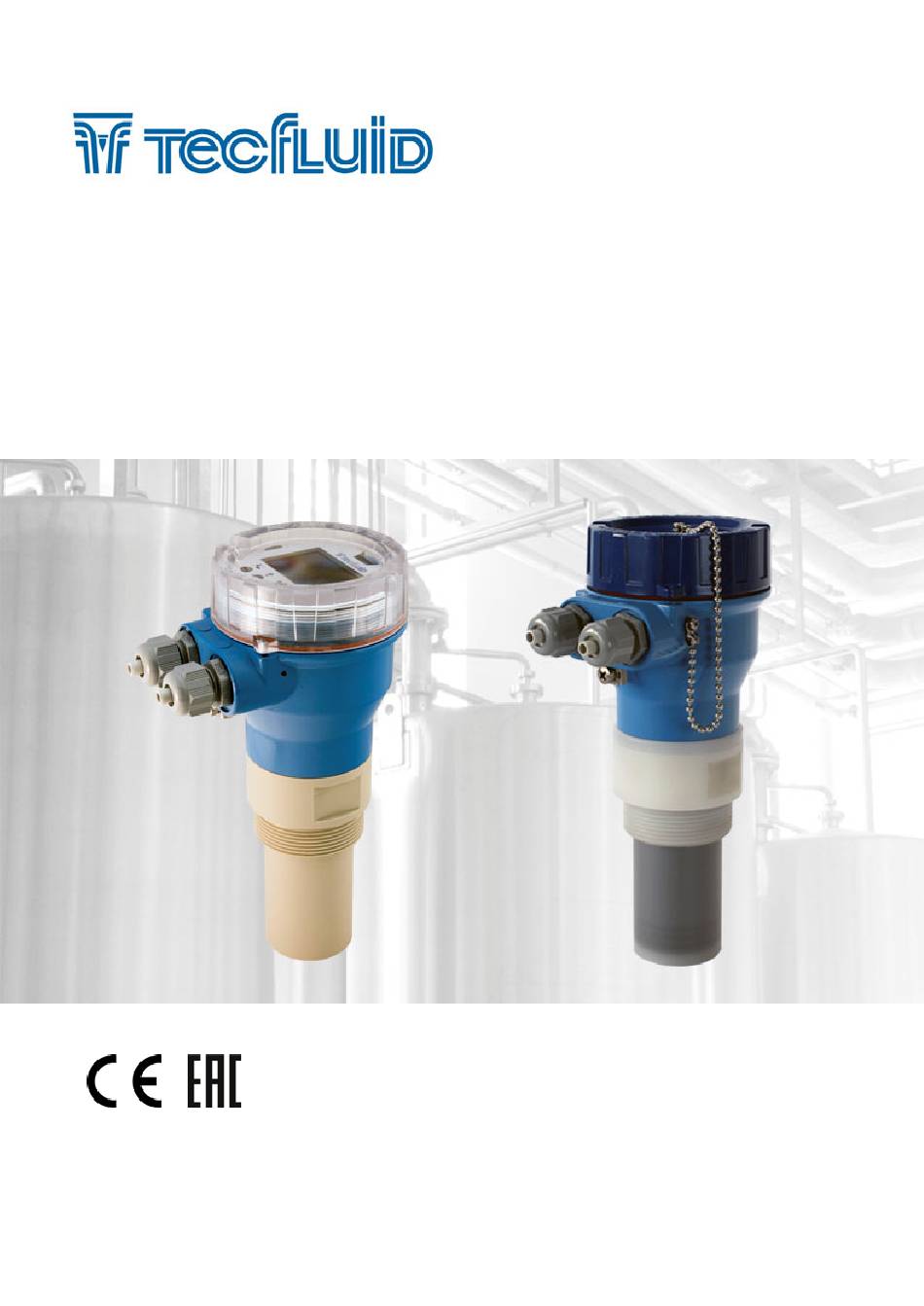

- Page 1 Instructions manual Series LU Ultrasonic level transmitter LU9X2 The art of measuring R-MI-LU9X2 Rev.: 0...
- Page 2 PREFACE Thank you for choosing a product from Tecfluid S.A. This instruction manual allows installation, configuration, programming and maintenance. It is recommended to read it before using the equipment. WARNINGS This document shall not be copied or disclosed in whole or in any part by any means, without the written permission of Tecfluid S.A.
-
Page 3: Table Of Contents
TABLE OF CONTENTS SERIES LU9X2 INTRODUCTION ................WORKING PRINCIPLE ..............RECEPTION .................. Unpacking ................Storage temperature ............. INSTALLATION ................Measuring range ..............Obstacles in the vessel ............Filling entries ................ Foams ................Standpipe measurement ............Temperature ..............ELECTRICAL CONNECTION ............Power supply and analog output wiring ........ - Page 4 PROGRAMMING PARAMETERS ............. Measuring units ..............Decimals ................Filter ................9.3.1 Filter time .............. 9.3.2 Hysteresis ............. 9.3.3 Interference time ............. Outputs ................9.4.1 Analog output ............9.4.1.1 Programming output 4-20 mA ....9.4.1.2 Current calibration for 4 and 20 mA ..9.4.2 Alarm outputs ............
- Page 5 14.5.1 Level ..............14.5.2 Filter ..............14.5.3 Current loop ............14.5.4 Alarm outputs ............14.5.5 Current loop calibration .......... 14.6 Visualization ............... 14.7 Datalogger ................. 14.8 Firmware updates ............... 14.9 Configuration file ..............TECHNICAL CHARACTERISTICS ..........SAFETY INSTRUCTIONS ..............16.1 Certificate of conformity TR CU (EAC marking) .....
-
Page 6: Introduction
INTRODUCTION The series LU level transmitters are electronic equipment based on the transmission of ultrasonic waves to measure the distance to a liquid or solid in a vessel. The microprocessed electronic circuit offers the following features: Emission and reception circuits for the ultrasonic signals, and microprocessor treatment. -
Page 7: Storage Temperature
Storage temperatures Sensors of : PVDF -20ºC ..+60ºC -5ºC ..+50ºC INSTALLATION To make the instrument work in the best conditions, it is important that the bottom face of the sensor is installed parallel to the surface of the product to be measured. In the case of liquids, the face of the transducer should be horizontal. -
Page 8: Obstacles In The Vessel
Model Dead zone Max. distance (liquids) Max. distance (solids) LU912 0.3 m 2.5 m LU932 0.45 m 10 m In cases where it is necessary to measure distances shorter than the dead zone, a reflector can be installed as shown in the figure. The measured distance will be the addition of the real distance plus the distance between the transducer and the reflector. -
Page 9: Filling Entries
Filling entries It is not recommended to install the level transmitter in the upper zone of a filling entry, because the instrument could detect the level of the jet filling instead of the level of the stored product. Foams Some liquids generate foams when in movement. In vessels with agitators, or in the filling processes, important layers can be generated that weaken the reflected signal which is essential for measuring the level. -
Page 10: Electrical Connection
ELECTRICAL CONNECTION For the electrical connection, the LU level transmitter is provided of terminal strips. To help in the wiring of the equipment, the description of the terminals is marked next to each terminal strip. For the electrical installation it is recommended to use multiple conductor cables with individual cable sections in the order of 0.25 to 0.5 mm in order to make it easier to connect. -
Page 11: Alarm Outputs Wiring
NOTE: The analog output has protection against reversed polarity. Due to another protection against overvoltages, if a loop supply voltage with inverted polarity and higher than 32 V is connected, the equipment may be damaged. Alarm outputs wiring Terminal Source output 1 Drain output 1 Source output 2 Drain output 2... -
Page 12: Operation
OPERATION Without display module The instrument allows programming the current loop limits by means of the 4 mA and 20 mA keys. To do this, the top cover must be remove, previously releasing the DIN913 M3 x 8 safety screw. The procedure is the following: Point the equipment to a flat surface and place it at the distance corresponding to 4 mA. -
Page 13: Main Menu
In the following figure the operation of each key is described. (Down / Left) To change between operating screens. To decrease a digit or to move to the left digit. Inside the menus, to shift into the below element. (Up) change between display... -
Page 14: Access Codes To The Menus
The options "Serial Number" and "Firmware Version" are informative and are discussed in Chapters 10 and 11 of this manual. Finally, the option "Contrast" allows to adjust the contrast of the information on the screen, to adapt it to the ambient light of each installation. Access codes to the menus It is possible to program a different password for the “Installation”... - Page 15 Once entered, the new password is asked again to avoid possible inadvertent error. the re-entered password does not match the first one, the following error message appears and the process should be carried out again. If both passwords match, the following information message is displayed. If the password needs to be changed or disabled, the procedure is the same.
-
Page 16: Installation Parameters
INSTALLATION PARAMETERS Power on the electronic converter with the voltage indicated on the label. Press the (Enter) key in order to enter the main menu. With the keys (Down / Left) and (Up), select “Installation”, and then validate with the key (Enter). -
Page 17: Bottom Distance
8.1.1 Bottom distance The bottom distance is the distance between the transducer face and the bottom of the vessel. It allows to calculate el level with respect to that point. This parameter is necessary to visualize data in level mode or percentage mode, because the instrument takes this distance as a reference (see point 9.5 on page 26). -
Page 18: Dead Zone
The percentage of filling is calculated given the bottom distance and the top distance (see points 8.1.1 and 8.1.2 on page 17) , according to the following equation: di: bottom distance ds: top distance When the distance between the product and the sensor is “di”, the visualized percentage is Distance Bottom Distance... -
Page 19: Dead Zone Length
When programming this value, the no echo alarm is automatically programmed with the opposite value. 8.2.2 Dead zone length In some installations it may be convenient to increase the dead zone value. For example, in cases of vertical tube measurement. In this screen the dead zone distance in m can be programmed. -
Page 20: Operating Mode
In all cases the echo intensity is displayed by means of a value between 0 and 100. This intensity depends on the distance to the target, the type of product where the wave is reflected and the conditions of installation. If the distance of the product at the time of verification is longer than half the maximum measuring distance, it is normal that the intensity has a low value. -
Page 21: Measuring Units
Measurement units The instrument can indicate the measured distance or level in meters or feet. Decimals In this screen the desired number of decimals for the measured value is chosen. For the selection of the number of decimals it must be taken into account that an indication with an excess of decimals may give the sensation of instability of the reading. -
Page 22: Filter Time
9.3.1 Filter time By selecting a filter with a shorter or longer integration time, response to level variation will be obtained in more or less time. The filter time is selected in seconds, with a minimum value of 1 and a maximum value of 25 seconds. -
Page 23: Outputs
For example, if the time is set to 5 seconds, an object that interferes the ultrasonic wave path must remain 5 seconds so that the level transmitter takes this object into account. Outputs In this screen, one of the three outputs to be programmed can be selected: Analog (4-20 mA), Alarm 1 and Alarm 2 9.4.1 Analog output... -
Page 24: Current Calibration For 4 And 20 Ma
9.4.1.2 Current calibration for 4 and 20 mA The LU9X2 is delivered with the current output already calibrated. If you want to correct a derive of the 4 or 20 mA current values because they do not coincide with the ammeter used, it can be done by entering the ammeter value and pressing the key (Enter). - Page 25 Example 1 Suppose we work in level mode. If the output is programmed to activate at 1 m and to deactivate at 0.9 m, when the level is zero the output will be deactivated. When the level reaches a value of 1 m the output will be activated and it will not return to deactivated state until the level falls below 0.9 m.
-
Page 26: Dead Zone
Deactivate 0.9 m Activate 9.4.2.2 Dead zone The alarm will activate when the instrument detects dead zone. It is available for Alarm 1. 9.4.2.3 No echo The alarm will activate when the instrument does not detect any echo. It is available for Alarm 2. -
Page 27: Serial Number
Distance. In this case the screen shows the distance between the sensor and the surface where the ultrasonic wave is reflected. Level. In this case the screen shows the level or height from a reference, normally the bottom of the tank, to the liquid or solid surface. To display correctly the level, the parameter “Bottom distance”... -
Page 28: Firmware Version
FIRMWARE VERSION From the main menu, if “Firmware version” is selected, the screen will show this data and the corresponding date. CONTRAST By means of this option, the screen contrast can be adjusted. OPERATION SCREEN When exiting the menu, the display shows the operation screen. To scroll between the three operating screens, simply press the key (Up). -
Page 29: Indication Of Echo In Dead Zone
13.1 indication of echo in dead zone In the case that the distance is shorter than the minimum measuring distance, that is, when the product is within the dead zone (see point 4.1 on page 7), the transmitter cannot measure a correct value. In this situation the instrument replaces the display value with the text "Dead Zone". -
Page 30: Associated Software Winsmeter Lu
ASSOCIATED SOFTWARE WINSMETER LU By means of this associated software, calibration and adjustment of the instrument can be done in a comfortable and intuitive way. Such software can be downloaded from the “Downloads” section of the Tecfluid S.A. www.tecfluid.com/downloads 14.1 USB cable connection and software installation Extract the files from the Winsmeter LU.zip to a new system folder. -
Page 31: Port Connection
Connect the USB cable at one end to the converter and at the other to the computer where the software is installed. Power on the electronic converter. Execute the program WinsmeterLU following the sequence Start – Programs – Tecfluid S.A. - WinsmeterLU. -
Page 32: Password
Once the port is open, the button "Lock" is activated. 14.3 Password The LU9X2 level transmitter can be locked so that programming data can be modified only with previous password access. When the converter is locked, data can be read but not modified. By default the device is unlocked. - Page 33 Once the “Lock” button is pressed, the following window will appear: In the “Password” textbox a 4 numeric digit code should be entered, and in the “Confirm” textbox, the code is confirmed to avoid unintentional errors. Once the password is confirmed, press the “Lock” button and the section (“Installation” or “Programming”) will be locked.
- Page 34 After accessing back to the port and pressing the “Open” button, the screen shows the textbox to enter or change the locked passwords.
-
Page 35: Access To "Installation
To unlock the section it is necessary to write the correct password and press “Enter” or the “Open” button. The text “Installation enabled” or “Programming enabled” will appear at the bottom of the section Once a section is enabled, pressing the corresponding button “Unlock”, the section will be unlocked. -
Page 36: Acces To "Programming
To transfer the data to the instrument, press the “Send” button. The message "Saving program" will appear in the level transmitter for two seconds. The installation data will be saved in the internal memory. 14.5 Access to “Programming” To enter the “Programming” window, simply press the corresponding tab. Changing the parameters in this screen, the different functions of the equipment can be programmed. -
Page 37: Current Loop
14.5.3 Current loop In this section the Distance or level values for 4 mA and 20 mA can be configured. These values correspond to the current range limits. Therefore, the current loop will give a linear signal between 4 mA and 20 mA when the input signal has a value between the programmed values in these textboxes. -
Page 38: Datalogger
It is an intuitive tool to verify that the instrument has been installed and programmed correctly. 14.7 Datalogger In this window the progress of the different variables of the equipment can be registered in a file. The time between samples, as well as the start and end time of the registry can be selected. When the "Register"... -
Page 39: Firmware Updates
The created file has CSV format, which can be viewed directly with a spreadsheet. 14.8 Firmware updates New firmware updates can be published in the website. These updates contain improvements or bug fixes that make that the equipment operates at best conditions. The updates can be downloaded from the following link at Tecfluid S.A. -
Page 40: Configuration File
14.9 Configuration file A device configuration backup can be made by saving data into a file. To do this, go to menu “File” - “Save file”. The file is saved in the same folder where the Winsmeter LU software is located. In the same way, a configuration data file can be loaded into the device. -
Page 41: Technical Characteristics
TECHNICAL CHARACTERISTICS Materials Sensor: PP, PVDF Housing body: Coated aluminium Housing cover: Without display: Coated aluminium With display: Transparent polycarbonate UV resistant Process connection LU912: Thread G2 (BSP), LU932: Thread G2 ½ (BSP). Measuring range LU912: 0,3 m … 5 m (solids up to 2.5 m) LU932: 0,5 m …... -
Page 42: Certificate Of Conformity Tr Cu (Eac Marking)
The declarations UE of conformity can be downloaded from the section “Download” of the Tecfluid S.A. website. www.tecfluid.com 16.1 Certificate of conformity TR CU (EAC marking) Tecfluid S.A. have subjected the series LU of level transmitters to a certification procedure according to the technical regulations of the Customs Union of the Eurasian Economic Union (EEU). -
Page 43: Dimensions
DIMENSIONS LU912 LU932... - Page 44 WARRANTY Tecfluid S.A. guarantee all the products for a period of 24 months from their sale, against all faulty materials, manufacturing or performance. This warranty does not cover failures which might be imputed to misuse, use in an application different to that specified in the order, the result of service or modification carried out by personnel not authorized by Tecfluid S.A., wrong handling or accident.
