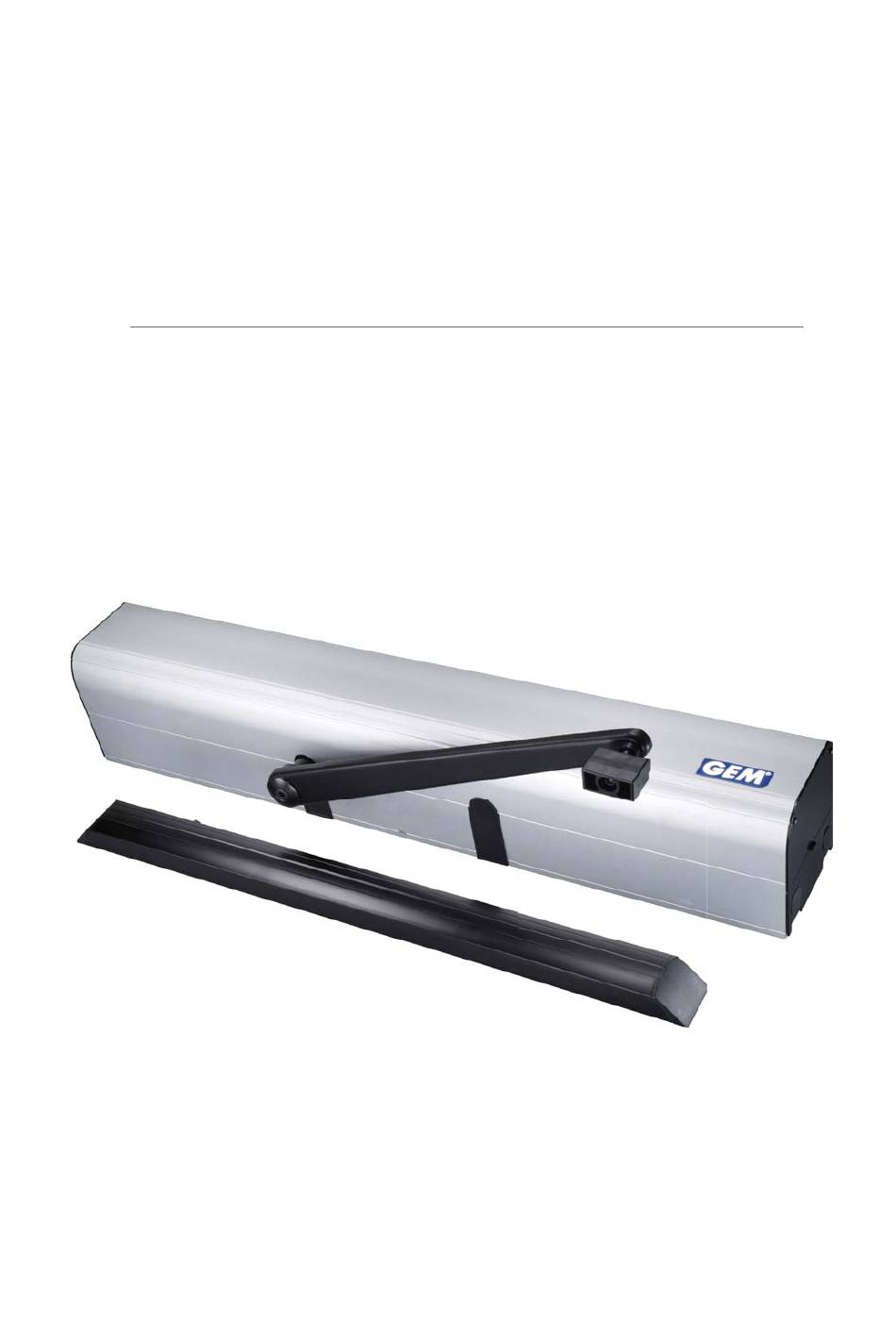

- Page 1 AD5 00 Aut omatic D o or O p era t or I n st ruct i on M a nu al...
-
Page 2: Table Of Contents
General Safety Precautions ------------------------------------------- Declaration by Manufacturer ------------------------------------------- Introduction --------------------------------------------------------------- Product Features -------------------------------------------------------- Part Identification -------------------------------------------------------- Specifications ------------------------------------------------------------- How the AD500 Works -------------------------------------------------- Pre-Installation ----------------------------------------------------------- Template Instructions --------------------------------------------------- Installation (Video Instructions) --------------------------------------- Trouble Shooting --------------------------------------------------------- Maintenance --------------------------------------------------------------- Safety Instructions for Users... -
Page 3: General Safety Precautions
Do not install this unit in a chemical explosive environment or atmosphere. Make sure the existing structure is up to standard. GEM is not responsible for any damage resulting from incorrect use of this unit. -
Page 4: Introduction
Introduction The AD500 is a swing door operator for a wide range of applications. It can be mounted on either side of the door header for pull or push action, and suitable for single or double, inward or outward opening, left or right handed doors. -
Page 5: Specifications
Automatic Door Operator Manual Specifications 100-240V AC +10/-15%, 50/60 Hz Operating Voltage Current Draw 3.2A max 77 W., 0.21 - 0.45 A average Voltage: 60 VDC Maximum current: 2A Motor Specs Power consumption: 98W Maximum rotation frequency: 2900RPM Maximum Torque Output 40NM Variable between 5 - 8 seconds Opening Time (0°... -
Page 6: How The Ad500 Works
Manual How the AD500 Works The AD500 automatic door operator uses a DC motor to open the door. It closes the door by motor and spring force. When an opening signal is received by the control unit, the door is opened at the operator-adjusted opening speed until it reaches the back check position, where it decelerates to slow speed. - Page 7 Automatic Door Operator Manual Control Unit Note: 1. Make sure that the wire length for backup DC Power battery is less than 30mm. 2. Battery cannot not be connected to the uninterruptible power supply system for the building. SVR 1 Back Check / Latch Check Angle SVR 2 Relay...
- Page 8 Automatic Door Operator Manual Functions on the Control Unit (see also page 5) Function Description Diagram Auto/ Push & Hold Activation Operator opens the door when Manual Open receiving an activation signal Automatic Mode and closes the door automatically. (Locked status) *Default setting: Automatic mode Auto/ Push &...
- Page 9 Automatic Door Operator Manual Functions on the Control Unit (see also page 5) (Continued) Function Description Diagram Auto/ Push & Hold Activation Manual Open Activation Input 1 (ON status) Operator is activated by Activation Device 1. Auto/ Push & Hold Activation Manual Open...
- Page 10 Automatic Door Operator Manual Functions on the Control Unit (DIP Switch Settings) (see also page 5) ON/OFF Position Instructions Changing operation mode Automatic Mode Manual Mode 1 2 3 4 Push & Go 1 2 3 4 Automatic Mode Adjusting hold open time Position 3 ON Hold open 3 secs 1 2 3 4...
-
Page 11: Pre-Installation
3. Make sure that the door leaf is properly reinforced at the installation points. 4.Consider all power wire entry locations and signaling wires before preparing for installation. Door/Operator Handing Confirm handing of door before installing the AD500 assembly . See the illustrations below for proper operator position. Left hand... - Page 12 Automatic Door Operator Manual Tools Required Allen Wrench Spanner Phillips Metal Masonry Torx Flathead Hammer Center (5mm x1) Power Drill Wrench Driver Driver Drill Bit Drill Bit Punch (6mm x1) (9.5mm) (5mm) Drill Bit Installing the Track Block Installation Diagram Use the track block to adjust the opening angle if necessary.
-
Page 13: Template Instructions
Automatic Door Operator Manual Template Instructions Note: The distance from top of door to bottom mounting hole is 2 1/2" (64mm) For Inswing Doors when installing on inswing doors. 5 1/2” (139mm) 5 1/2” (139mm) 4 9/16” (116.5mm) 4 9/16” (116.5mm) 4 1/4”... -
Page 14: Installation (Video Instructions)
Automatic Door Operator Manual Installation (Video Instructions) For easy to follow installation instructions, please visit our website for installation video at http://www.gianni.com.tw/AutomaticDoorOperator_AD500.html Trouble Shooting Problem Possible Cause Solution Make sure that all motor terminals are connected properly. Terminal Motor has no power. Block (LED motor light is off) Relay... -
Page 15: Maintenance
Remove the moving object. Data in the encoder is Contact your local distributor. incorrect. The AD500 stops operating The AD500 returns to operation after 10 automatically if door opening The door seconds. is obstructed repeatedly for automatically stops three times. -
Page 16: Safety Instructions For Users
Do not use with the other door closer. Do not put any obstacle in the door path when operating. Do not allow children to play with the AD500. Keep remote control or any other control devices out reach of children to avoid an unexpected accident. - Page 17 AD 500 Au t o mati c D o or O p era to r I n s tr u cti o n Ma nu a l Copyright © All Rights Reserved. P-MU-AD500 Published: 2019.12.07...
