LUMENWERX MEDIUS Installation Instructions

MEDIUS

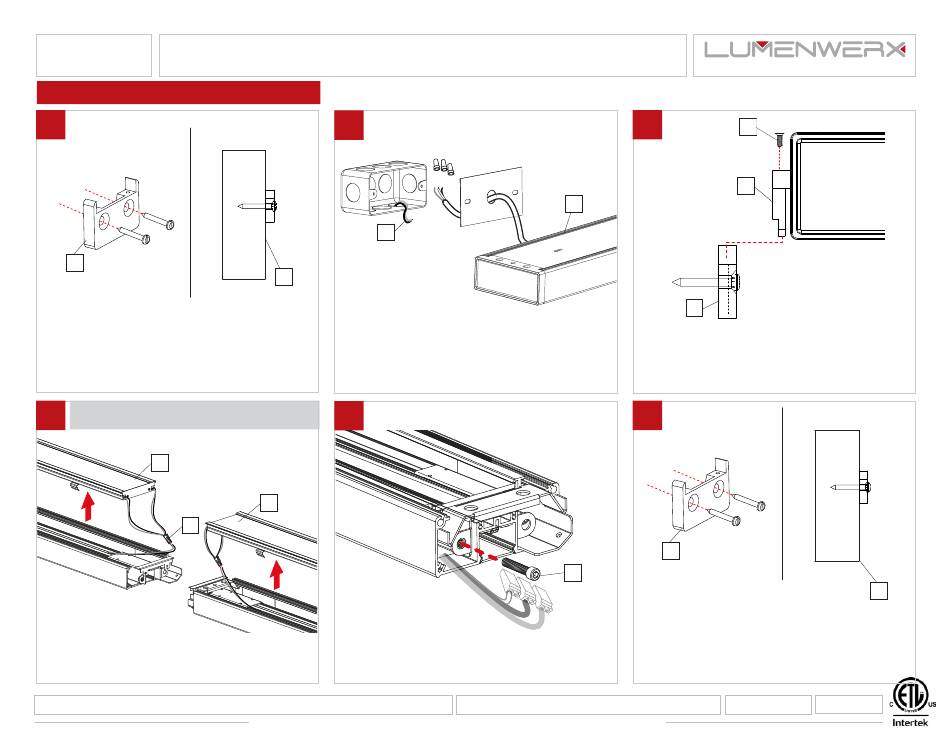

DIRECT/INDIRECT WALL MOUNT - INSTALLATION INSTRUCTIONS
NOTE: Wire dimming conductors as Class 1
1
A
SIDE VIEW
Locate wall bracket position using provided client
drawing. Install mounting brackets (A) to wall.
Align with structural stud (need double studs –
distance between screws is 1.250") or use metal
anchors with min. length 1.250". Flat head Philips
drive screw, nominal size #10, min. length 1.250".
4
CONTINUOUS SYSTEM
F
G
Remove the top cartridges (F) by pulling them up
and disconnect the quick connectors (G). Keep the
cartridges (F) in a safe place.
www.lumenwerx.com (T) 514-225-4304 (F) 514-931-4862 © All rights are reserved to LumenWerx ULC.
2
C
A
Make electrical connection between fixture (B)
and wall power cable (C).
5
F
Remove the screws (H) on the joiner and put
them in a safe place.
LumenWerx ULC. reserves the right to change or modify product specifications without notification
3
B
Insert fixture bracket (D) into wall bracket (A) and
secure it in place with supplied screw (E).
6
H
Locate wall bracket position using provided client
drawing. Install mounting brackets (A) to wall.
Align with structural stud (need double studs –
distance between screws is 1.250") or use metal
anchors with min. length 1.250". Flat head Philips
drive screw, nominal size #10, min. length 1.250".
FILE NAME:MEDIUS-DIRECT-INDIRECT-WALL-MOUNT-INST
W W W . L U M E N W E R X . C O M
E
D
A
A
SIDE VIEW
November 12, 2019 Page: 1 / 2
