Summary of Contents for Ingco HLDD0601

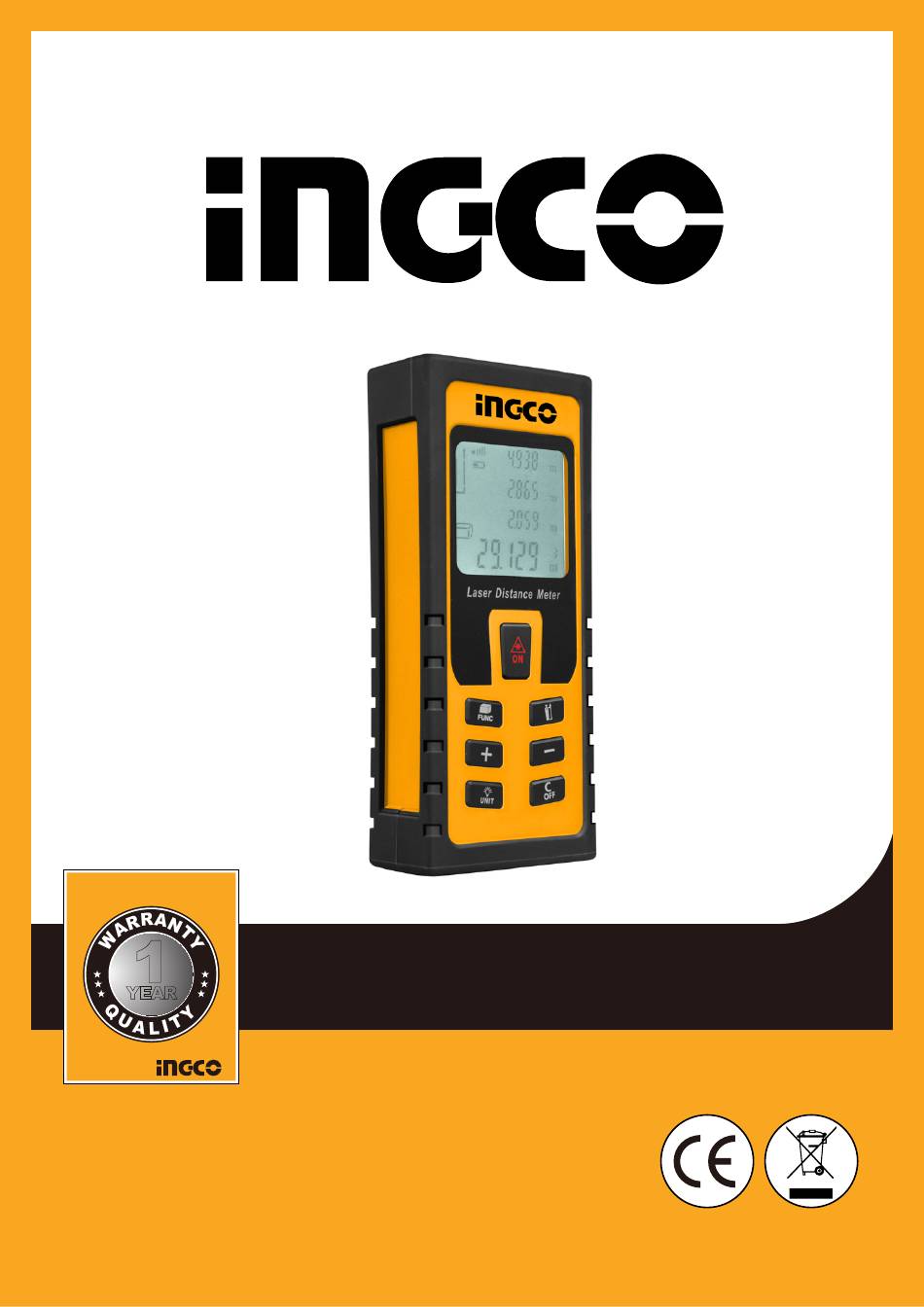

- Page 1 QUALITY Laser Distance Meter HLDD0601 YEAR produced & marketed Laser Distance Meter...
- Page 2 English Page 3...
- Page 3 3|English Technical Parameters: Technical Specifications Measuring accuracy typically ±1.5mm Standard deviation) 0.05-60m Range Laser type 620-690nm, < 1mW,class2 Distance in m laser spot in mm 10,50m, 6,30mm Ø Measurements per battery set up to 5000 0.000m.0'00",ft,in Distance unit -10~+50°c Operating Temperature -20~+65°c Storage Temperature Minimum and maximum measurements...
- Page 4 4|English LCD icon indication keypad functions 1 LASER"ON" 12 POWER ON/ MEASURING-KEY 2 REFERENCE 13 AREA/VOLUME/PYTHAGORAS -KEY 3 STAKE OUT FUNCTION 14 PLUS[+]-KEY 4 HISTORICAL READINGS 15 BACK LIGHT/UNIT- KEY 5 AREA/AREA SUMMATION/ VOLUME/PYTHAGORAS 16 REFERENCE-KEY 17 MINUS[-]-KEY 6 SIGNAL POWER INDICATION 18 CLEAR/OFF-KEY 7 BATTERY STATUS 8 HARDWARE ERROR...
- Page 5 5|English Start-up 1. Battery Installation a. According to fgures, remove battery compartment lid with specified battery key b. Insert batteries with correct polarity according to battery lid indications c.Close the battery compartment lid and skew tight with the battery compartment key *Caution: 1.
- Page 6 6|English Long-time press C/ button to switch off the equipment; the laser will be switched off automatically after 30 seconds and the equipment will be powered off after 3 minutes of inactivity; Clear Button Pressing C/ button to clear the last command or displayed data by lines;...
- Page 7 7|English Measurement Single-mode Measurement button will activate When equipment is switched on,pressing the laser and aim the laser onto target and pressing button again will trigger single-mode measurement, the resuit is will results displayed immediately as shown in figure E. Continuous-mode Measurement When the equipment is switched on, long-lime pressing button...
- Page 8 8|English Measurement Functions Icons Measurement Sequence Single-mode Measurement Area Measurement Volume Measurement Area Summation Function Height Measurement 1 Height Measurement 2 Addition and Subtractio Functions + The current measurement result is added to the previous one - The current measurement result is subtracted from the previous one, as shown in figure H Storage and Recall of Measurement Results...
- Page 9 9|English Appendixes Message Code Cause Remedy Message Code Change batteries Battery too low Calculation error Repeat procedure Temperature too high Cool down equipment Temperature too low Warm up equipment Please measure target within Out of range distance of 0.05 to 60m Received signal too weak Use target plant Received signal too strong...
- Page 10 10|English Warranty We guarantee TWO-year warranty. More information can be found at local dealer. All illustrations,description and technical specifications may be sublect to change whitout prior notice. Technical parameters of the product abide by the (GB/T 14267-2009) of the P.R.C.National Standard...
- Page 11 Laser Distance Meter INGCO TOOLS CO.,LIMITED www.ingcotools.com MADE IN CHINA 0413.V01...
