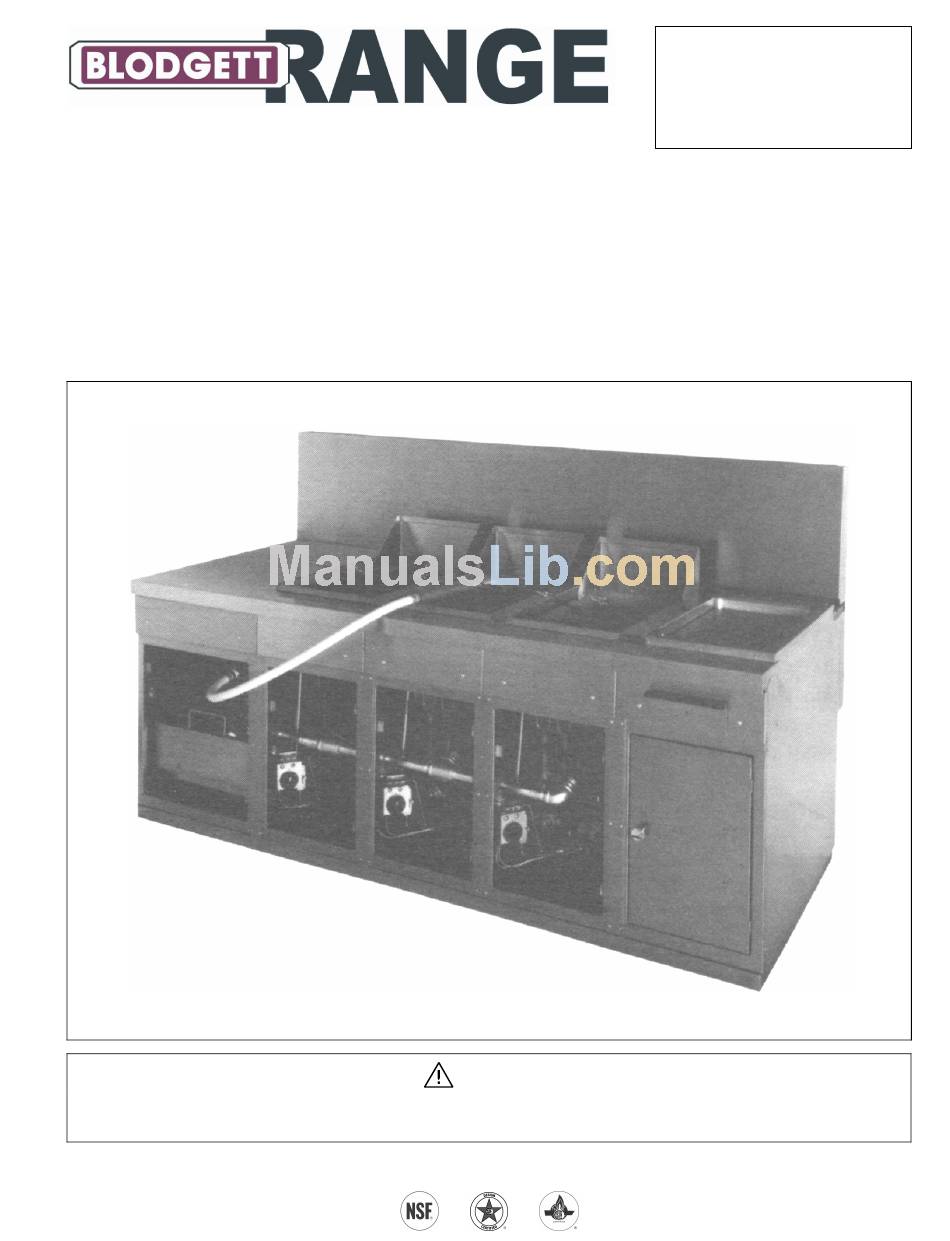

Owner's Manual

Sectional Fryer Filter System

Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death.

Read installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526 USA • www.blodgettrange.com

1184960

ANUAL

$18.00

Model B24C-FF

WARNING

IMPORTANT FOR FUTURE REFERENCE

Please complete this information and retain

this manual for the life of the equipment:

Model #: __________________________

Serial #: __________________________

Date Purchased: ___________________

ECTIONAL

RYER

ILTER

ANUAL

ECTION

YSTEM

Table of Contents

Need help?

Do you have a question about the B24C-FF and is the answer not in the manual?

Questions and answers

Summary of Contents for Blodgett B24C-FF

Page 1 Read installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment. 1100 Old Honeycutt Road, Fuquay-Varina, NC 27526 USA • www.blodgettrange.com 1184960 ANUAL $18.00 Model B24C-FF WARNING IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain this manual for the life of the equipment:...
Page 2: Safety Precautions
Blodgett Range replacement parts are installed. Give this Owner’s Manual and important papers to the proper authority to retain for future reference. Copyright © 2002 by Blodgett Range. All rights reserved. Published in the United States of America. WARNING FIRE HAZARD...
Page 3 Congratulations! You have purchased one of the finest pieces of heavy-duty commercial cooking equipment on the market. You will find that your new equipment, like all Blodgett Range equipment, has been designed and manufactured to meet the toughest standards in the industry. Each piece of Blodgett Range equipment is carefully engineered and designs are verified through laboratory tests and field installations.
Page 4: Specifications
Therefore, installations should comply with all local codes. Blodgett Range reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, additions, or replacements for previously purchased equipment.
Page 5 ECTIONAL RYER ILTER YSTEM UPPLY The Sectional Fryer Filter System does not use any gas, but it does have a 1-1/4" front gas manifold the couples to the adjacent sectional unit(s). LECTRICITY UPPLY The Sectional Fryer Filter System requires electric power (50Hz or 60Hz single-phase AC). 120V models draw a maximum of 6.5 amps, and have a 7-foot (2134 mm) power cord with a grounded plug.
Page 6: Operation
PERATION PERATION In the event a gas odor is detected, shut down equipment at the main shut off valve. Immediately call the emergency phone number of your gas supplier. CONTACT WITH HOT OIL WILL CAUSE SEVERE BURNS. ALWAYS USE CAUTION. OIL AT 200°F IS MORE DANGEROUS THAN BOILING WATER.
Page 7 ECTIONAL RYER ILTER YSTEM Figure 4 Fryer Filter System Components Filter-Pan Hose Quick Disconnect Stainless Steel Hose Filter Pan Filter-Paper Hold-Down Rack with Latches ILTERING RYER The oil of deep fryers should be filtered regularly to promote longer oil life. 1.
Page 8 Failure to make sure that the thermostat is in the OFF position during the following procedure may result in equipment damage and/or personal injury. 4. Stir 8 ounces of Blodgett Range filter powder into the oil of the fryer. The filter powder helps extend oil life by removing impurities.
Page 9 19. Fill the frypot with water to the oil-level mark located on the back of the frypot interior. 20. Carefully add Blodgett Range Boil Out to the water following the directions on the container. 21. Set the fryer’s thermostat to 200°F.
Page 10: Cleaning And Maintenance
LEANING THE ILTER The filter pan should be thoroughly cleaned as needed. Use only Blodgett Range Cleanser or a cleanser such as Ajax or Comet to clean the interior surfaces and components of the filter pan. LIQUID DISHWASHING DETERGENTS MAY LEAVE RESIDUES WHICH REDUCE OIL LIFE. The cleaning procedure is as follows: 1.
Page 11: Cleaning Stainless -Steel Surfaces
ECTIONAL RYER ILTER YSTEM 3. If necessary, allow the filter pan to cool. 4. Remove the drain-pipe nipple from the end of the drain-pipe outlet. (The drain-pipe nipple minimizes the splashing of hot oil when a frypot is drained into the filter pan.) 5.
Page 12: Installation
NSTALLATION NSTALLATION These installation procedures must be followed by qualified personnel or warranty will be void. Local codes regarding installation vary greatly from one area to another. The National Fire Protection Association, Inc. states in its NFPA 96 latest edition that local codes are the “authority having jurisdiction” when it comes to installation requirements for equipment.
Page 13 ECTIONAL RYER ILTER YSTEM TTACH ASTERS For an appliance equipped with casters, (1) the installation shall be made with a connector that complies with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or Connectors for Moveable Gas Appliances, CAN/CGA-6.16, and a quick-disconnect device that complies with the Standard for Quick-Disconnect Devices for Use With Gas Fuel, ANSI Z21.41, or Quick Disconnect Devices for Use with Gas Fuel, CAN1-6.9, (2) adequate means must be provided to limit the movement of the appliance without depending on the connector and the...
Page 14: Step 6: Check Operation
NSTALLATION 4. Check that the filter cabinet is level. 5. Check that the internal oil drain piping is correctly connected a drains into the drain pan in the filter cabinet. 6. Check that the appropriate minimum clearances are satisfied (see page 4). 7.
Page 15 RELIABLE SERVICE, DEPENDABLE ADVICE OR OTHER ASSISTANCE, AND FOR GENUINE FACTORY PARTS. INSTALLATION OF OTHER THAN GENUINE BLODGETT RANGE PARTS WILL VOID THE WARRANTY ON THIS EQUIPMENT. The serial plate is located inside the cabinet door (see Figure 1 on page 3).
Page 16: Wiring Diagram
Wiring Diagram ARTS Replacement parts (including parts not listed in this manual) may be ordered either through a Blodgett Range Authorized Parts Distributor or a Blodgett Range Authorized Service Agency. When ordering parts, please supply the Model Number, Serial Number, Part Number, and Part Description.
Page 17 ECTIONAL RYER ILTER YSTEM Notes: ’ 1184960 WNER ANUAL...
Page 18 ECTIONAL RYER ILTER YSTEM Notes: ’ 1184960 WNER ANUAL...
Page 19 ECTIONAL RYER ILTER YSTEM Notes: ’ 1184960 WNER ANUAL...
Page 20 When service is needed, contact a Blodgett Range Authorized Service Agency, or your dealer. To avoid confusion, always refer to the model number, serial number, and type of your appliance.
