Summary of Contents for StageRight Sonata Music Shell

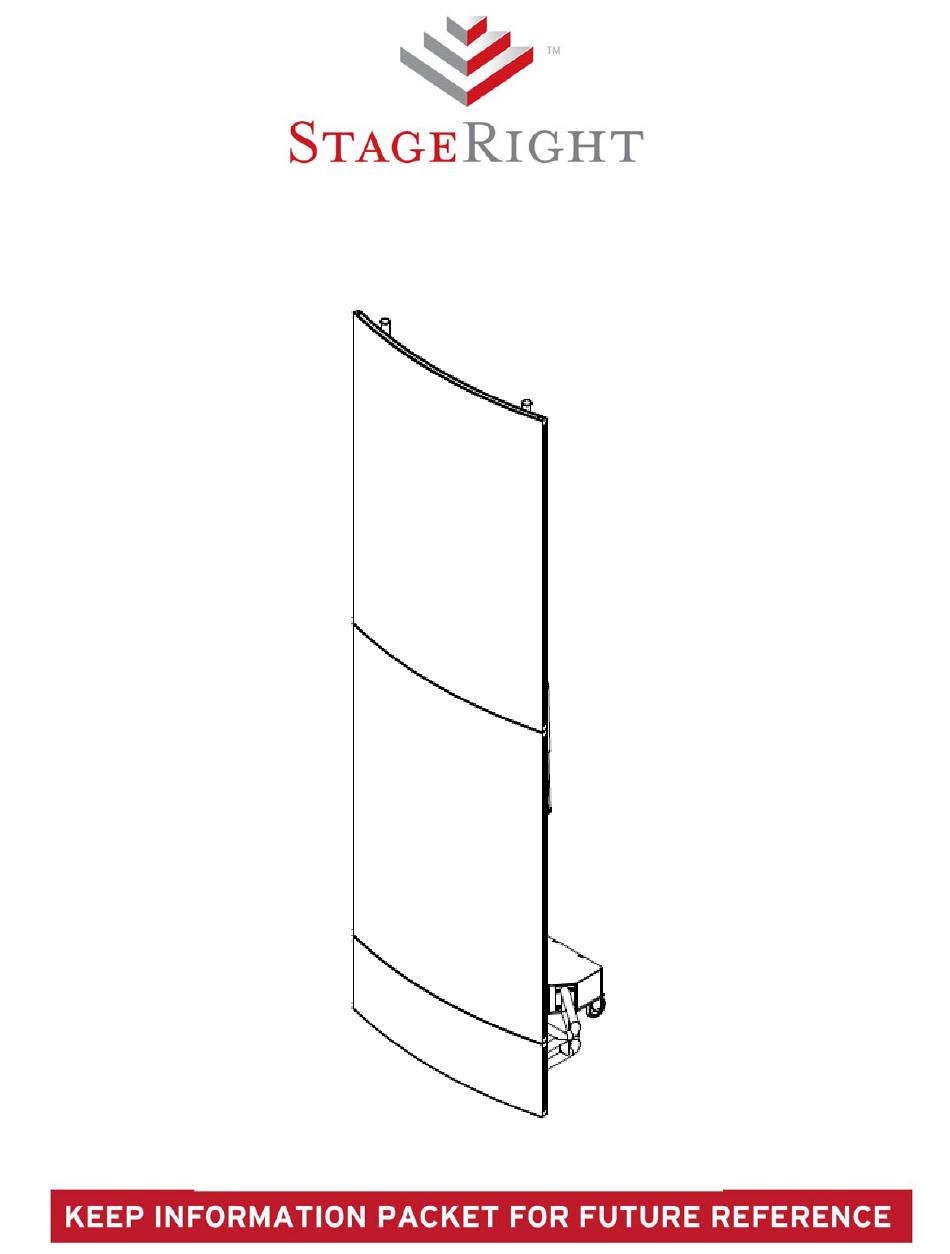

- Page 1 PRODUCT INFORMATION PACKET PRODUCT NAME: Sonata Music Shell™...
-
Page 2: Table Of Contents
Careful study of this manual is encouraged to obtain a thorough understanding of your new Music Shell and its functions and maintenance. If your manual becomes lost or destroyed, StageRight will gladly provide you with a new copy. Should you require additional information or assistance, please feel free to contact us at 1-800-438-4499. -
Page 3: General Safety Rules
General Safety Rules WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in serious personal injury. SAVE THESE INSTRUCTIONS Stay clear of all pinch points. Make sure that all fasteners are properly engaged before use. ... -
Page 4: Symbols
Symbols Safety Alert: Precautions that involve your safety Read The Operator’s Manual: To reduce risk of injury, user must read and understand operator’s manual before using this product... -
Page 5: Technical Specifications
StageRight Corporation Technical Specifications Sonata Music Shell Moveable tower reflects a maximum range of audible frequencies Self-standing with counter- weighted nesting base Construction, Finish, and Hardware - Constructed of ASTM specified steel or aluminum - Baked-on powder coat finish. - Zinc-plated hardware... -
Page 6: Instructions
Assembly Instructions Truss Panel FLUSH Begin work on a clean, flat surface. Lay lower truss sections on panel. Attach Use cardboard to prevent scratching truss with 8- 3/8X 3/4” bolts, 3/8 washers and the surface of the panels. Lay the two 2"... -
Page 7: Maintenance
Attach counterweight box to lower Install 4- gas springs to connect truss sections using 8- 3/8 x 1” bolts upper and lower truss. Fasten with 8- and 3/8” nuts. 5/16” lock nuts. Locking Non-locking Locking bracket Locking Install handle pivot and lock bracket using 8-1/4 x 1.75”... - Page 8 Lift the shell up onto the casters. Lock the front casters to prevent sliding. It may also be necessary to block the wheels. Use two people to walk the unit up and one person to Close the shell. Use two people to close the upper panel and one person steady the base.
- Page 9 Shelf Install clips for hanging lower panel Install shelf using 2- 3/8 x 3.25” bolts using 4- #10 self-drilling screws. and 3/8” nuts. Make certain all bolts and fasteners are Operate unit to verify all parts are tightened on unit. functioning correctly.
- Page 10 Operation Instructions Locking casters Move unit into place and lock the front Raise the upper panel into position. The gas casters. springs will do most of the work Locking pin Locking bracket Release button To release handle lock, press the release button allowing the locking pin to swing free When unit is in operation, ensure that the of the locking bracket.
- Page 11 Filler panel To install the filler panel, remove it from the storage location and place it on the panel clips.
- Page 12 Customer Service For parts or service contact StageRight Corporation. When ordering parts be sure to provide all relevant information available including the name and part number of the equipment purchased. This information is located on the technical specification page of this product information package. Customer Service hours are Monday thru Friday from 8:00 a.m.
