ei3 Amphion S14-H Green Box Quick Start Manual

Quick Start Guide
Amphion S14-H
Green Box
Start Here:
Welcome! The ei Amphion device is a
3
reliably secure module that provides a
private encrypted connection to the ei 3
cloud. In the following steps you will learn
how to install an Amphion S14-H green box.
Amphion Placement:
Install the Amphion in a dry location
between 32 to 122 °F (0 to 50 °C) for
optimal performance.
Ensure that the Amphion can easily be
provided an ethernet cable with access to
the internet.
Every Amphion has a DIN clip at the back to
make it easy to mount onto DIN rails.
Power the Amphion:
Connect to a machine power source. Do not remove power
before boot-up has completed. Boot-up may take up to 2
minutes. Boot-up has completed when the Normal Boot
pattern is displayed on the LEDs. See back for LED details.

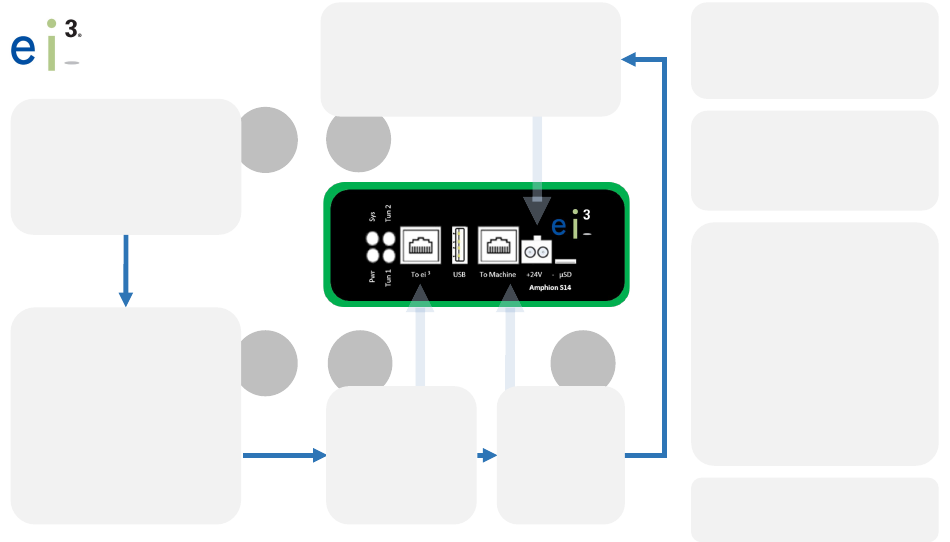

5
1
2 3
Connect to the Internet:
Plug an Ethernet cable
from this port to a router
with access to the
internet.
4
Connect to the
Red Boxes:
Plug an Ethernet cable
from this port to a
switch connected to
the Amphion A14-N or
S14-N red boxes.
Amphion S14 Specifications:
Power: Regulated 24V 10W DC
Min Temp: 0 °C / 32 °F
Max Temp: 50 °C / 122 °F
Amphion must be stored in a cool, dry environment.
Network:
Default Shop LAN IP: 192.168.100.10
For setting up custom Shop LANs, refer to your
configuration sheet.
Outbound-only VPN connection requires TCP ports
443 and 80.
IMPORTANT NOTES:
See the other side of this document for details on
the LED lights, configuration process, labeling, and
grounding instructions. If you have a poor internet
connection, the Amphion configuration and boot
processes may take longer than the estimate times.
Warranty of this product does not cover damage
due to external causes, including but not limited to:
accident, abuse, misuse, problems with electrical
power, servicing not authorized by ei 3 , and usage
not in accordance with product instructions.
Software within this Amphion device is copyrighted
by, and the confidential intellectual property of
Corporation. It is subject to ei 3 terms and
conditions, and applicable laws and regulations. It
may only be used with the ei 3 managed secure
network, by approval of ei .
3
Need help? Contact us.
Phone: +1 201-802-9080
Email: CARE@ei3.com
