WARNING
Risk of Fire/Electric Shock
If not Qualified, Consult an
Electrician
IMPORTANT - PLEASE READ
To Mount the Unit:
Step 1. Locate the studs in the back of the housing and using the brackets and hardware provided, secure them in place.
Proceed to mount the unit (hardware by other depending on the application). - Figure 1
Step 2. Disengage the latches and remove the lens. - Figure 2
Step 3. Compress gear tray latches in order to release the gear tray from the housing. The lanyards installed will hold it during
the installation. - Figures 3 & 4
Figure 1
Figure 3
B
WARNING
Risk Electric Shock.
Disconnect power at fuse
or circuit breaker before
installing or servicing.
1121 Highway 74 South • Peachtree City, GA 30269 • 770.486.4800

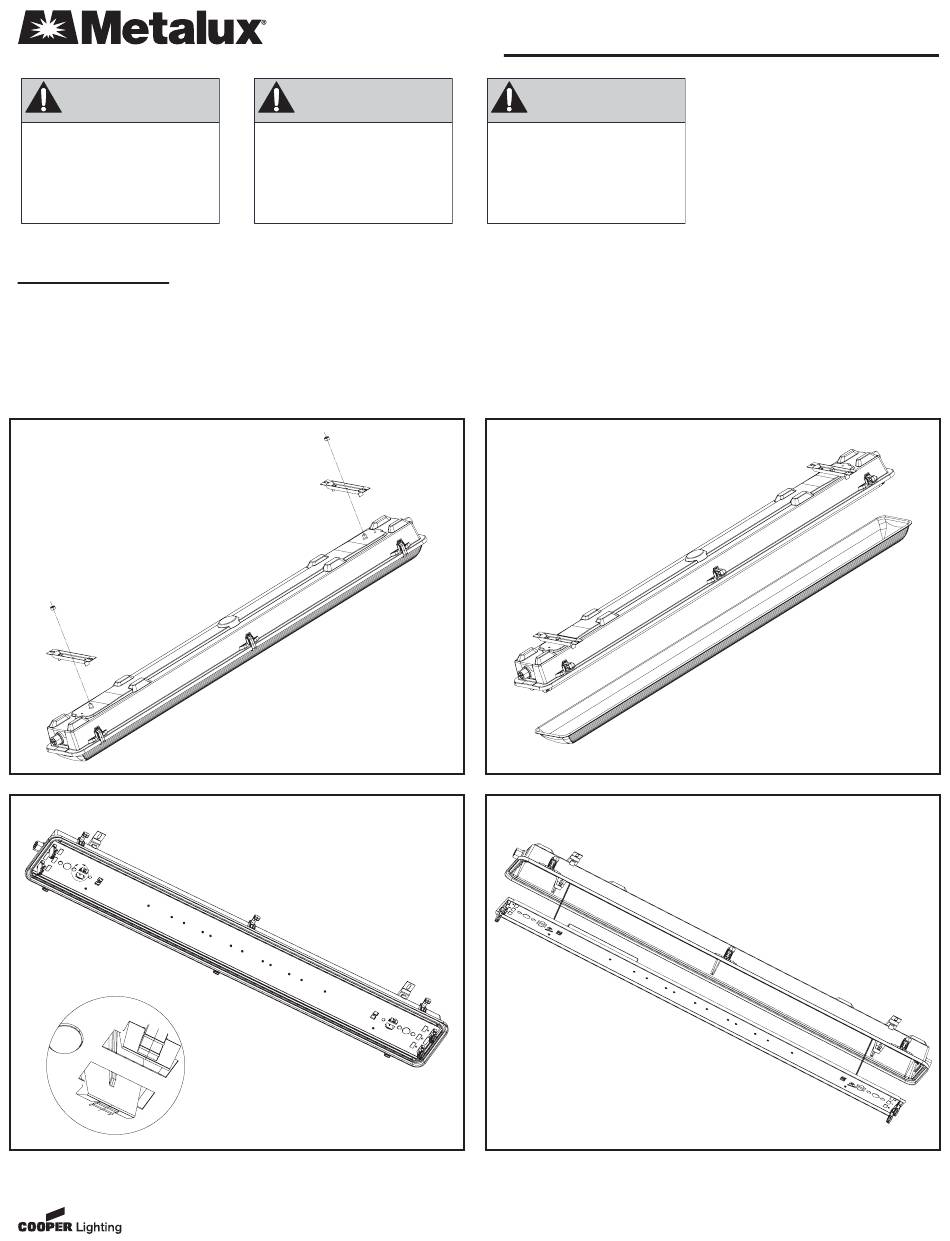

VT3 Installation Instructions
WARNING
Edges May Cut.
Handle with care.
Figure 2
Figure 4
ADF071638
0590-VT3
Advertisement
Table of Contents
Related Manuals for Metalux VT3
Summary of Contents for Metalux VT3
- Page 1 VT3 Installation Instructions WARNING WARNING WARNING Risk of Fire/Electric Shock Risk Electric Shock. Edges May Cut. If not Qualified, Consult an Disconnect power at fuse Handle with care. Electrician or circuit breaker before installing or servicing. IMPORTANT - PLEASE READ To Mount the Unit: Step 1.
- Page 2 VT3 Installation Instructions Step 4. Locate the conduit hubs included in the parts bag and install them on each end of the unit. Perform the electrical installation according to code. Make provisions for the power supply to have additional 12” of wire to ease maintenance.
