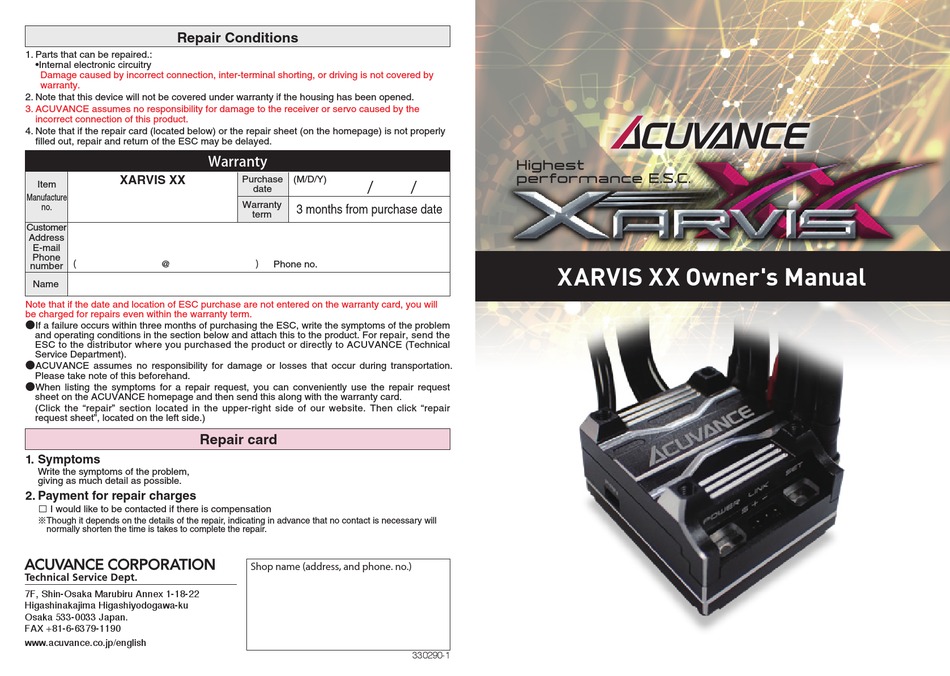

Repair Conditions
1. Parts that can be repaired.:
•Internal electronic circuitry
Damage caused by incorrect connection, inter-terminal shorting, or driving is not covered by
warranty.
2. Note that this device will not be covered under warranty if the housing has been opened.
3. ACUVANCE assumes no responsibility for damage to the receiver or servo caused by the
incorrect connection of this product.
4. Note that if the repair card (located below) or the repair sheet (on the homepage) is not properly
filled out, repair and return of the ESC may be delayed.

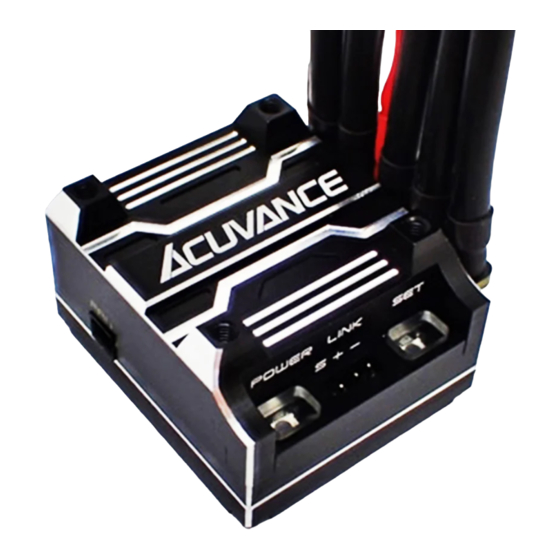

XARVIS XX
Item
Manufacture
no.
Customer
Address
E-mail
Phone
(
@
number
Name
Note that if the date and location of ESC purchase are not entered on the warranty card, you will
be charged for repairs even within the warranty term.
● If a failure occurs within three months of purchasing the ESC, write the symptoms of the problem
and operating conditions in the section below and attach this to the product. For repair, send the
ESC to the distributor where you purchased the product or directly to ACUVANCE (Technical
Service Department).
● ACUVANCE assumes no responsibility for damage or losses that occur during transportation.
Please take note of this beforehand.
● When listing the symptoms for a repair request, you can conveniently use the repair request
sheet on the ACUVANCE homepage and then send this along with the warranty card.
(Click the "repair" section located in the upper-right side of our website. Then click "repair
request sheet", located on the left side.)
Repair card
1. Symptoms
Write the symptoms of the problem,
giving as much detail as possible.
2. Payment for repair charges
I would like to be contacted if there is compensation
※Though it depends on the details of the repair, indicating in advance that no contact is necessary will
normally shorten the time is takes to complete the repair.
Technical Service Dept.
7F, Shin-Osaka Marubiru Annex 1-18-22
Higashinakajima Higashiyodogawa-ku
Osaka 533-0033 Japan.
FAX +81-6-6379-1190
www.acuvance.co.jp/english
Warranty
Purchase
(M/D/Y)
/
date
Warranty
3 months from purchase date
term
)
Phone no.
Shop name (address, and phone. no.)
/
XARVIS XX Owner's Manual
330290-1
