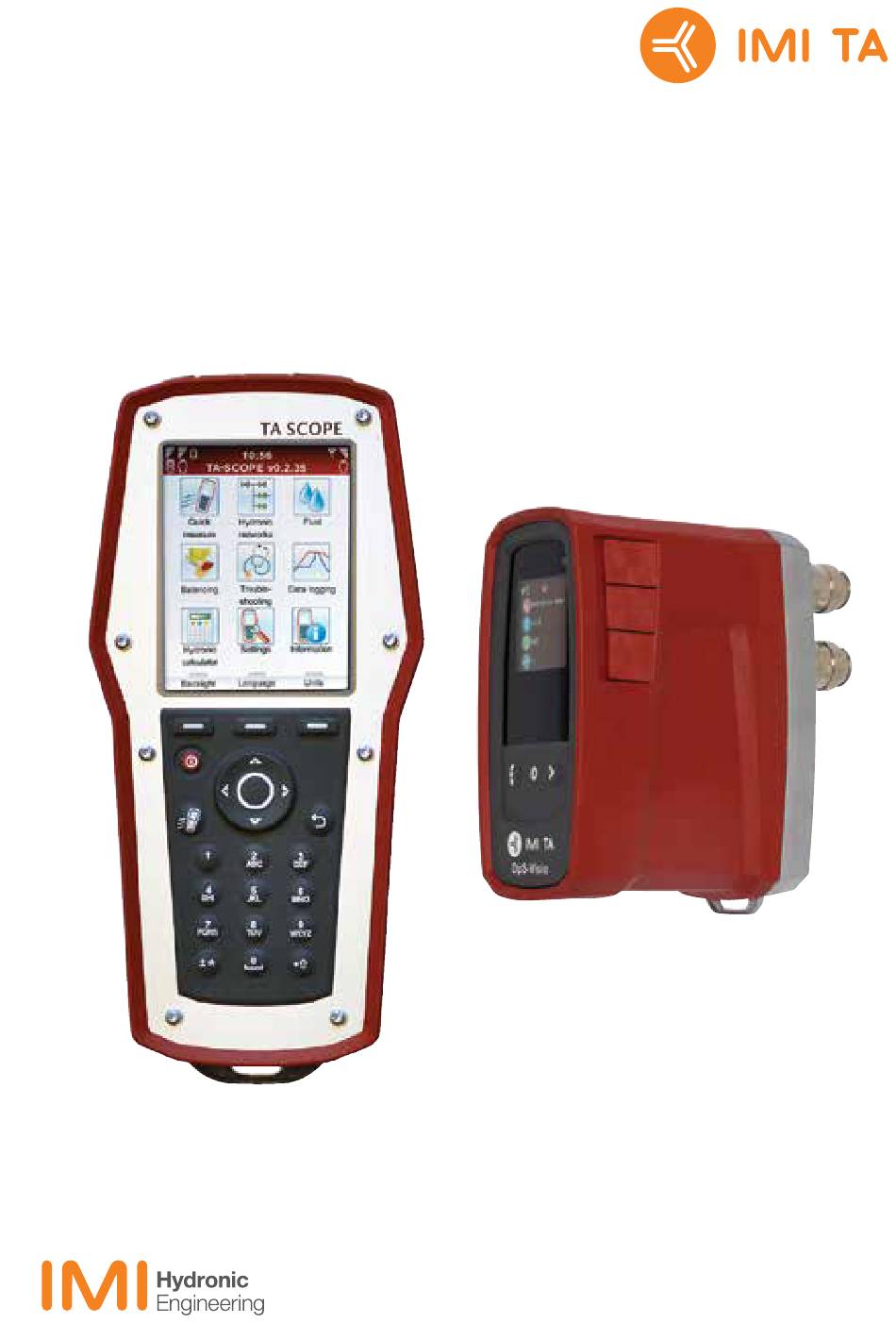

- Page 1 310 224-14 US 06.2019 TA-SCOPE Quick Guide...
-
Page 2: Instrument And Measuring Equipment

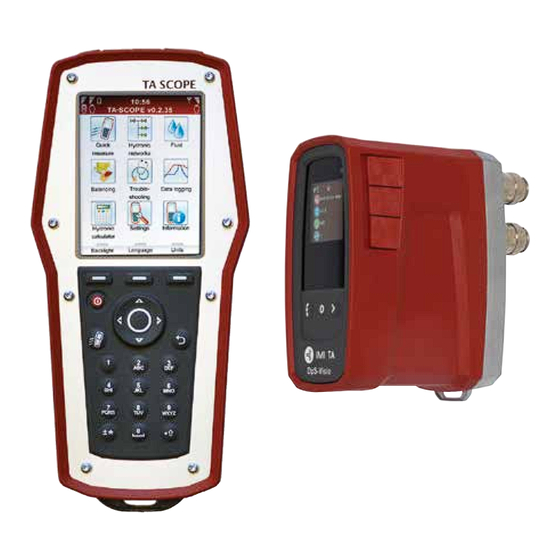

Welcome to your new TA-SCOPE Instrument and measuring equipment Handheld unit (Hh) Dp Sensor unit (DpS-Visio) Digital Temperature Sensor (DTS) Measuring hoses with probe Multi-charger for Handheld and Dp Sensor(s) USB charging cable; Hh - Multi-charger USB-cable for connection; Hh - DpS-Visio /... -
Page 3: Information Bar
Handheld The display is divided into three areas, the Information bar, the Main display and the Function keys. Information bar Icons on the Information bar display details of battery status, connection type and intensity. Information Bar Icons Battery status bar Charging of battery Battery symbol Handheld... - Page 4 DpS-Visio The display is divided into three areas, the Note! Never leave water in the Dp Information bar, the Main display and the sensor unit when risk of freezing Function keys. exists (i.e., in the car during winter). LED for battery status Information bar Icons on the Information bar display details of battery status, connection type and intensity.
- Page 5 DpS-Visio – Main screen sequences Navigate button Short press: Browse between menus described here Long press: Entering setting menu (see page 6) Home DpS-Visio type (5 or 10 bar) Software version number Battery level Logging progress (Replaced by when a logging is waiting to start) Logging Logging progress (Replaced by when a logging is waiting to start) Progress in time / Total logging time Time-step...
- Page 6 DpS-Visio – Settings menu In the settings menu, customised adjustments of the DpS-Visio and information representation are managed. Long press to open settings menu Long press to close settings menu Short press - jump to next screen Arrow button to change settings Settings are open Change Dp measuring...
- Page 7 Always wear your boots inside your trouser legs to prevent/minimise any hot water flowing into your boots. IMI Hydronic Engineering will not take any responsibility for injury howso- ever caused by hot water during measurement. 1. Turn the handheld (Hh) and the Dp sensor (DpS-Visio) on.
- Page 8 Quick measure – DpS-Visio Measure differential pressure and temperature Short press or long* press Double press By-pass valve Measurement opening without flushing and calibration Flushing and calibration By-pass valve closing Brings back to main screen sequence Measurement *) Keeping pressed from the start keeps the calibration sequence in flushing phase.
-
Page 9: Software Upgrade
Download HySelect Download and install HySelect from www.imi-hydronic.com. Transfer of data Connect TA-SCOPE to your PC to transfer Use the USB-cable to connect the Handheld data, e.g., hydronic networks and collected to a PC and the HySelect software will system information to and from the HySelect automatically connect to TA-SCOPE. Simply... - Page 10 DpS-Visio with the same cable as used for communication with handheld (Hh) and Charging – Operation instruction (Choose the correct plug (fig A).) Warning! The supplied multi- charger from IMI Hydronic Engineering must be used! 1. Connect the multi-charger to the wall socket. Wait for the indicator to show green colour.
-
Page 11: Technical Specification
Temperature liquid medium measurement ..............-4 - +248°F Measurement deviation Differential pressure – TA-SCOPE ..........0.015 psi or 1% of reading, whichever is the highest – TA-SCOPE HP..........0.029 psi or 1% of reading, whichever is the highest Flow ................as for differential pressure + valve deviation Temperature ......................... <0.36°F Ambient temperature During operation ......................+32 - +104°F... - Page 12 We reserve the right to introduce technical alterations without prior notice. IMI Hydronic Engineering AB, 524 80 Ljung, Sweden. www.imi-hydronic.com...
