Do you have a question about the A18 and is the answer not in the manual?

Questions and answers

Terry Gannon
March 25, 2025

battery not charging. to full capacity. Charge does not maintain normal usage

1 comments:
Mr. Anderson
March 25, 2025

The NEQUARE A18 battery may not be charging to full capacity or maintaining charge due to the following reasons:

1. Incorrect Adaptor Insertion – The adaptor may not be inserted correctly. Reinsert the adaptor properly.
2. Battery Loss – The battery may be deteriorating and needs replacement.
3. Decreasing Usage Time – The battery’s capacity may be reducing over time, requiring recharging or replacement.
4. Incomplete Charging – The battery may not have been fully charged before use. Recharge the battery fully before operating.

This answer is automatically generated

George Schwieger
February 1, 2025

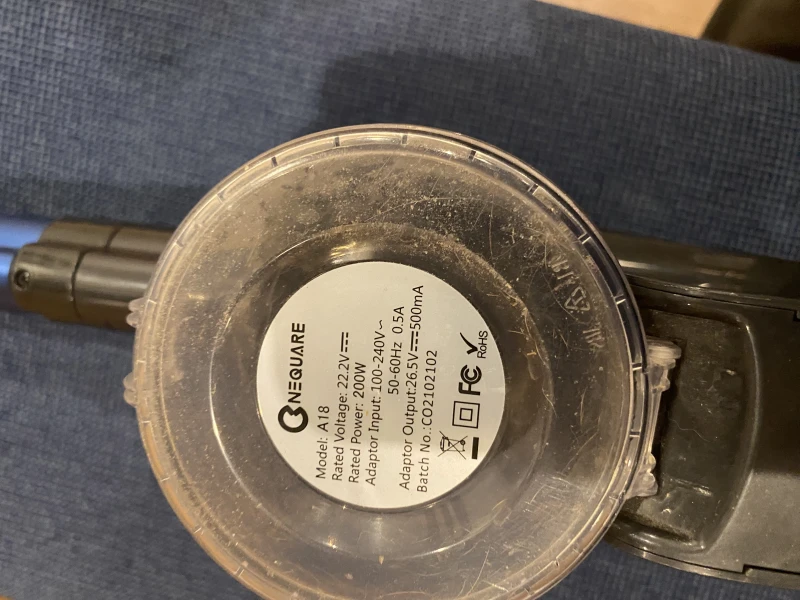

We can charge the vacuum. It run fine for maybe 5 minutes then it will shutdown and 3 light just blink.

User image 679d8cf79903a
1 comments:
Mr. Anderson
May 14, 2025

When the NEQUARE A18 vacuum runs for 5 minutes and then shuts down with 3 blinking lights, it likely indicates that the battery power is low and needs charging. The blinking lights serve as a power indicator signaling that the battery is depleted.

This answer is automatically generated

Summary of Contents for NEQUARE A18

  • Page 2 Core Value: Open, Honest, Enjoyment Super User Program: At NEQUARE, listening to and applying feedback is a critical part of what we do. The criticism and praise we receive from our users goes straight back to our product developers to deliver exciting new improvements. To encourage this, we created the Super User programs.
  • Page 3: Table Of Contents

    Table of Content 1. Technical Specification 2. Appliance Set Up 3. Appliance Disassembly 4. Charging the Appliance 5. Dust Bin Emptying 6. Unclog Brush Head 7. Filter Maintenance 7-14 8. Safety Instruction 9. Trouble Shooting 14-15...
  • Page 4: Technical Specification

    1. Technical Specification Floor Brush: Soft Roller Bar Floor Brush: Bristle Brush Bar ( for vacuuming rugs and carpets) (for vacuuming wooden floors, linoleum or plastic covered floor) Crevice Nozzle 2IN1 Head Wide Brush For cleaning on Round Brush: for furniture, For corner or edge furniture, vents, etc.
  • Page 5: Appliance Set Up

    2. Appliance Set Up Step2: Push the battery into place until the catch clicks Step1: Align the tap on the dust bin with the groove on the battery Connect different accessories for different cleaning purposes 2IN1 Head 18Kpa Super Suction Power Boost to the max mode by pressing "MAX"...
  • Page 6: Appliance Disassembly

    3. Appliance Disassembly Click the button Slide upward the battery Locked Position Twist the motor anti-clockwise to unlock Twist the filter cap anti- clockwise to unlock...
  • Page 7: Charging The Appliance

    4. Charging the Appliance Push the vacuum towards the station until the catch clicks Charging Station Mounting Charge the appliance (Use appropriate mounting tools for your wall type) Step1:Press 4hrs Step2:Pull Battery indicator Allow up to 4hrs to be fully (Press "...
  • Page 8: Unclog Brush Head

    6. Unclog Brush Head Gently slide the brush bar Use coin/key/screwdriver to away from the cleaner head. turn the fastener anti-clockwise Remove the tangled hair/ to unlock thread with scissors 24hrs Wash the brush bar with cold Leave them to dry completely before water if necessary refitting(Recommended 24hrs) Refitting the Brush Bar...
  • Page 9: Filter Maintenance

    7. Filter Maintenance NOTE: Wash the filter with cold water every 2 weeks. Ensure the filters are completely dry before refitting. Replace the filter frequently(Recommended once a month). Wash the filter with cold water Disassemble the vacuum as (NOTE: Do not peel off the instructed white cloth on HEPA) 24hrs...
  • Page 10: Safety Instruction

    3. Use only as described in this NEQUARE Operating Manual. Do not carry out any maintenance other than that shown in this manual.
  • Page 11 7. If the machine is not working as it should, has received a sharp blow, has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the NEQUARE support. 8. Do not disassemble the machine as incorrect reassembly may result in an electric shock or fire.
  • Page 12 19. FIRE WARNING – Do not place this product on or near a cooker or any other hot surface and do not incinerate this appliance even if it is severely damaged. The battery might catch fire or explode. 20. Always turn off the machine before connecting or disconnecting the motorized brush bar.
  • Page 13 • Do not operate while checking for blockages as doing so could result in personal injury. • For domestic indoor and car use only. Do not use it while the car is in motion or while driving. • To operate the MAX mode, press the button on the top of the appliance to boost the appliance to 18Kpa Super Suction power mode.
  • Page 14 VACUUMING • Do not use without the dust bin and filters in place. • Fine dirt such as plaster dust or flour should only be vacuumed in very small amounts. • Do not use the machine to pick up sharp hard objects, small toys, pins, paperclips, etc.
  • Page 15 CLEANING THE DUST BIN • Ensure the machine is disconnected from the charger before removing the dust bin. • Remove the wand and floor tool. • To remove the cyclone, hold the appliance by the handle, lift upwards until the bin opens, then pushin the red button located behind the cyclone and lift the cyclone out.
  • Page 16 • Avoid using the machine with the battery flush to a surface. This will help it run cooler and prolong battery run time and life. BATTERY SAFETY INSTRUCTIONS • If the battery needs replacing please contact the NEQUARE support. • Use only NEQUARE chargers for charging this NEQUARE machine.
  • Page 17: Trouble Shooting

    • The battery is a sealed unit and under normal circumstances poses no safety concerns. In the unlikely event that liquid leaks from the battery do not touch the liquid and observe the following precautions: – Skin contact – can cause irritation. Wash with soap and water. –...
  • Page 18 Trouble Shooting Problem Possible cause Solution Out of battery Charge the battery The appliance The suction mouth is Check and remove doesn't work blocked blockages The battery is still Disconnect the connected to the battery from the adaptor adaptor Empty the the dust Dust bin is full Floor brush is clogged Removing clogging...

This manual is also suitable for:

A17
