Summary of Contents for Global FOLI MECHANISM WITH ECS+

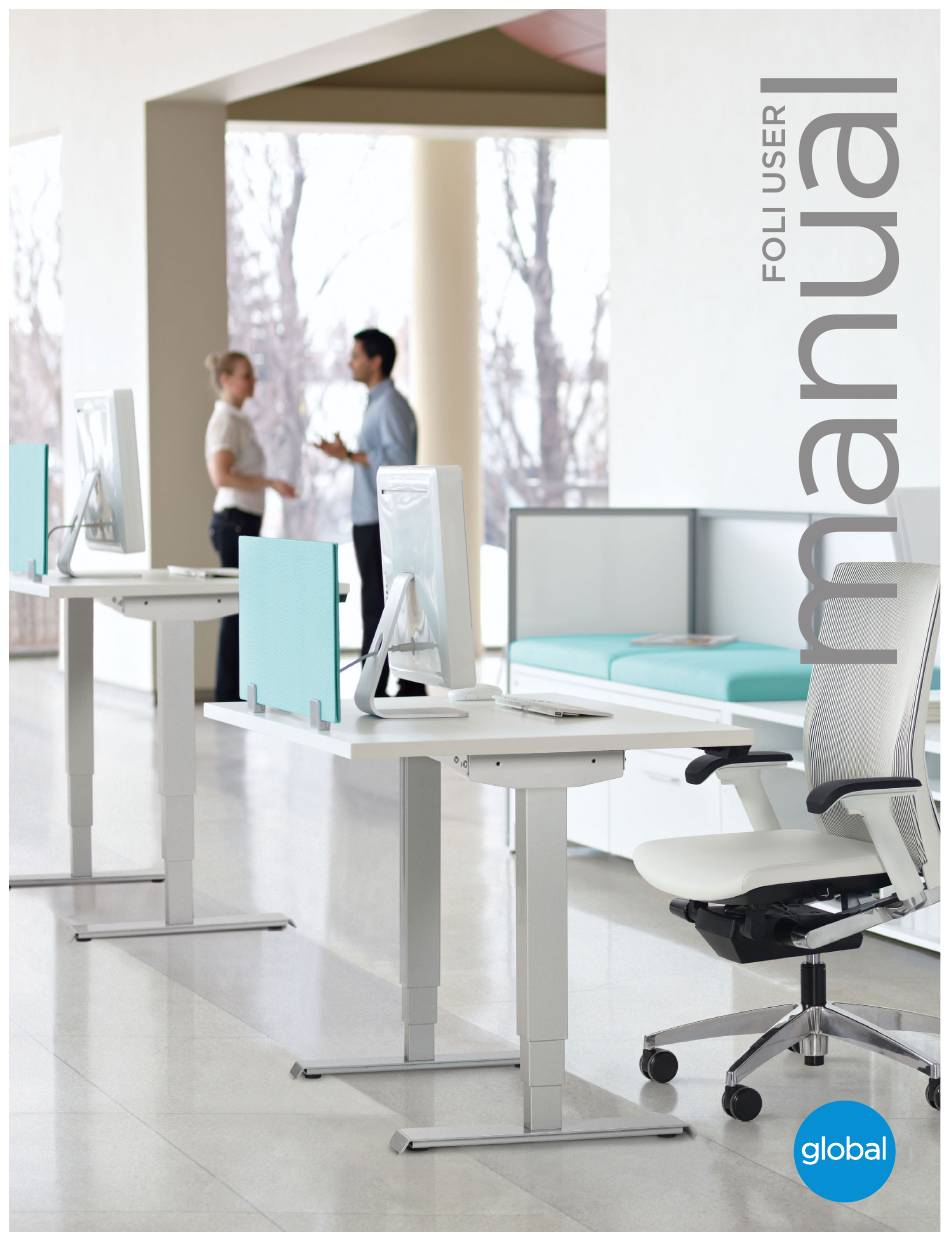

- Page 1 FOLI MECHANISM WITH ECS+...
-
Page 2: Table Of Contents
FOLI MECHANISM WITH ECS+ — USER MANUAL CONTENTS 1 Important Information. SAFETY FIRST! ......................................3 1.1 Important safety instructions, please save these instruction ..........................3 1.2 User Information .............................................5 1.3 Before you start: ........................................... 6 1.4 Electrical rating ............................................6 2 Assembly & Adjustment ............................................6 2.1 Assembly Instruction ........................................... -
Page 3: Important Information. Safety First
FOLI MECHANISM WITH ECS+ — USER MANUAL 1 Important Information. SAFETY FIRST! Your safety and the safety of others are very important. Please familiarize yourself with all instructions and safety warnings before operating the table. Please keep this manual for future reference. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this user’s manual. - Page 4 FOLI MECHANISM WITH ECS+ — USER MANUAL 10. To disconnect, turn all controls to the off position, then remove plug from outlet. WARNING - Risk of Electric Shock: Connect this table to a proper outlet only. For loading always put heavier items at the bottom and not at the top in order to help prevent the possibility of the furnishing tipping over.
-
Page 5: User Information
FOLI MECHANISM WITH ECS+ — USER MANUAL This tag (at right) should be located on the table during the initial installation. Keep children away from moving parts and underneath the table. The intended use of the table is adjusting a work surface between sitting and a standing position. -
Page 6: Before You Start
2.1 Assembly Instruction The official assembly instruction will be found with the base components. Base is for use with an approved surface, provided by the Global Furniture Group. 2.2 Setup procedure CAUTION - Risk of electrical shock: The power cord must be unplugged while the control unit is being commissioned. -
Page 7: Optional Mounting Guidelines
The table control, handset and motors are sealed units and have no parts that can be serviced or adjusted by the user. In case of failure or unexpected operation that cannot be corrected using the instructions in this manual, please contact Global Furniture... -
Page 8: Operation Instructions
FOLI MECHANISM WITH ECS+ — USER MANUAL 3 Operation Instructions To ensure safe operation of the ECS+ control unit, please observe the following safety instructions: CAUTION - Risk of injury and electric shock. Keep children away from electric height-adjustable desks, control units and handset. CAUTION - Risk of Pinching When you change the desktop position (especially without using pinch protection), you must ensure that no people or objects are... - Page 9 PHATB460 HANDSET DISPLAY INSTRUCTIONS This manual is a quick guide of the functionality for the PHATB460 Handset Display. This handset is intended to be used with ECS+ control box only, included with the PHATB460. Settings Error Codes By pressing Up and Down buttons simultaneously you Hard stop enter the Settings menu.
- Page 10 PHATB460 HANDSET DISPLAY INSTRUCTIONS This manual is a quick guide of the functionality for the PHATB460 Handset Display. This handset is intended to be used with ECS+ control box only, included with the PHATB460. Handset layout SOF - Software SOF for Software, will show the software version installed in the handset.
- Page 11 PHATB460 HANDSET DISPLAY INSTRUCTIONS This manual is a quick guide of the functionality for the PHATB460 Handset Display. This handset is intended to be used with ECS+ control box only, included with the PHATB460. SL - Simple Memory Lower SU - Simple Memory Upper SL for Simple Memory Lower.
-
Page 12: Maintenance & Repairs
FOLI MECHANISM WITH ECS+ — USER MANUAL 4 Maintenance & Repairs 4.1 Cleaning, Inspection and Storage Clean the table frame by wiping it down with a microfiber cloth. Never use solvent or abrasive or corrosive compounds. Products must be cleaned at regular intervals to remove dust and dirt and inspected for mechanical damage and normal wear and tear. -
Page 13: Servicing Of Double-Insulated Products
FOLI MECHANISM WITH ECS+ — USER MANUAL Soft start — Progressive acceleration allows for soft starts and stops. Speed — the speed of the table varies with load. 4.4 Servicing of double-insulated products In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor is a means for grounding to be added to the product.
