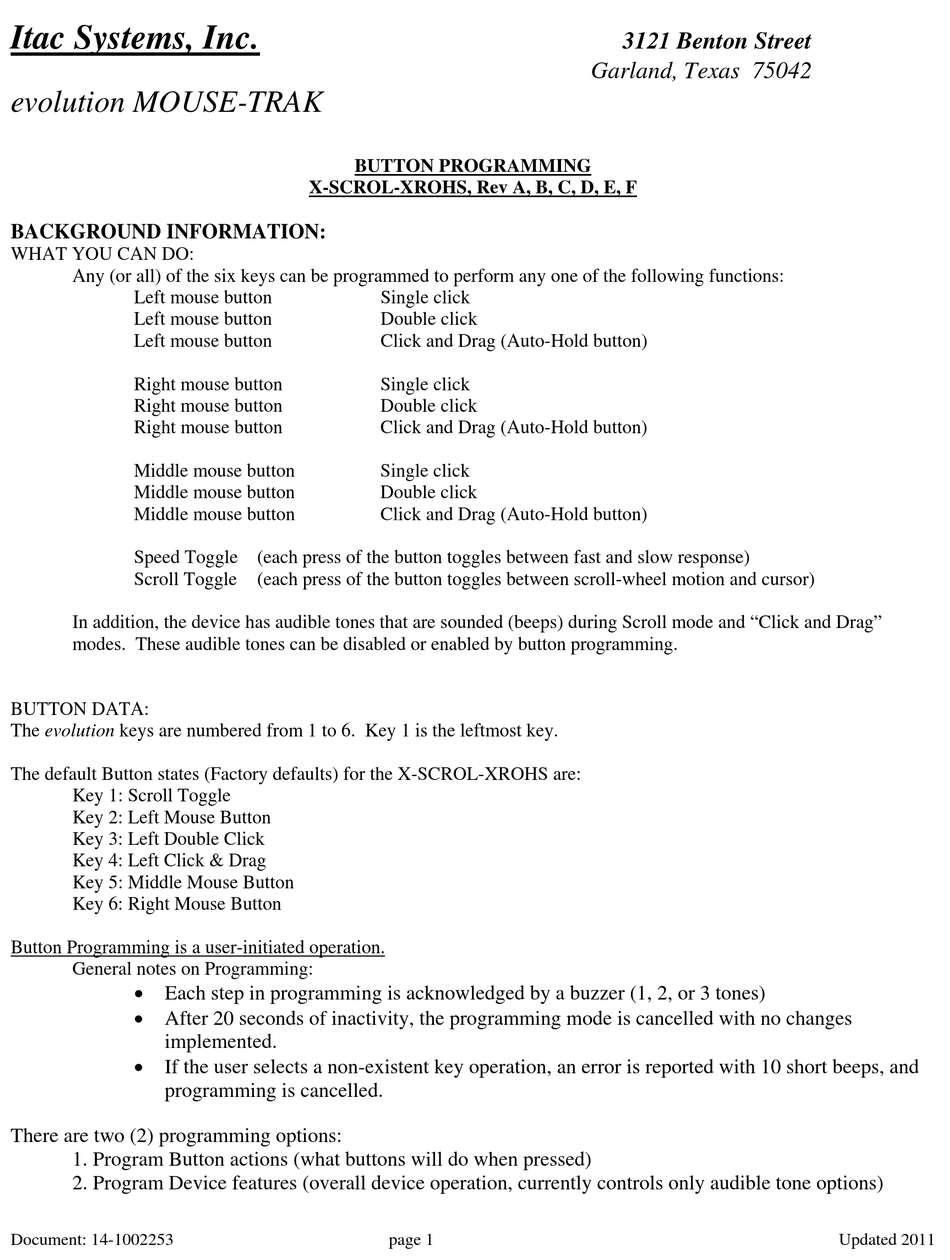

Itac Systems evolution MOUSE-TRAK Manual

Itac Systems, Inc.
evolution MOUSE-TRAK

BACKGROUND INFORMATION:

WHAT YOU CAN DO:
Any (or all) of the six keys can be programmed to perform any one of the following functions:
Left mouse button
Left mouse button
Left mouse button
Right mouse button
Right mouse button
Right mouse button
Middle mouse button
Middle mouse button
Middle mouse button
Speed Toggle (each press of the button toggles between fast and slow response)
Scroll Toggle
In addition, the device has audible tones that are sounded (beeps) during Scroll mode and "Click and Drag"
modes. These audible tones can be disabled or enabled by button programming.

BUTTON DATA:

The evolution keys are numbered from 1 to 6. Key 1 is the leftmost key.
The default Button states (Factory defaults) for the X-SCROL-XROHS are:
Key 1: Scroll Toggle
Key 2: Left Mouse Button
Key 3: Left Double Click
Key 4: Left Click & Drag
Key 5: Middle Mouse Button
Key 6: Right Mouse Button
Button Programming is a user-initiated operation.

General notes on Programming:

 Each step in programming is acknowledged by a buzzer (1, 2, or 3 tones)
 After 20 seconds of inactivity, the programming mode is cancelled with no changes
implemented.
 If the user selects a non-existent key operation, an error is reported with 10 short beeps, and
programming is cancelled.
There are two (2) programming options:
1. Program Button actions (what buttons will do when pressed)
2. Program Device features (overall device operation, currently controls only audible tone options)
Document: 14-1002253

BUTTON PROGRAMMING

X-SCROL-XROHS, Rev A, B, C, D, E, F
Single click
Double click
Click and Drag (Auto-Hold button)
Single click
Double click
Click and Drag (Auto-Hold button)
Single click
Double click
Click and Drag (Auto-Hold button)
(each press of the button toggles between scroll-wheel motion and cursor)
page 1
3121 Benton Street
Garland, Texas 75042
Updated 2011
