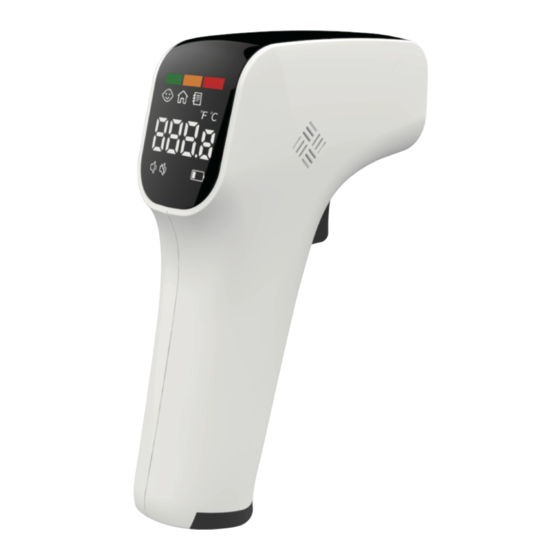

Medical infrared thermometer

Advertisement

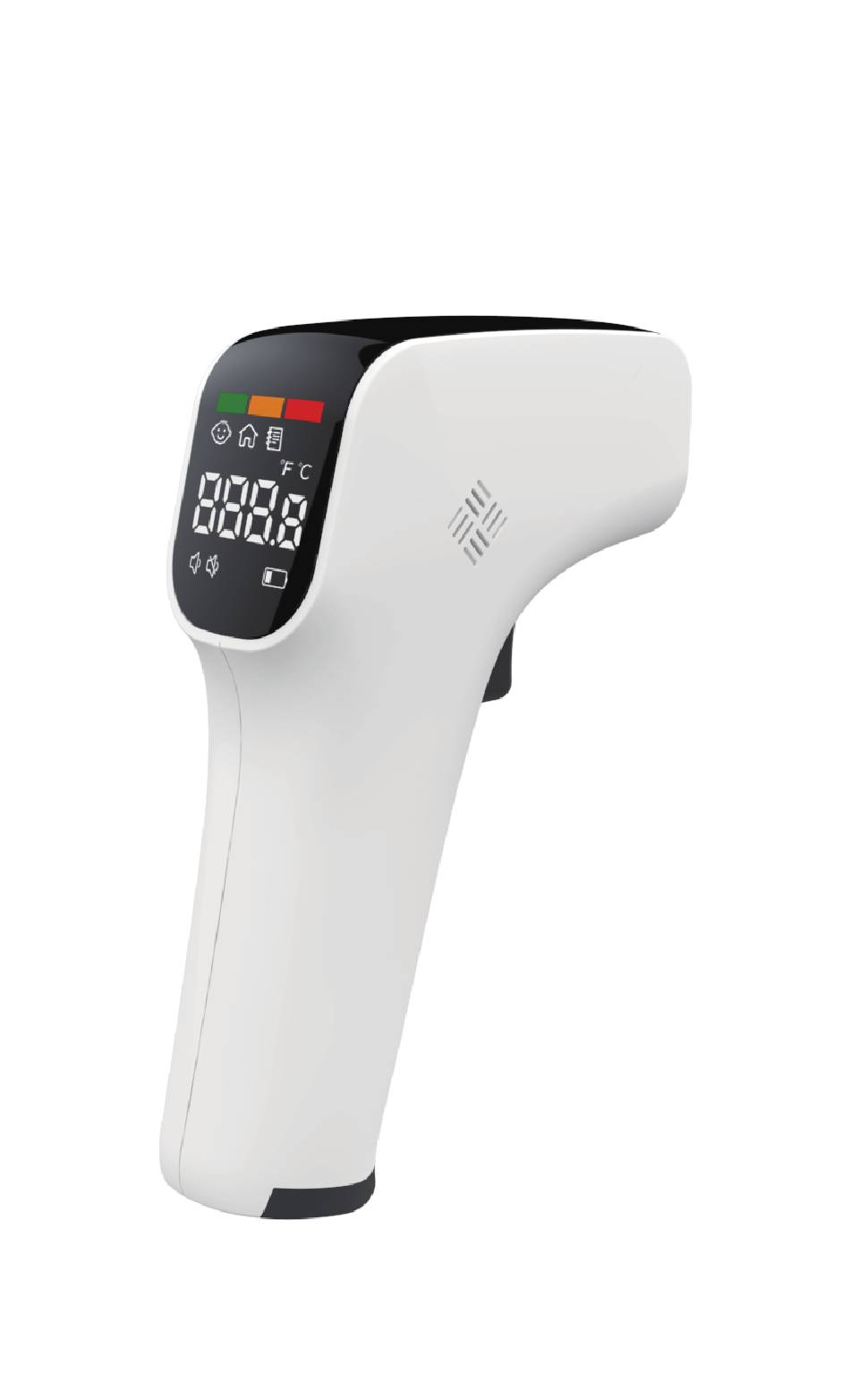

Medical Infrared Thermometer
PC828 / PC828EV
User' s Manual
Version 1.0
2019.11.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC828 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nex PC828

  • Page 1 Medical Infrared Thermometer PC828 / PC828EV User’ s Manual Version 1.0 2019.11.01...
  • Page 3: Table Of Contents

    Contents 1.Introduction ..................1 2.Packing list ..................1 3.Product description................1 3.1 Overview...................1 3.2 Intended use................2 3.3 Principle..................2 3.4 Features..................3 3.5 Components................3 3.6 Product structure..............4 3.7 Digital display description.............. 4.Warnings and precautions.............5 5.Directions for use................7 5.1 Take your forehead temperature..........7 5.2 Take your room temperature............8 5.3 Recall saved readings..............10 5.4 ℃...
  • Page 4: Introduction

    Models covered for this manual and their differences are as follows: Model Difference At the end of temperature measurement, PC828 the buzzer gives a ‘beep’ cue. At the end of temperature measurement, PC828EV the speaker broadcasts the temperature in English.
  • Page 5: Product Description

    3. Product description 3.1 Overview The Medical Infrared Thermometer measures body temperature based on detecting infrared energy emitted from the forehead. Users can quickly obtain measurement results after properly positioning the temperature probe on the forehead. Normal body temperature has a range. The following table shows that this range also varies by measuring temperature at different sites.
  • Page 6: Principle

    3.3 Principle The infrared temperature sensor collects infrared energy emitted by the skin of the forehead. After being focused by a lens, the infrared energy is converted into a temperature reading by the thermopiles and measurement circuits. Fig. 1 3.4 Features Quick measurement in just 1 second Accurate and reliable One button design, making it easy to operate...
  • Page 7: Product Structure

    3.6 Product structure � � � � Fig. 2 � � � � � Fig. 3 ① Top cover ② Digital display ③ Buzzer/Speaker outlet ④ Right cover ⑤ Optical filter ⑥ Power/Measure/Set button ⑦ Label ⑧ Left cover ⑨ Battery cover - 4 -...
  • Page 8: Digital Display Description

    3.7 Digital display description � � � � � � � � � �� �� �� Fig. 4 ① Green status light ② Orange status light ③ Red status light ④ Forehead temperature mode ⑤ Room temperature mode ⑥ Memory mode ⑦...
  • Page 9: Warnings And Precautions

    4.Warnings and precautions 1)Keep out of reach of children under 12 years of age. 2)Never immerse the thermometer in water or other liquid (it is not waterproof ). For cleaning and disinfection, please follow the instructions in the ‘Cleaning and disinfection’ section. 3)Never use the thermometer for purposes other than its intended use.
  • Page 10 Over 60 years of age (fever may be dulled or even absent in elderly patients) Diagnosed with diabetes mellitus or a weakened immune system (e.g. HIV positive, cancer, chemotherapy, chronic steroid treatment, splenectomy) Bedridden (e.g. nursing home patient, stroke, chronic illness) A transplant patient (e.g.
  • Page 11: Directions For Use

    5. Directions for use Please load the batteries before using the thermometer. Take the batteries out if you will not use the thermometer for a long time, such as over one month. Additionally, referring to Part 6 in Fig. 3, this thermometer has a one-button design, so when we describe the ‘Power’...
  • Page 12: Take Your Room Temperature

    In order to improve accuracy, please make sure that your forehead is free from hair, sweat or dirt. Make sure the optical filter is clean before using the thermome- ter. Ensure that both the user and thermometer remain in the same room with a stable airflow and a room temperature between 10.0‒40.0℃...
  • Page 13: Recall Saved Readings

    5.3 Recall saved readings The thermometer can store 32 sets of forehead measurement data. When the data is full, the last reading will always replace the first. If you wish to review previous forehead measurement data, when the thermometer is shut down, press the Set button for about 3 seconds until you see the symbol flicker on the screen, then release the button.
  • Page 14: Turn On Or Off The Buzzer/Speaker

    5.5 Turn on or off the buzzer/speaker The PC828, PC828EV models are different in how they interact with users when measurement is complete: the PC828 uses a buzzer to ‘beep’ , the PC828EV communicates the temperature in English through a speaker. Please check the label on the left cover to determine which thermometer model you are using.
  • Page 15: Set Threshold For High Fever

    5.7 Set threshold for high fever This thermometer has 38.0℃/100.4℉ preset as an alarm tempera- ture for high fever. However, 38.0℃/100.4℉ is only a classic reference value. At this temperature, different people feel different, with some feeling bad and others not feeling too bad. If you do not agree with this high fever threshold, after consulting your doctor, you can manually change it to suit your own situation.
  • Page 16: Temperature-Taking Tips

    6. Temperature-taking tips 1)It is important to know the normal temperature of each individual when they are well. This is the only way to accurately diagnose a fever. Record readings twice a day, once in the early morning and once in the late afternoon. Take the average of these two tempera- tures to obtain the normal oral equivalent temperature.
  • Page 17: Cleaning And Disinfection

    7.Cleaning and disinfection 7.1 Cleaning Wipe the thermometer shell with a slightly damp soft cloth, and gently dry the body with a piece of tissue paper. Take care not to scratch the surface of the optical filter and digital display screen. Only use cotton swabs dipped in anhydrous ethanol to clean the optical filter.
  • Page 18: Troubleshooting

    8. Troubleshooting S ym pto m Pos s i bl e C a u s e Sol ut i on The battery level is too low Replace the batteries. Faile d to The polarities of the Ensure that the batteries are batteries are reversed inserted correctly.
  • Page 19: Specifications

    9. Specifications Product name Medical Infrared Thermometer Product model PC828/PC828EV Applicable ASTM E 1965 / EN12470-5 / GB/T 19146 regulations and laws Power supply DC 3.0V (2 × AAA batteries) Battery life More than 2,000 measurements Appears on the screen when the voltage is Low battery indicator below 2.6V±0.1V...
  • Page 20: Symbol Descriptions

    10. Symbol descriptions D esc r i pti on Sy mbo l Waste electrical materials should be sent to a dedicated collection point for recycling. Type BF applied part. Please read the instructions carefully. Manufacturer Date of manufacture Serial number Batch code AUTHORISED REPRESENTATIVE IN THE EUROPEAN COMMUNITY CAUTION...
  • Page 21: After-Sales Service

    12. After-sales service This device is under warranty for one year from the date of acquisition. Applications for repairs should be presented during the warranty period. Damage caused by improper use does not fall under the scope of the warranty. Batteries and packaging are also not covered by the warranty.
  • Page 22 Guidance and manufacturer’ s declaration - electromagnetic emissions - for all EQUIPMENT and SYSTEMS Guidance and manufacturer’ s declaration - electromagnetic emissions The Medical Infrared Thermometer is intended for use in the electromagnetic environment specified below. The customer or user of the device should ensure that it is only used in such an environment.
  • Page 23 Guidance and manufacturer’ s declaration - electromagnetic immunity - for EQUIPMENT and SYSTEMS that are not LIFE-SUP- PORTING Guidance and manufacturer’ s declaration - electromagnetic immunity The Medical Infrared Thermometer is intended for use in the electromagnetic environment specified below. The customer or user of the device should ensure that it is only used in such an environment.
  • Page 24 Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM - for EQUIPMENT and SYSTEMS that are not LIFE-SUP- PORTING Recommended separation distances between portable and mobile RF communications equipment and the Medical Infrared Thermometer. The Infrared Thermometer is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
  • Page 25: Manufacturer Information

    15. Manufacturer information Shenzhen Pacom Medical Instruments Co., Ltd. Add: B Area, 8/F, B Building, No. 5, Industry 5th Road, Jiangbian Community, Songgang Subdistrict, BaoAn District, Shenzhen, Guangdong 518105, P.R.CHINA Tel: +86-755-32920339 Email: sales888@pacomsz.cn - 22 -...
