Summary of Contents for Bogobit Bremsmodul Oneway

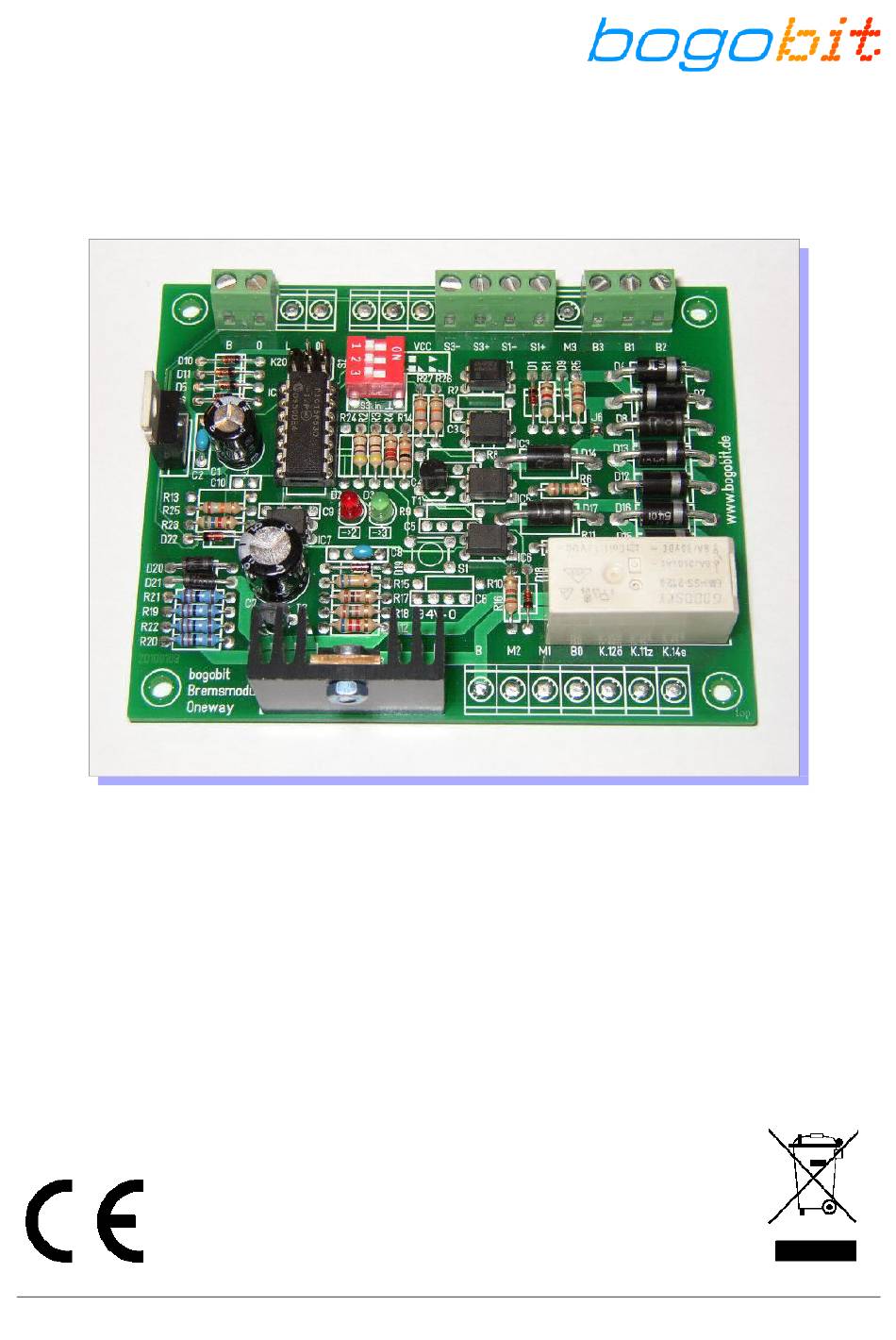

- Page 1 Bogobit Bremsmodul Oneway – Manual bogobit Bremsmodul Oneway · 2011-12-29 page 1 / 11...
-
Page 2: Intended Use
2 Intended Use The Bogobit Bremsmodul Oneway is a brake module for digitally controlled model railways. The module generates a “brake voltage” that is applied to the track depending on the aspect of a sig- nal. This lets locos brake smoothly if they are equipped with a suitable decoder. It can be used on model layouts with center stud tracks (Märklin H0), and for certain applications also with two-rail... -
Page 3: Electrical Safety
The brake module is used at one signal with braking in one direction. If station tracks are passed in both directions, a signal is placed at each end of the track. One Bogobit Bremsmodul Oneway can observe the signals at both ends and brake an approaching train bogobit Bremsmodul Oneway · 2011-12-29... - Page 4 The brake module is used at two signals with braking in either direction. On model layouts using center stud tracks (Märklin H0), the Bogobit Bremsmodul Oneway can be used in both operational modes. On layouts with two-rail tracks it can be used in mode 1 (at one signal);...
-
Page 5: Connection And Operation
Signal input S3 is connected to a signal (mode 2) Off: Signal input S3 is not connected, DIP switch 1 is Off Signal input S3 is not connected, DIP switch 1 is On bogobit Bremsmodul Oneway · 2011-12-29 page 5 / 11... - Page 6 0 is the wire to the continuous rail on the left hand side. Note: the color code or polarity of the electrical track connection is irrelevant, essential is right and left rail as seen when approaching the signal. bogobit Bremsmodul Oneway · 2011-12-29 page 6 / 11...
- Page 7 If LED signals are used, these LED equipped signals have one wire as the common positive connec- tion, and individual wires for each LED representing the negative connection. Connect the LED sig- bogobit Bremsmodul Oneway · 2011-12-29 page 7 / 11...
- Page 8 Note that there is no such track segment often called transition segment, as required with many other commercial brake modules. The bogobit Bremsmodul does not require this. Furthermore, there is no such segment often called stop segment, as required with many other commercial brake modules.
-
Page 9: Maintenance And Care
Typically, occupancy is detected if the resistance between B1 (or B2 or B3) and 0 is less than ap- prox. 10 kΩ. This corresponds to a mimimum required current consumption by the loco of approx. 2 mA. bogobit Bremsmodul Oneway · 2011-12-29 page 9 / 11... -
Page 10: Further Notes
8.2 Hazardous Substances, Disposal The product – if manufactured by Bogobit – complies with the Directive 2002/95/EC on the restriction of the use of certain hazardous substances in electrical and elec- tronic equipment, implemented in Germany through the Elektro- und Elektronikge- rätegesetz (ElektroG). - Page 11 9 References The following documents have further information on putting into service: Wiring schemes (German: Anschlussbeispiele) Bogobit Bremsmodul Oneway, see: http://bogobit.de/bremsmodul/oneway chapter “Weiterführende Informationen” Website on recommended decoder settings: http://bogobit.de/bremsmodul/decodereinstellung bogobit Bremsmodul Oneway · 2011-12-29 page 11 / 11...
