Tuscany

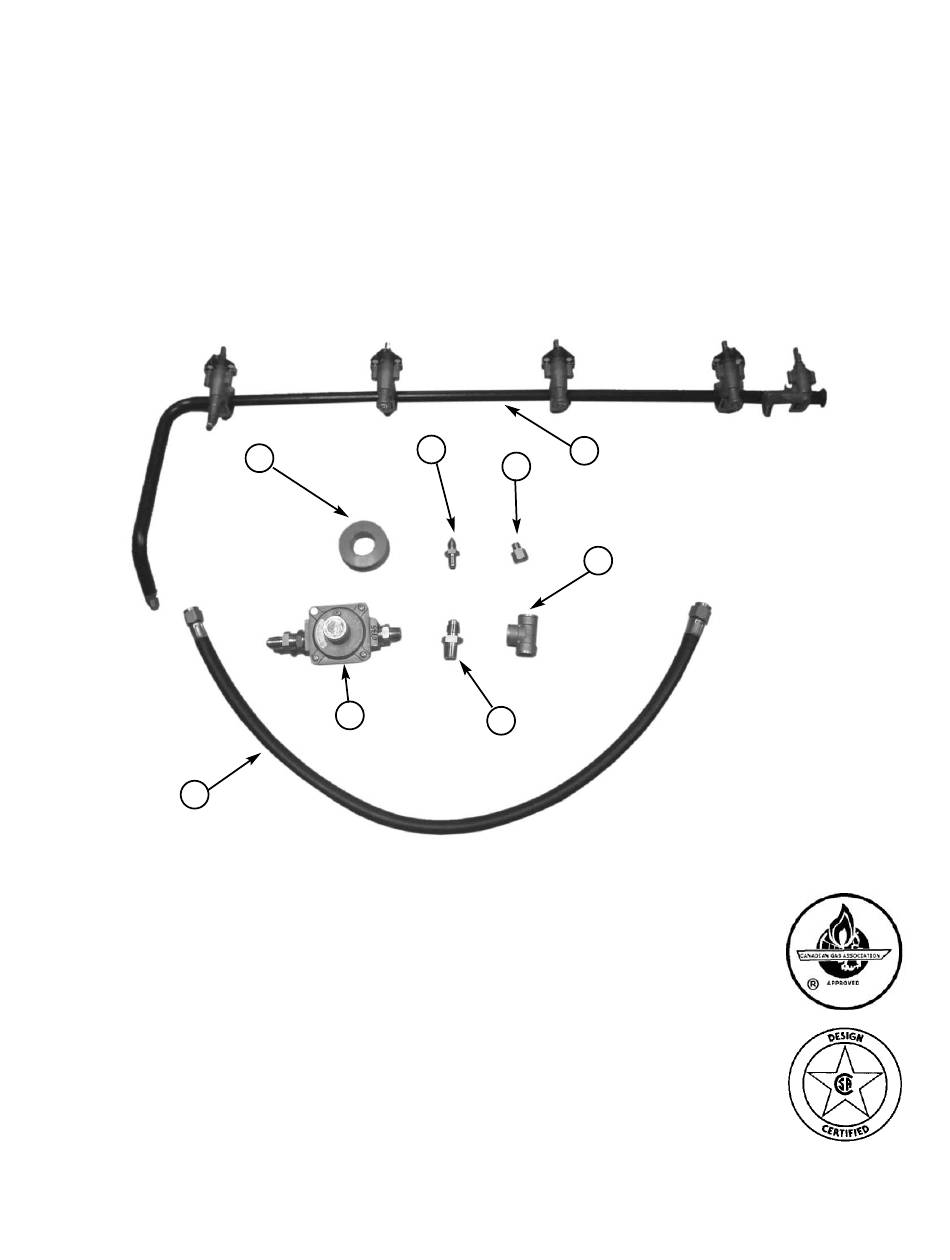

CS812 Natural Gas Conversion Manual

Part No.

RCOZZ00345A 1

RCOZZ00117A 1

RPAZZ00002A 1

RCOZZ00346A 1

RCOZZ00117A 1

RCODZ00026A 1

RCOZA00021A 1

RCODZ00024A 1

FOR OUTDOOR USE ONLY

Qty

Description

Main Burner Valve & Manifold Assembly with Valves (NG)

Hose 27" - 3/8" Flare Both Ends for Side Burner (NG)

Thread Sealing Tape

Side Burner Orifice (NG)

NG Regulator 3/8" NPT x 3/8" UNF

Orifice Back IR NG"

Tee Fitting - Galvanized 3/8" NPT

Connector 3/8" NPT x 3/8" UNF

NOTE: Images in this manual may differ slightly from your grill.

b b y y A A l l t t i i m m a a

Table of Contents

Need help?

Do you have a question about the Tuscany CS812 and is the answer not in the manual?

Questions and answers

Summary of Contents for Altima Tuscany CS812

Page 1 Tuscany b b y y A A l l t t i i m m a a CS812 Natural Gas Conversion Manual FOR OUTDOOR USE ONLY Part No. Description RCOZZ00345A 1 Main Burner Valve & Manifold Assembly with Valves (NG) RCOZZ00117A 1 Hose 27"...
Page 2 CS812 Natural Gas Conversion Instructions Tools Needed: Phillips head screwdriver 3/4” wrench Fig 1 1/4” wrench or socket Adjustable wrench Side burner Side burner valve hose valve elbow * 1/4” socket set with extension can also be used. Be sure gas supply is off, the knobs are in the off position and the grill is cool.
Page 3 CS812 Natural Gas Conversion Instructions 6. Remove the four (4) phillips pan head screws at both sides of the the front control panel. (See Fig. 6) Phillps pan 7. Let a friend help you to pull the front control Fig 6 head screws panel away from the grill and hold it.
Page 4 CS812 Natural Gas Conversion Instructions 13. Push the front control panel back in position, make sure the orifices of the valves insert into Main burner tube the main burner tubes. Then use the four (4) screws remvoed in step 6 on page 3 to secure the front control panel in position.
Page 5 CS812 Natural Gas Conversion Instructions 19. Unscrew the nut securing the bracket on the side burner orifice. (See Fig. 16) 20. Use a wrench to remove the side burner orifice Fig 16 from the flex line and replace it with the NG orifice provided in the kit.
Page 6 CS812 Natural Gas Conversion Instructions Note: Make Sure to use thread Sealing tape on all non-flared fittings. 27. Attach the tee fitting to the manifold as shown. Fig 18 Tighten with wrench. (See Fig. 18) 28 .Attach the Connector 3/8” NPT x 3/8” UNF to the tee fitting as shown.
