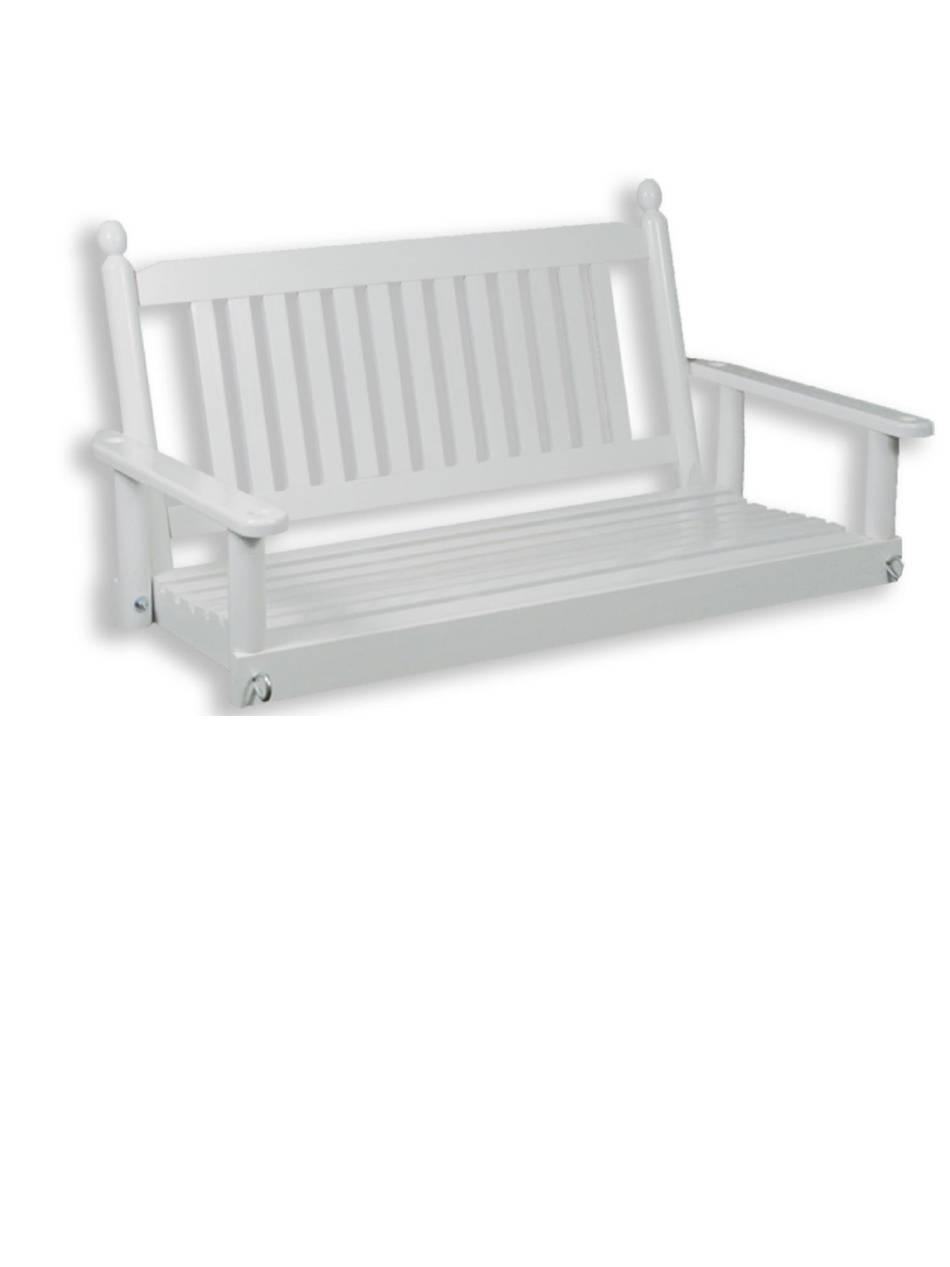

#204 PORCH SWING ASSEMBLY
INSTRUCTIONS
Thank you for purchasing a quality porch swing. The product you have purchased
requires some assembly. This item has been carefully inspected before packing to
ensure its adherence to our strict Quality Control Standards. Proper assembly will
ensure not only your safety, but many years of enjoyable use of this quality product.
We STRONGLY suggest that you familiarize yourself with these instructions prior
to assembling this product. It's up to you to follow carefully EACH STEP of the
assembly process. For your safety, DO NOT SKIP any step indicated in these
instructions. Use all the hardware provided as indicated. Be sure to tighten all
fasteners securely. The manufacturer will not be responsible for any damage or
injury that results from improper assembly of the swing. If you have any questions
regarding the assembly of this swing, feel free to contact us using the customer
service (800) 251-3025.
Advertisement
Summary of Contents for Hinkle Chair Company 204
- Page 1 #204 PORCH SWING ASSEMBLY INSTRUCTIONS Thank you for purchasing a quality porch swing. The product you have purchased requires some assembly. This item has been carefully inspected before packing to ensure its adherence to our strict Quality Control Standards. Proper assembly will ensure not only your safety, but many years of enjoyable use of this quality product.
- Page 2 **Attention/Stop** Please read before assembling this product! Every effort has been made to provide you with a ready-to-assemble product that has the same quality as our fully assembled furniture. In the unlikely event that there are incorrect or missing parts or that parts become damaged during shipping, following the instructions below will protect you (The Customer) from accepting responsibility for a product that is damaged or incomplete.
- Page 3 SWING ASSEMBLY INSTRUCTIONS B-L/B-R Parts Included: 1 - Swing Seat (A) 1 - Swing Back (B) 2- Swing Back Posts (B-L/B-R) 2 - Swing Arms and Posts (C) 4 - Eye Bolts Washers and Nuts (D) 12- Buttons 6-Large 4-Small 2 - Arm Bolts and Wrench(E) 6 - Back Screws and Arm Screws (F) 1 - Chain Assembly (G)
- Page 4 STEP 1: Line up the top of the post with the tenons on the swing back. Press down firmly. Tap with hammer to fully seat. Place screw in top pre-drilled hole. Tighten with the wrench provided.
- Page 5 STEP 1: Repeat for bottom pre-drilled hole. Flip the back over and repeat for other side. Install buttons at the end of assembly. STEP2: Lay Swing on the shipping box during assembly to protect it from scratching. Attach swing posts (C) to swing seat (A) using eyebolts nuts and washers(D).
- Page 6 STEP 2: Attach the swing arm to swing posts (C) using screws (F) provided. Place small button in hole in arm to cover the screw. Complete this for both left and right sides. STEP 3: Attach swing back (B) to swing arms (C) using arm bolts (E). Complete this for both sides.
- Page 7 STEP 4: Attach swing back (B) to swing seat (A) using back screws (F). Complete this for both sides. Push buttons in the holes to cover the head of the screw. STEP 5: Run swing chain (G) through the holes in the swing arm (C) and connect to the eye bolt (D) below.
- Page 8 STEP 6: To attach swing hooks (included in Chain Assembly pack) (G) to anchor point were swing is to be suspended; first you must drill a 3/16” pilot hole. This will make installation of the hooks much easier and will also help you determine if the material is solid and able to handle the weight of the swing.
- Page 9 CARE TIPS LISTED BELOW ARE SOME TIPS TO HELP KEEP YOUR FURNITURE LOOKING NEW. To preserve the finish on stained or pure white furniture it is highly recommended that they either be placed indoors or in a protected environment such as a covered porch.
