AcePro-CE04-1

4x4 Matrix 4K HDR HDMI 2.0

Quick Installation Guide

www.avlab.com.tw

support@avlab.com.tw

Made in Taiwan

AP4-0100C

Table of Contents

Need help?

Do you have a question about the AcePro-CE04-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for AVLT-Power AcePro-CE04-1

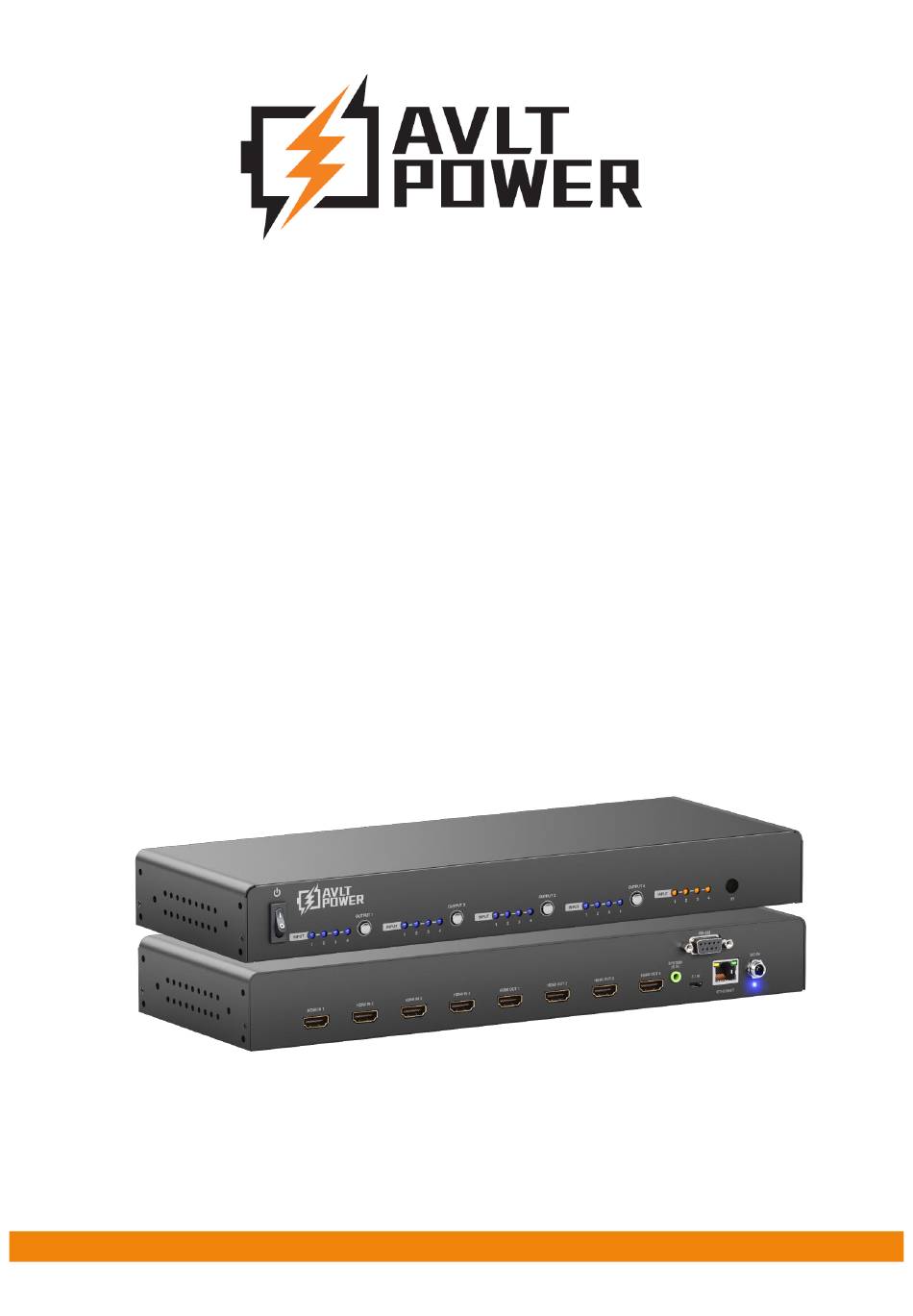

Page 1 AcePro-CE04-1 4x4 Matrix 4K HDR HDMI 2.0 Quick Installation Guide www.avlab.com.tw support@avlab.com.tw Made in Taiwan AP4-0100C...
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................1 FEATURES .......................... 1 SPECIFICATIONS ........................ 2 PACKAGE CONTENTS ......................3 PANEL DESCRIPTIONS ....................... 3 CONNECTION DIAGRAM ....................4 HARDWARE INSTALLATION ....................4 OPERATION APPROACH ....................5 SOFTWARE CONTROL ....................... 7 CLOUD CONTROL ......................14 WEB INTERFACE CONTROL .....................
Page 3: Introduction
INTRODUCTION The AcePro-CE04-1 4x4 Matrix 4K HDR HDMI 2.0 provides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1-channel) digital audio from any of the four HDMI sources to the remote displays at the same time. AcePro- CE04-1 supports HDR and the true 4K2K video! Besides, AcePro-CE04-1 supports auto downscale from 4K2K to 1080P.
Page 4: Specifications
SPECIFICATIONS Model Name AcePro-CE04-1 Technical Role of usage True 4x4 matrix HDMI compliance HDMI 2.0a HDCP compliance HDCP 2.2 / 1.4 Video bandwidth Single-link 600MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) DTS-HD Master Audio, Dolby TrueHD Dolby Digital,...
Page 5: Package Contents
PACKAGE CONTENTS   1x 4X4 Martix (AcePro-CE04-1) 1x Rack-mounting ear set   1x IR receiver 1x Installation software CD   1x DC 5V 4A 6x Screw   1x IR Remote control* 1x User Manual Additional IR remote controllers and IR blasters can be purchased as optional accessories to control the HDMI sources located separately.
Page 6: Connection Diagram
CONNECTION DIAGRAM HARDWARE INSTALLATION 1. Connect all sources to HDMI Inputs on the 4x4 HDMI Matrix AcePro-CE04-1. 2. Connect all displays to HDMI Outputs on the 4x4 HDMI Matrix AcePro-CE04-1. 3. Connect the +5V 4A DC power supply to the 4x4 HDMI MatrixAcePro-CE04-1.
Page 7: Operation Approach
OPERATION APPROACH Method A: Push-in Button IN/OUT MAP (1) Use Port 1-4 Channel Push Button to select the source (2) Input1~4 can be selected in order Method B: IR Remote Control Button Function Standby mode Power on the matrix switcher MUTE STATUS Preset output status...
Page 8 IN/OUT Switch Operation Procedure IN/OUT Switch Push the button on the checkerboard to select input & output port Ex: Input 2 To Output 3 Push the red circle button as below to select input 2 to output 3 Example of function key Operation Procedure Mute Output...
Page 9: Software Control
Method C: Software Control through RS-232 port 1. System Requirement (1) OS Information: MS Win XP/7/8.1/10 (2) Baud rates: 115200 (3) Software size: 1 MB (4) Minimum RAM requirement: 256 MB Power ON/ Standby mode EDID Tab Control SW via RS-232 Rename I/O Tab Control SW via Network System Tab...
Page 10 I/O Mapping Tab  I/O Mapping:  Switch the input for each output  Recall Mapping:  Select the stored Mapping(1-8)   Save Mapping:  Select Mapping(1-8) ...
Page 11 2. EDID Tab  Learn EDID from Default to Input  Select Default EDID(1-17 Default EDID)  Select designated Input   Learn EDID from Display to Input  Select output  Select designated Input   Load EDID File to Input ...
Page 12  View EDID information  Select Input ,HDMI output or EDID file  3. Rename I/O Tab  Rename I/O:  Rename the Inputs  Rename the Outputs  Rename Mapping:  Rename the Mappings -10-...
Page 13 4. System Tab  Network-DHCP mode   Network-Static mode  button to save IP address Information   Read the IP address from the device   Save the IP address which is manually entered  Cloud setting-Association Code ...
Page 14  Cloud-Reset Cloud  To reset cloud after a successful pairing    System-Factory Reset  To do factory default reset  Firmware Version  To get the F/W version information 5. Firmware Update Tab Before you start to update, please make sure you have secured the connection between your computer COM port and the device.
Page 15  Main Board Using RS-232 to USB cable connect the device and your PC/laptop.  Click the button to open the Firmware Update Tool window.  Click the button to select the file which you want to write into device. ...
Page 16: Cloud Control
Method D: on internet  Create Account The first time to use the eagleyes service, please create a new account. Access eagleyes (http://www. Eagleyes.io) The Registration page will pop up and please fill in your email and password information to create your private account.
Page 17 Run the application "Matrix_Serial from the included CD-ROM and the application pictured below will open. *Note: if your system doesn't have a CD-ROM, go to www.eagleyes.io, search for this product by its part#AcePro-CE04-1, and click on "'Control Programs" to download the software.
Page 18 In Cloud setting, click on Read to obtain an Association Code. Write down this code, you'll need it to configure your eagleyes account later. Access your eagleyes account and log in to your account. On the upper right corner, click "Add Device".
Page 19 After adding the device, the device name will show on the upper right corner. You can click the button to switch to device control. The eagleyes is ready for use. Drag and drop any Input to any Output to change viewing options -17-...
Page 20 Method E: Amazon Echo (Alexa) control  Connecting your eagleyes to Alexa. Make sure your Echo device is linked to your Amazon account before continuing. Go to alexa.amazon.com. Create an account or login using an existing amazon account. -18-...
Page 21 Install eagleyes for Echo. Search using keyword "Eagleyes" in Skills page and click "Enable". Then go to Settings (next to "Disable Skills") to link it. Click "Link Account" and the "Eagleyes" sign in box will pop up. Type in your Eagleyes account and password, to successfully link Eagleyes and Amazon Alexa.
Page 22  Voice Control Step 1. "Alexa, open eagleyes" (into Eagleyes) Step 2. "list device" (What device connected to your Eagleyes ) Step 3. "select device" (Select the device which you want to control) Step 4. "play (input) on (output)" (adjust your display array) ...
Page 23: Web Interface Control
Method F: Web Interface Control The default IP address: 192.168.1.70 I/O Routing Tab EDID Tab Rename I/O, Mapping Tab Power ON/Standby mode I/O Routing Tab  I/O: Switch the input for each output  Save Mapping  Select Mapping 1~8 ...
Page 24 Rename I/O, Mapping Tab  Rename I/O:  Rename the Inputs  Rename the Outputs  Rename Mapping:  Rename the Mappings -22-...
Page 25 EDID Tab  Learn EDID from Default  Select Default EDID (1-17 default EDID)  Select input   Learn EDID from Display  Select output  Select input  Power ON / Standby mode -23-...
Page 26: Edid Learning
EDID LEARNING The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.
Page 27: Faq
Q Can every TV work with the HDMI matrix? A Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. Q What is EDID? Why do I need to learn EDID? A EDID contains the whole information of the display such as the resolution and audio setting which this display can support.
Page 28: Warranty
The AVLT-POWER warrants the AcePro-CE04-1 4x4 Matrix 4K HDR HDMI 2.0 free from defects in the material and workmanship for 1 year from the date of purchase from the AVLT-POWER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty...
