RemoteLock openEDGE 700 Series Hardware Installation

Hide thumbs

Advertisement

Quick Links

Download this manual

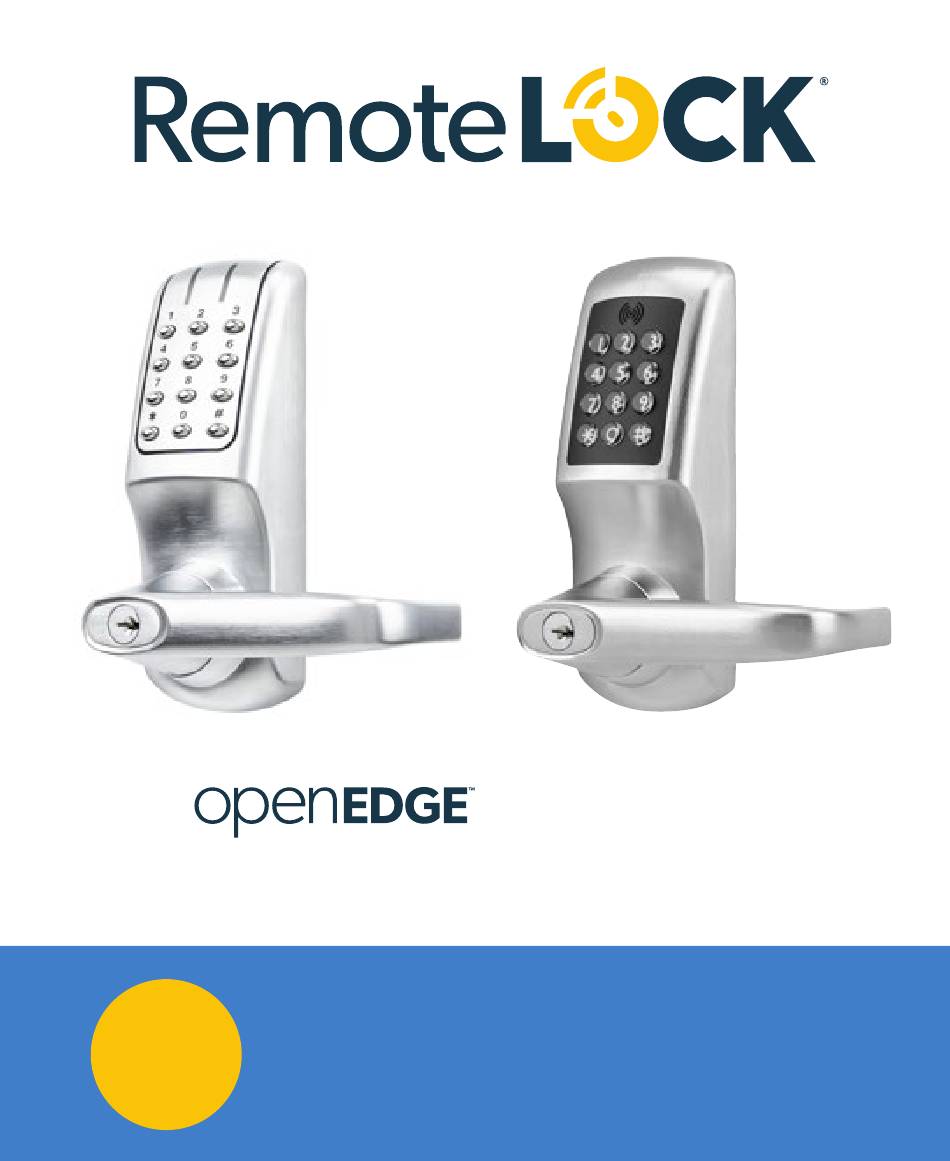

700 SERIES
MEDIUM DUTY
1
COMMERCIAL LEVERS
Hardware Installation
Do this first:

Advertisement

loading
Need help?

Need help?

Do you have a question about the openEDGE 700 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for RemoteLock openEDGE 700 Series

  • Page 1 700 SERIES MEDIUM DUTY COMMERCIAL LEVERS Hardware Installation Do this first:...
  • Page 2 MODEL 710 MODEL 720 PLEASE NOTE: This installation manual uses the 710 model. However, the installation steps are the same for all models in the 700 series.

  • Page 3: Need Some Help

    2 1/8” Hole Saw (optional if the door is not preconfigured Visit us online. with this hole) support.remotelock.com 1” (25mm) Drill Bit (for the middle hole and edge borehole if the door is not preconfigured) ⅜” (10mm) Drill Bit (for the upper two support holes)
  • Page 4 For additional installation instructions and Use this Hardware Installation troubleshooting tips, be sure to visit our online Guide to get your lock installed. support site: support.remotelock.com. Get connected. Use the Connection Guide to get your lock online and registered. Take control.
  • Page 5 Drilling new holes? Let’s get Most doors will have an existing hole drilled for a started. lever installation. If your door needs to be drilled, you’ll need to drill a 2 1/8“ (54mm) face bore hole for the lockset on the face of the door, as well as a 1” edge bore hole for the latch on the edge of the door.
  • Page 6 Position the template. STEP 1 Crease the template along one of the dotted lines (60mm (2 ⅜’’) or 70mm (2 ¾’’) latch). Place the template on the door and position with the existing bore hole. Once the template is aligned, tape it to the door. Exterior of Door Quick Tip is the distance...
  • Page 7 Mark carefully and drill. STEP 2 Exterior of Door Use a thumbtack or sharp object to mark the center of each hole you will drill. Mark the three holes on the exterior of the door. Then apply the template to the interior of the door and mark the holes from this side as well.
  • Page 8 Exterior of Door Remove the template. Make sure the markings are aligned precisely from one side of the door to the other and double check all the measurements and markings before drilling. DRILL HALFWAY THROUGH ON EACH SIDE Align the drill bit over your mark and hold the door steady.
  • Page 9 Exterior of Door Repeat these steps for the 1” middle hole. PLEASE NOTE: A ½” hole could be drilled instead of a 1” hole if the support tube will not be used. We use a 1” hole in this example in case the optional support tube will be used.
  • Page 10 Install the latch. STEP 3 OPTIONAL: If you are using a 70mm latch, and would like to use the fire cup, insert the fire cup into the 54mm (2 1/8“) boring hole. Place the open side of the fire cup to face the keypad side with the small bolt through-hole at the bottom.
  • Page 11 Prepare the exterior, STEP 4 keypad side of the lock. A. Screw the latch support post to the back plate of the exterior, keypad half of the lock. Put it in the outer hole of Side A for a left hand hung door and in outer hole B for a right hand hung door.
  • Page 12 C. Fit the rubber gasket on the back plate. Quick Tip You will see your lock’s serial and model number on the RemoteLock sticker on the back of the lock. Write it down or take a picture for your records. This number is needed during online registration after...
  • Page 13 Prepare the interior, STEP 5 battery pack side of the lock. A. Remove Interior Fixing Plate. To remove the fixing plate from the interior portion of the lock, start by removing the battery cover. Use a phillips head screwdriver to remove the screw at the top of the cover.

  • Page 14: Installing The Lock

    Installing the lock STEP 6 Exterior of Door A. Spindle Place the spindle into the latch with the spring on the SPINDLE keypad side (exterior) of the door. B. Place the keypad side of the lock Place the exterior, keypad side of the lock onto the door, passing the cables through the middle hole in the door.
  • Page 15 C. Interior fixing plate Pass the wires and spindle through the interior fixing plate and hold both sides of the lock to the door. If using the optional cable tube, screw the ring nut onto the tube until finger tight.
  • Page 16 Interior of Door D. Temporary Alignment Insert Fit the alignment insert over the spindle. This will be placed temporarily to position the fixing plate before being removed. E. Secure the Fixing plate Screw the three fixing bolts through the back fixing TEMPORARY plate and into the interior half of the lock.
  • Page 17 F. DO NOT SKIP THIS TEST: Check that the spindle turns freely and the latch retracts and projects smoothly with the alignment insert in place. This can be checked by gripping and turning the handle hub on the keypad side of the lock. If it is too tight, you will notice that the latch does not smoothly and easily snap back into place.
  • Page 18 I. Install Batteries. Insert four name brand, AA, Alkaline or Lithium batteries into the battery compartment. IMPORTANT: Do not use rechargeable batteries. J. Place the interior lock body on to the inside fixing plate. Fit the interior lock body over the back fixing plate. Slide the spindle into the lock body.
  • Page 19 L. Wi-Fi Connector Connect the gold Wi-Fi cable to the connector board on the battery cover. Push until you hear the cable connect in the port. You should hear the antenna cable pop into place when fully connected. Once connected, try not to disconnect too frequently. M.

  • Page 20: Handle Installation

    Handle installation STEP 7 A. Interior Handle Fit the interior handle over the hub. Use the small allen wrench to loosen the hex screw enough to allow the handle to slide onto the lock. Once in place, tighten the hex screw.
  • Page 21 B. Outside (keypad) Handle Fit the key cylinder plate over the key cylinder. Then install the outside handle. The inside handle will now retract the latch. The outside handle will turn freely without retracting the latch. Enter the factory default code 1234#. The green lights will flash and the outside handle will now retract the latch.
  • Page 22 Test your lock. STEP 8 Congratulations! Your lock is now installed. Make sure you don’t lock yourself out. Lock the lock by entering * * on the keypad. Enter the factory default code 1234# on the keypad to unlock the lock. Next: Use the Connection The green lights will flash and the outside handle will...
  • Page 23 Once your lock is installed and connected to Wi-Fi, you can easily control your lock, add and manage access Keypad Sound: Enabled codes with the RemoteLock app. Heartbeat Interval: 1 Hour Card Reader: Off (Enable with 381 or 382 function) For a complete list of manual programming options, visit remotelock.com/programming.

  • Page 24: Programming Functions

    Most of these settings can be updated The keypad can be used to program lock functions. online in the RemoteLock portal. After installing and These functions can also be performed remotely from connecting your lock to Wi-Fi, please register your lock the RemoteLock app.
  • Page 25 Function Codes (cont.) Once set, the default User Code will be disabled after your Local User Code is created. If successful, you will see two green flashes and hear two beeps. If an error was made, you will see a red flash. 120: Delete Local User Code If you would like to remove your Local User Code, enter the following on the lock’s keypad:...
  • Page 26 Function Codes (cont.) ADDITIONAL FUNCTIONS 131: Erase all user codes, except 1234 default. 381: Enable Card/Fob Reader (Always On) This function turns on the card/fob reader on the 135: Perform a factory reset. Careful, this will delete all codes, schedules and events. lock.
  • Page 27 Notes 380: Turn off SmartCard reads. 381: Turn on Always Scanning For Cards mode. 382: Turn on Only Read Card On Keypress. 390: Require # to be pressed after a user code is entered. 391: Removes the requirement to enter # after a user code.
  • Page 28 Notes...
  • Page 29 Visit us online. support.remotelock.com We’re here to help. 1 (877) 254 5625 support@remotelock.com...
