Technical documentation
last changed on: 24.01.2020
ECH 124 / 128 / 12A / 14A
MMC-Crate Series for iseg MMC High Voltage Power Supply Modules

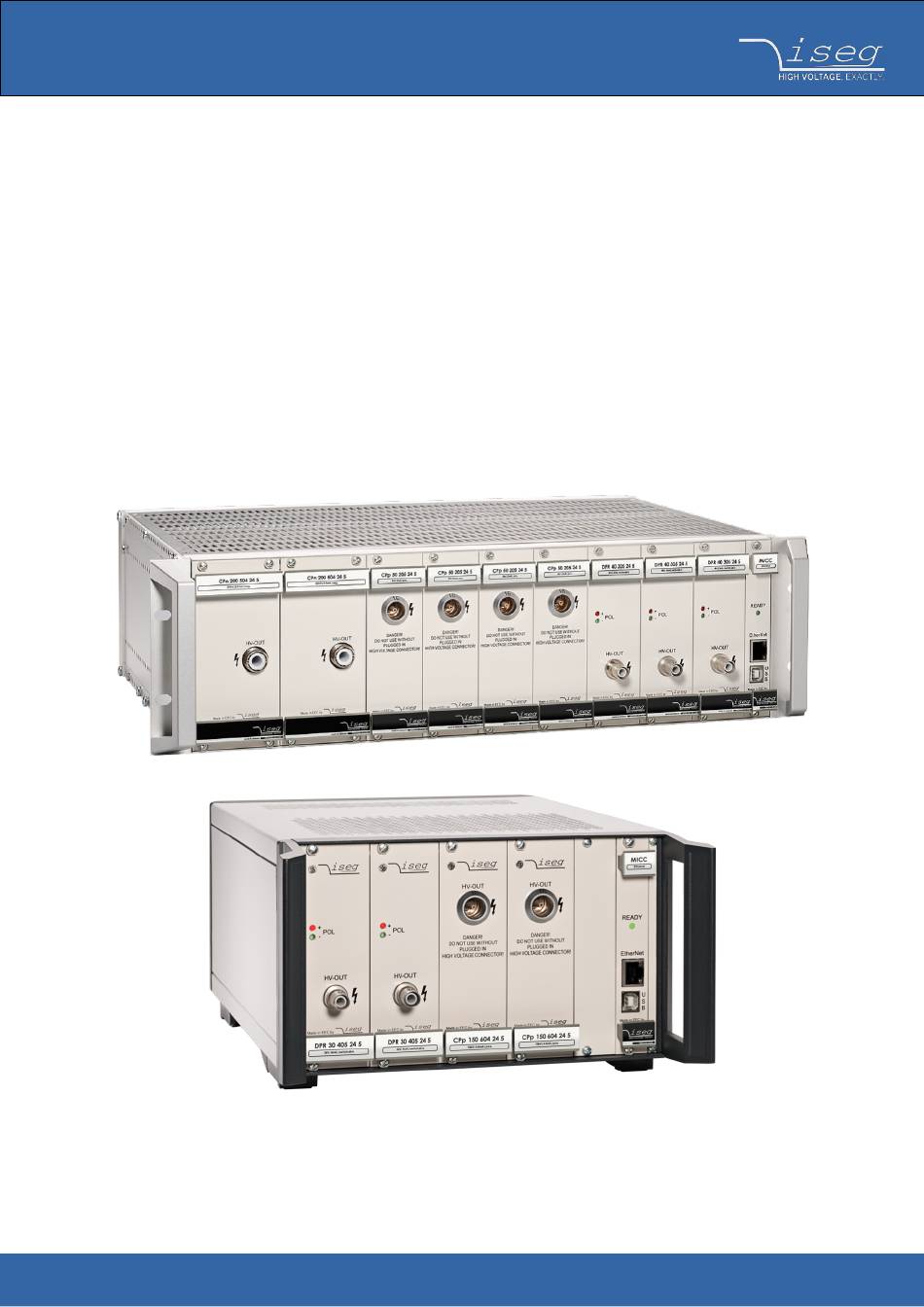

up to 10 MMC High Voltage Power Supply Modules
•
150 / 300 / 480 W power supply
•
wide range of HV-modules (CPS, DPS, EPS series)
•
for the use with MICC controller
•
www.iseg-hv.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iseg ECH 124
Summary of Contents for iseg ECH 124
- Page 1 Technical documentation last changed on: 24.01.2020 ECH 124 / 128 / 12A / 14A MMC-Crate Series for iseg MMC High Voltage Power Supply Modules up to 10 MMC High Voltage Power Supply Modules • 150 / 300 / 480 W power supply •...
-
Page 2: Document History
Copyright © 2020 by iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbidden to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 3: Safety
Advices marked as “Caution!” describe actions to avoid possible damages to property. CAUTION! INFORMATION Advices marked as “Information” give important information. INFORMATION Read the manual. Attention high voltage! Important information. ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 3/20... -
Page 4: Intended Use
The high-voltage power supply unit may only be installed by qualified personnel. • ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 4/20... -
Page 5: Important Safety Instructions
Do not operate the unit in an explosive atmosphere. WARNING! WARNING! Do not operate the unit if you suspect the unit or the connected equipment to be damaged. WARNING! ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 5/20... - Page 6 When installing the units, make sure that an air flow through the corresponding air inlet and outlet openings is possible. CAUTION! INFORMATION Please check the compatibility with the devices used. INFORMATION ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 6/20...
-
Page 7: Table Of Contents
Configuration of the HV-Modules slot position Compatibility lists Dimensional drawings Connectors and PIN assignments Accesories Order guides Appendix Glossary Warranty & Service Disposal Manufacturer contact ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 7/20... -
Page 8: General Description
(safety loop, Inhibit, KILL Enable etc.). For control and network communcation of the MMC modules the iseg MICC crate controller needs to be plugged into the special Controller Slot. The MICC connects the analog interfaces of the MMC HV devices in a 3U Euro cassette with digital standard interfaces. -
Page 9: Technical Data
3,4 kg 4,5 kg Notes: Requires the use of MICC controller, not included with ECH Table 1: Technical data ECH124/ ECH128 ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 9/20... -
Page 10: Order Options
Tabelle 2 Technical data ECH12A/ ECH 14A 4 Order options OPTION ORDER CODE Power supply 480W INHIBIT Notes: Only ECH 14A ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 10/20... -
Page 11: Operation And Maintenance
MMC HIGH VOLTAGE MODULES NOTES CPS 3U-series DPS 3U-series EPS 3U-series 60 W version only MMS-3U HIGH VOLTAGE MODULES NOTES EBS 3U-series ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 11/20... -
Page 12: Dimensional Drawings
8 Dimensional drawings Figure 1: ECH 124, with MICC controller ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 12/20... - Page 13 Figure 2: ECH128, with MICC controller ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 13/20...
- Page 14 Figure 3: ECH12A, with MICC controller ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 14/20...
- Page 15 Figure 4: ECH14A, with MICC controller ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 15/20...
-
Page 16: Connectors And Pin Assignments
I of corresponding HV-module, i.e. no current limit other that I can be set. Only ECH14A. Table 5: System connector H15 ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 16/20... -
Page 17: Accesories
Front panel (blind) RAL9001 3U/8HP Z580789 CANbus terminating resistor Sub-D 9 male Z510245 1-pin LEMO connector Z200793 Tabelle 8: Accessory items ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 17/20... -
Page 18: Order Guides
Crate Controller MICC https://iseg-hv.com/de/products/detail/MMC-Controller CPS Series https://iseg-hv.com/en/products/detail/CPS DPS Series https://iseg-hv.com/en/products/detail/ D PS EPS Series https://iseg-hv.com/en/products/detail/ E PS EBS Series https://iseg-hv.com/en/products/detail/ EB S ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 18/20... -
Page 19: Glossary
Reference temperature HV ON/OFF HV OFF/ON channel(s) high voltage low voltage signal ground Inhibit Polarity KILL KillEnable ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 19/20... -
Page 20: Warranty & Service
Bautzner Landstr. 23 01454 Radeberg / OT Rossendorf GERMANY FON: +49 351 26996-0 | FAX: +49 351 26996-21 www.iseg-hv.com info@iseg-hv.de sales@iseg-hv.de ECH 124 / 128 / 12A / 14A - MMC Crate | Last modified on: 24.01.2020 | www.iseg-hv.com 20/20...
