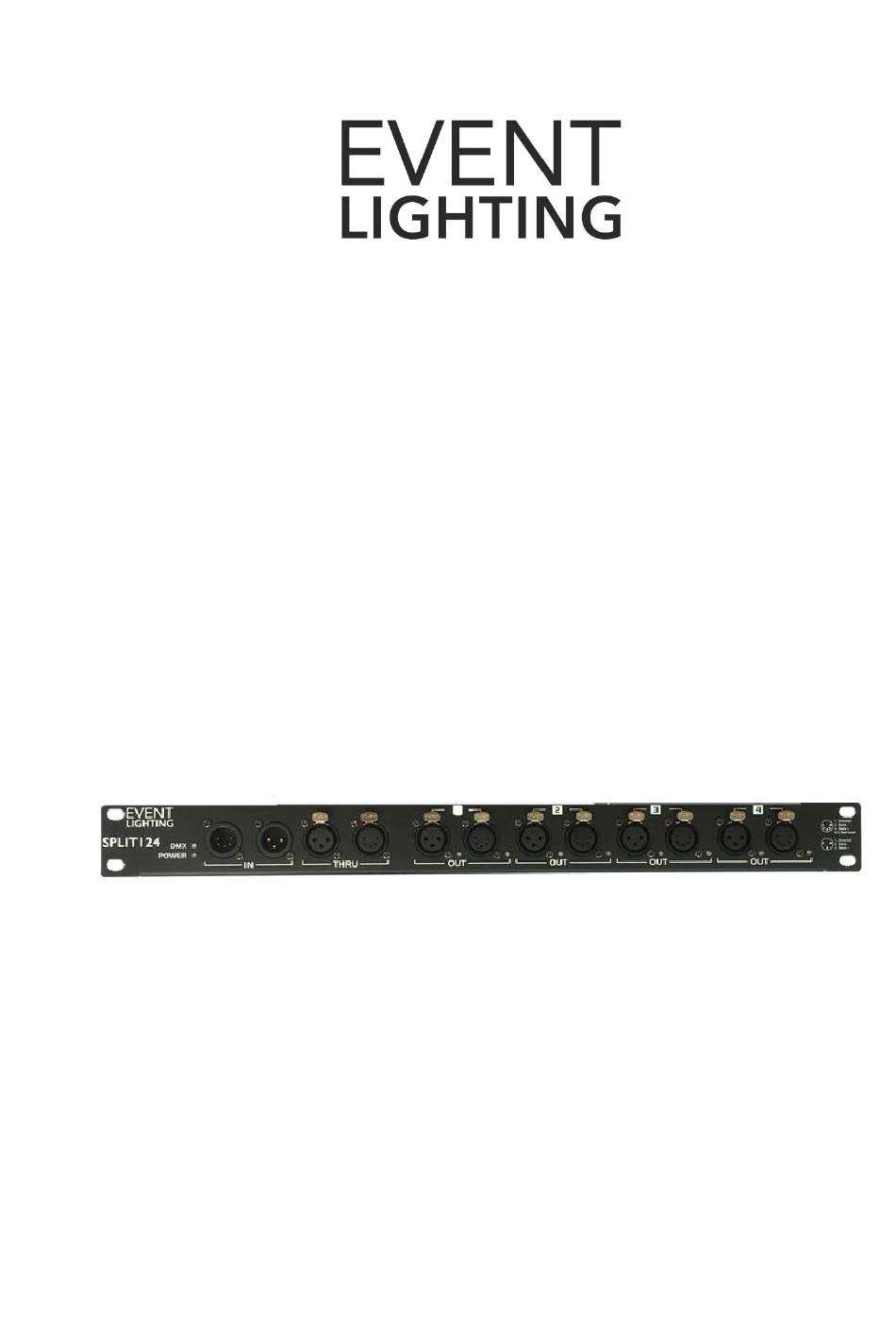

SPLIT124
4-ways DMX Splitter
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.
Advertisement
Table of Contents
Summary of Contents for Event Lighting SPLIT124
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
- Page 2 The SPLIT124 has 4 holes on the rack ears that match a 1RU rack mounting. Hanging The SPLIT124 has 1 M10 threaded hole on the rear panel (bolt not included) to allow a hanging clamp to be bolted to the unit.
- Page 3 The SPLIT124 has both 3 and 5 pin ‘OUT’ connections for each output 1-4 which can be used simultaneously. These outputs are optically isolated and re-transmitted for maximum range. TECHNICAL SPECIFICATIONS DMX512 protocol Power: 100-240V AC 50/60Hz, 3W @ 120V AC 60Hz, 5W @ 230V AC 50Hz...
