Summary of Contents for Renke RS-MG41-O3

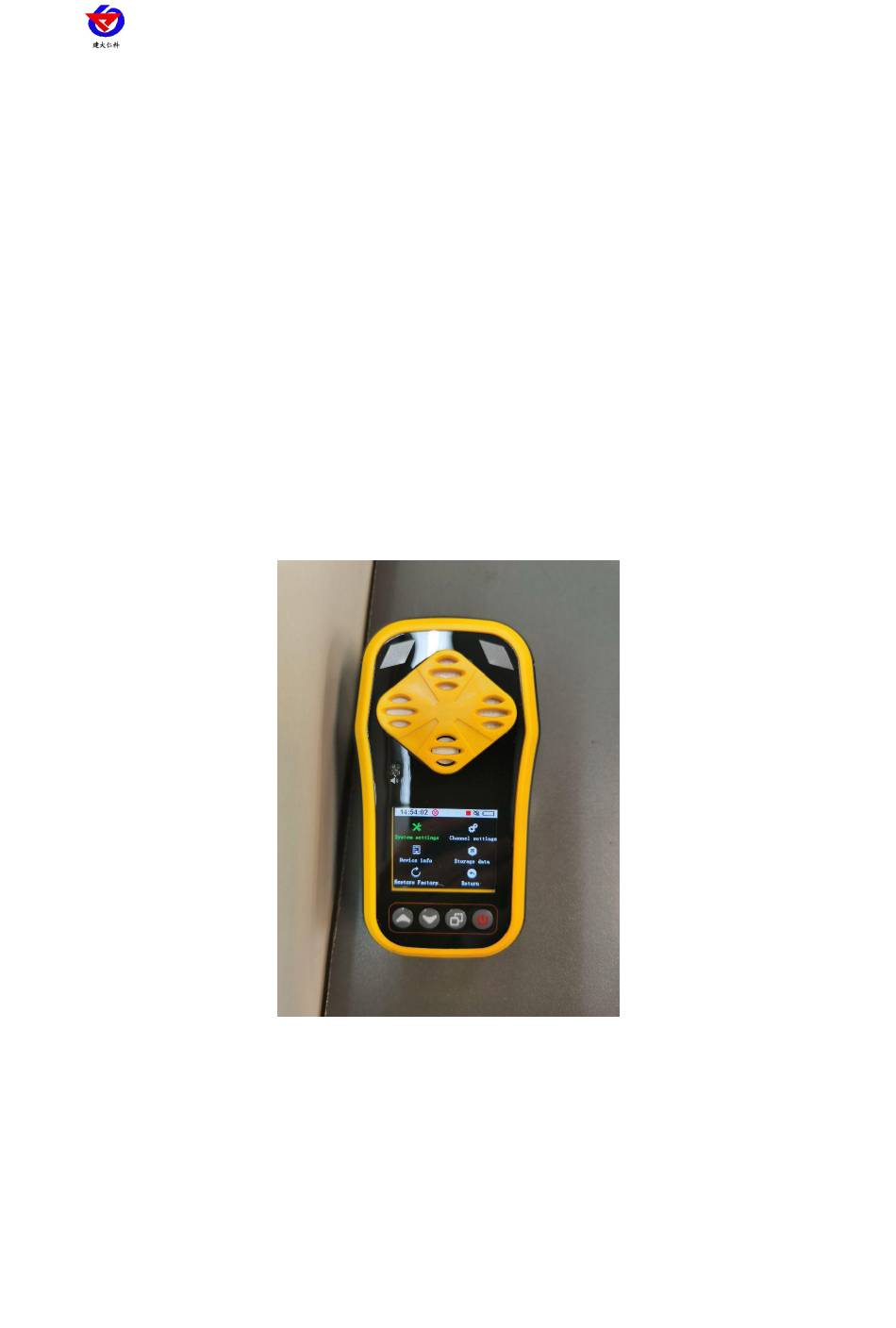

- Page 1 RS-MG41-O3Ozone gas detector user manualV1.1 RS-MG41-O3 Ozone gas detector User Manual Document version：V1.1 Shandong Renke Control Technology Co., Ltd. www.renkeer.com...
-
Page 2: Table Of Contents
5.2Introduction to the main interface..................6 5.3Instructions..........................7 5.3.1System setup instructions....................8 5.3.2Channel setting instructions..................8 5.3.3Store data........................9 5.3.4Restore factory default....................9 6.Configuration Software Instructions....................10 8..Configuration Software Instructions.....................13 9.Precautions............................. 13 10.Common faults and solutions.......................15 11.contact details..........................16 Document history....................错误！未定义书签。 Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 3: Product Brief
In many industries, the production process needs to use or produce potentially toxic or explosive gases. RS-MG41-O3 is an intrinsically safe gas detector developed by our company for environments containing ozone gas. The detector uses natural diffusion. The gas is detected by an electrochemical gas sensor, which has excellent sensitivity and excellent repeatability. -
Page 4: Product Model
Handheld gas detector housing Ozone sensor Range 0 ~ 10ppm 3.Equipment size and list Equipment size chart Equipment List: One suitcase (contains detector equipment, USB plug, USB data cable, standard gas hood, certificate, warranty card) Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 5: Portal
Main interface: long press to turn off the buzzer alarm; Decrease key Menu bar interface: short press, the cursor moves to the next icon; Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 6: Introduction To The Main Interface
Enter interface Menu, input value interface: After the cursor determines the option, short press to confirm the current option. 5.2Introduction to the main interface Serial name Explanation Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 7: Instructions
2. Short press the confirmation key on the main page to enter the password interface, the password defaults to 0000, press the cycle key to move the cursor to confirmation, and click the confirmation key to enter the menu interface. As shown in Figure 1: figure 1 Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 8: 1System Setup Instructions
RS-MG41-O3Ozone gas detector user manualV1.1 5.3.1System setup instructions Move the cursor to the corresponding icon and click the confirm button to enter the setting interface 5.3.2Channel setting instructions Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 9: 3Store Data
The device can be viewed: gas type, current value, range, maximum value, minimum value, start storage time, end storage time and the number of storage. 5.3.4Restore factory default Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 10: Configuration Software Instructions
It should be noted that after the modified parameters, check the modified parameters, and then click to write the device information, the parameter will be written to the device, this function is to facilitate the modification of other parameters by mistake Set. Shandong Renke Control Technology Co., Ltd. www.renkeer.com... - Page 11 Open the configuration software of the multi-gas detector, and then connect the recorder to the computer via a USB cable. Click "Save Data Read" to import the data stored in the detector into the configuration software. Shandong Renke Control Technology Co., Ltd. www.renkeer.com...
- Page 12 6.3 export data Select the export format (TXT / XLS / PDF) on the toolbar to save the data to the specified path (take PDF as an example), indicating that the export is successful. Shandong Renke Control Technology Co., Ltd. www.renkeer.com...
-
Page 13: Configuration Software Instructions
3. Please use the detector strictly in accordance with the instructions, otherwise it may lead to inaccurate test results or damage to the product 4. This product cannot be used or stored in an environment containing corrosive gas Shandong Renke Control Technology Co., Ltd. www.renkeer.com... - Page 14 6. In order to ensure the detection accuracy, the machine should be calibrated regularly, the verification period should not exceed one year 7. In an explosive gas environment, the battery pack cannot be disassembled or replaced, nor can the battery pack be charged. Shandong Renke Control Technology Co., Ltd. www.renkeer.com...
-
Page 15: Common Faults And Solutions
Instrument normal detection interface Sensor drift Perform zero calibration Non-zero (except oxygen) When the instrument is tested Please contact dealer or normally Sensor failure manufacturer The interface displays full Replace the sensor scale Shandong Renke Control Technology Co., Ltd. www.renkeer.com... -
Page 16: Contact Details
RS-MG41-O3Ozone gas detector user manualV1.1 11.contact details Shandong Renke Control Technology Co., Ltd. Address: 2nd Floor, East Building, Building 8, Shuntai Plaza, High-tech Zone, Jinan City, Shandong Province Postcode: 250101 Phone: 400-085-5807 Fax: (86) 0531-67805165 Website: www.renkeer.com Cloud platform address: www.0531yun.cn...
