Summary of Contents for Keeley ECCOS

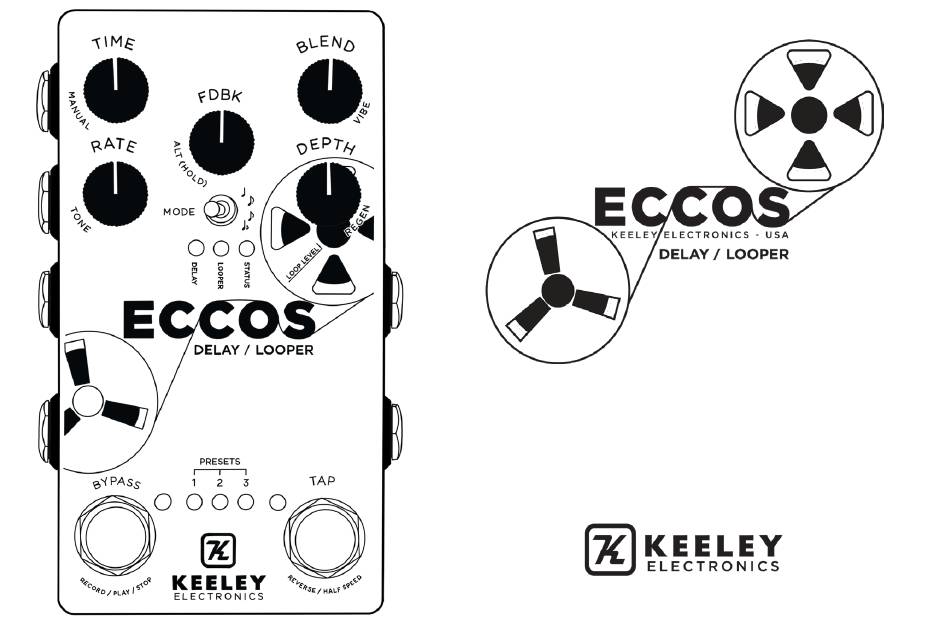

- Page 1 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Creating and Saving Presents........9 Sound on Sound Mode..........10 Independent Switching..........10 Trails or True Bypass Mode........11 Status Lights..............11 Stereo Ping Pong............11 Runaway Feedback Oscillator........11 Advanced Settings............12 Expression Pedal Use...........13 ECCOS Example Settings..........14 ECCOs User Settings...........15 Quick Start Guide............16 Keeley Electronics, Inc. 2019... -
Page 3: Introduction
(up to 1.5 seconds); all while layering on endless loops of audio. The ECCOS offers loop times of up to 120 seconds in mono, and up to 60 seconds in stereo. The Keeley ECCOS features true stereo processing with mono and stereo inputs and outputs. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS 9V Neg-Tip DC Supply True-Stereo Input and Output 115mA True Bypass or Buffered Trails Input Impedance, 1M / Output Impedance, 10K Analog Dry-Thru Blend... -
Page 5: Primary Delay Controls
Press and hold FDBK to access secondary controls like TONE or REGEN, or use the MODE select new tempo subdivisions. Quickly double tap the FDBK Looper and Delay modes. knob to switch between You can even use your foot while playing live! ECCOS DELAY/LOOPER... -
Page 6: Secondary Delay Controls
SECONDARY DELAY CONTROLS Access four alternate tone and time shaping controls by pressing and holding the FDBK control while turning other controls MANUAL (Flanger Time) - Subtly changes the delay time of the flange. Ranges ~0 - 13ms. With longer times, the delays become more chorused. Set at minimum by default. -
Page 7: Looper Controls
BLEND knob. MODE toggle switch or by double tapping the Note: The ECCOS delay side can also be turned off independently. FDBK knob with your foot. The Looper LED will The STATUS LED turns blue and will flash once at the light to indicate which mode is active. -
Page 8: Looper Effects / Tone Controls
REVERSE/HALF SPEED switch! EXTENDED RECORD MODE Extended Record Mode - The Eccos comes from our factory with Undo/Redo enabled and with 60 seconds mono recording time. To get 120 seconds of looping time simply remove power and then press and hold down the FDBK knob while applying power again. -
Page 9: Creating And Saving Presents
(WYSIWYG) mode by entering Preset Select Mode, then scrolling through the preset locations until all The three lights in the middle of the ECCOS are 3 Preset LEDs are blinking, then select it by tapping preset indicators, which will correspond with the the BYPASS switch. -
Page 10: Sound On Sound Mode
SOUND ON SOUND MODE The ECCOS now features Sound on Sound Mode! Sound on sound mode lets you record without erasing the original loop. The volume of the loops degrade over time, recreating a vintage reel to reel recording technique. To set the decay of the loops, hold down the FDBK knob and adjust the Depth control. -
Page 11: Trails Or True Bypass Mode
TRAILS OR TRUE BYPASS When bypassing the unit, the ECCOS can be set to let delay trails repeat or to stop them immediately. No trails is equivalent to true bypass; trails requires and uses a top shelf, Keeley Electronics approved output buffer. -
Page 12: Advanced Settings
ALL WET MODE Effect Mode. Hold FDBK + Hold BYPASS while applying power to the unit. The ECCOS can be made all wet for use with an FOR LATCHING SWITCHES amplifier with a parallel effect loop. Hold BYPASS - Apply Power... -
Page 13: Expression Pedal Use
2. Set connected expression pedal to heel-down. default. Once finished, exit Expression Pedal Mode by 3. Turn each knob a small amount to let the ECCOS knob holding FDBK for 2 seconds. you don’t want the control to be ‘expression controlled’. -
Page 14: Eccos Example Settings
SUGGESTED ECCOS SETTINGS Getting Started with the ECCOS Delay / Looper TIP: HOLD DOWN THE FDBK KNOB TO ADJUST THE ALT CONTROLS SWEET SLAPBACK DREAR PUDENCE CLEAN ‘N’ EDGY... -
Page 15: Eccos User Settings
YOUR ECCOS SETTINGS Your favorite settings for the ECCOS Delay / Looper TIP: HOLD DOWN THE FDBK KNOB TO ADJUST THE ALT CONTROLS ECCOS DELAY/LOOPER... -
Page 16: Quick Start Guide
ECCOS QUICK START GUIDE Jump right in to the ECCOS Delay / Looper TOGGLE THE MODE SWITCH OR DOUBLE TAP THE FDBK KNOB TO SELECT DELAY OR LOOPER DELAY MODE LOOPER MODE Switch to Delay Mode - Toggle MODE switch with your Switch to Looper Mode - Toggle MODE switch with your hand or double tap FDBK knob.
