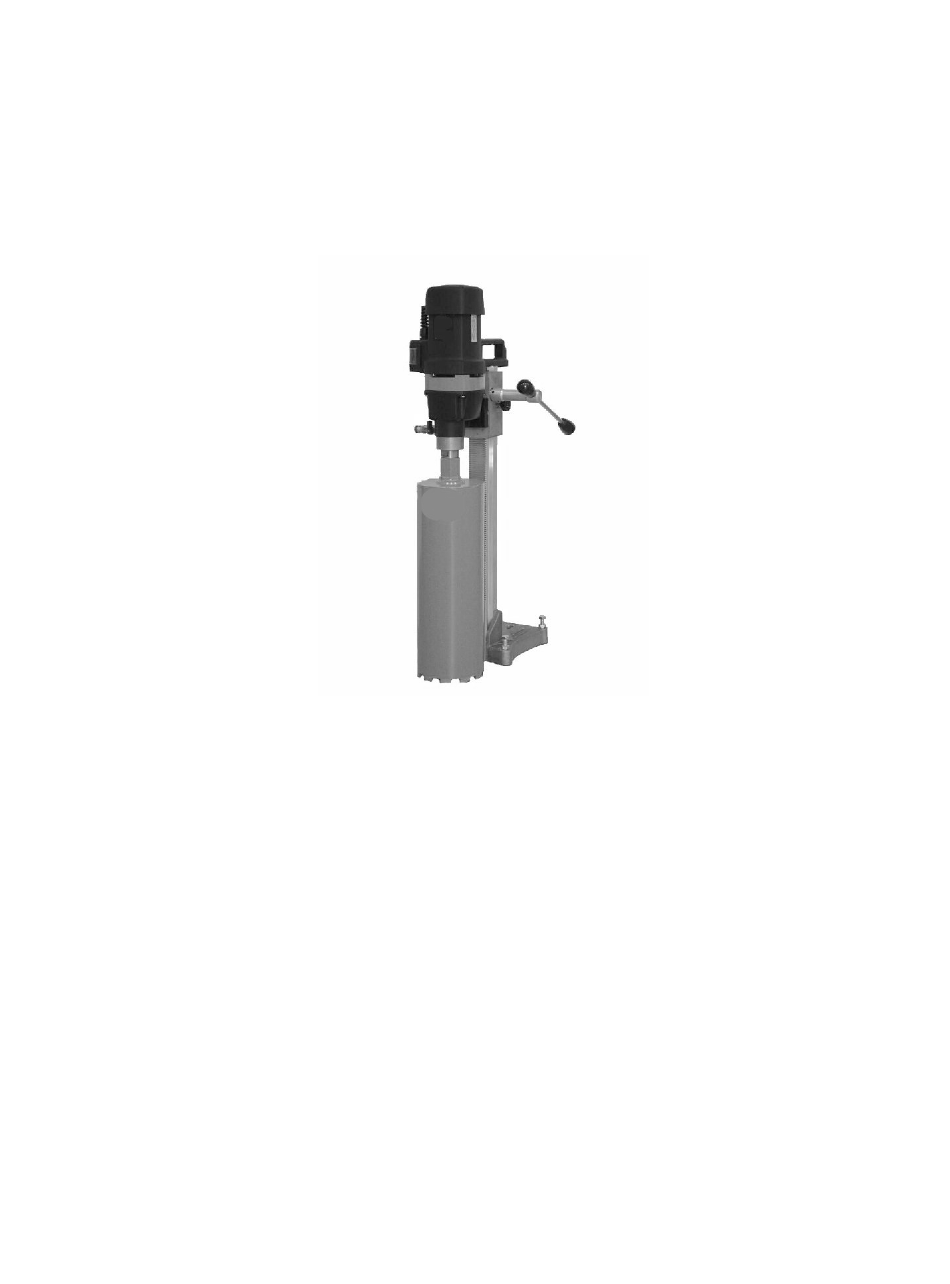

- Page 1 CS UNITEC, INC. Operating Instructions DBE 160...
-
Page 2: Important Instructions
Important Instructions Important instructions and warning notices are allegorated on the machine by means of symbols: Before you start working, read the operating instructions of the machine. Work concentrated and carefully. Keep your work-place clean and avoid dangerous situations. In order to protect the user, take precautions. During work you should wear goggles, ear protectors, protective gloves, and water proofed working clothes! wear ear protectors... - Page 3 PRCD protective switch, user manual, in the carton box Application for Indented Purpose The diamond core drill DBE 160 is indented for professional use and may be used only by instructed personnel. With an appropriate drill bit, the tool may be used only for wet cutting of concrete, stone and masonry.
- Page 4 Safety Instructions Safe work with the machine is only possible if you read this operating instruction and the safety instructions completely and follow the instructions contained strictly. Additionally, the general safety instructions of the leaflet supplied with the tool must be observed. Prior to the first use, the user should absolve a practical training.
- Page 5 Stop working when water is dripping out of the overrunning bore hole and take the machine to an authorised service shop. After breakdown the machine should only be switch on again if the drill bit can be turned. On using the tool, wear ear protectors. Do not touch rotating parts.
- Page 6 Overload Protection In order to protect the operator, the motor and the drill bit the DBE 160 is equipped with a mechanical, electronic overload protection. Mechanical: If the drill bit is suddenly blocked in the hole, a clutch will slip disengaging the bit from the motor.
- Page 7 In case the bit gets jammed, to not dry to release it by switching the tool on and off. Switch the tool off immediately and unfix the drill bit by turning to the left or right using an appropriate open-end wrench. Cautiously pull the tool out of the borehole.
- Page 8 Pay attention that no water get into the machine during the cleaning process. After the first 150 hours of operating you have to replace the gear oil. Gearing oil changes bring about an essential increase of the tool’s lifetime. After approx. 200 hours of operating the carbon brushes have to be checked by a specialist and if necessary remove them.
- Page 9 In Case of Malfunction In case of malfunctions switch the tool off and pull the mains plug. Repairs on the electric parts of the tool may only be performed by an electrical specialist. Malfunction Possible cause Repair Tool does not Line voltage interrupted Plug in other electric tool, operate...
- Page 10 Environmental Protection Raw Material Recycling instead of Waste Disposal In order to avoid damages on transportation, the tool has to be delivered in solid packaging. Packaging as well as unit and accessories are made of recyclable materials and can be disposed accordingly. The tool’s plastics components are marked according to their material, which makes it possible to remove environmental friendly and differentiated because of available collection facilities.
