Summary of Contents for SCALEO Caver

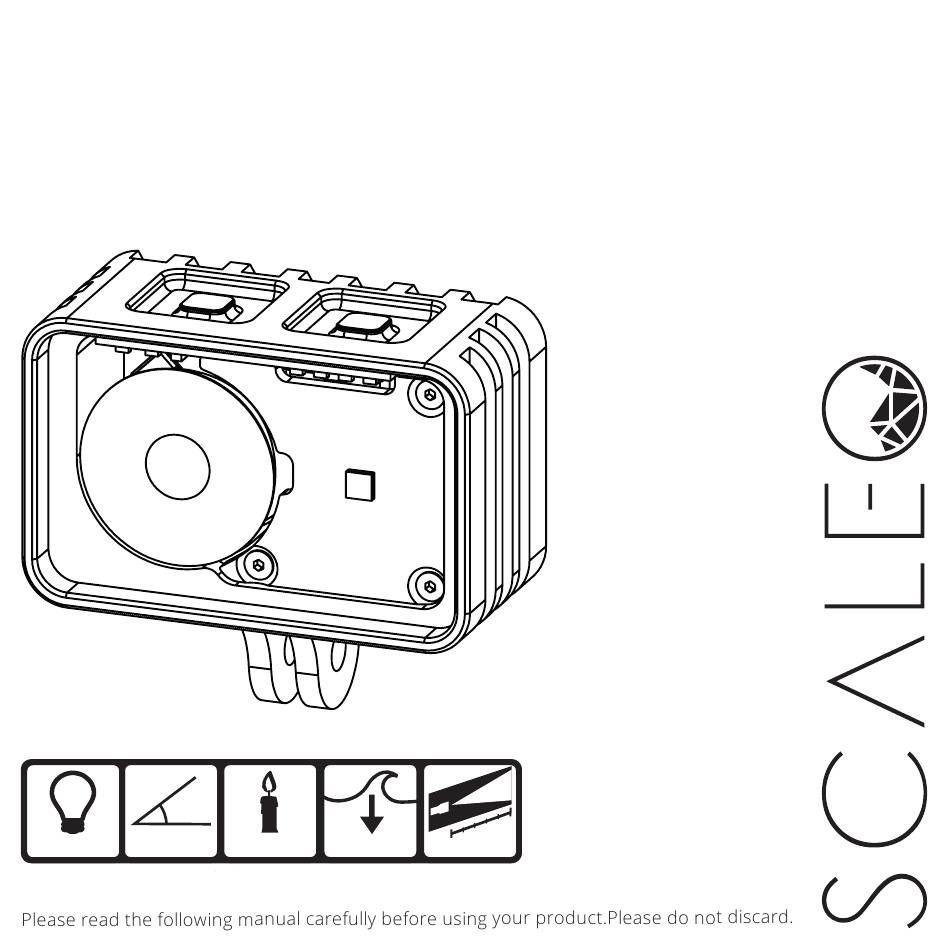

- Page 1 Operating Manual SCALEO caver 2 800 lm 11°/110° 20 000 cd 75/150 m 280 m MADE IN GERMANY...
-
Page 2: Intended Use
- Read all information before operation. This operating manual covers operating, maintenance and safety instructions. Please read the entire operating manual carefully before using the SCALEO caver and keep the operating manual in a safe place for future reference at all times. -
Page 3: Product Details
PRODUCT DETAILS 1. Lamp Head a. right Piezo b. left Piezo c. Battery-Indicator d. Spot LED e. Wide Angle LED f. Action-Cam Mount 2. Battery g. Mount for Lamp Head h. Battery Lid i. Locking Screws j. Battery Main Part k. -
Page 4: Operation
OPERATION USER INTERFACE The lamp is operated by two breakthrough-free piezo buttons with haptic feedback. The lamp has two operating modes that can be configured using the smartphone app. Switching between the two modes is possible via the smartphone app or by pressing both buttons simultaneously in the „Off / Bivouac Mode“ for 3 seconds. - Page 5 MODE 2: Short click (light on): Up to 10 light settings, i.e. combinations of spot and wide angle, can be defined in this mode. The settings can be called up using the piezo buttons. The right piezo button increases the light setting by one. The left button reduces the light setting by one.
- Page 6 > 90% CALCULATION OF THE RUNTIME At full power of spot and wide angle at the same time, the SCALEO caver consumes 40 watts. The battery has about 50 Wh of energy with the recommended battery cells (Samsung INR18650-35E). The runtime at maximum brightness of both light sources is around 1 hour and 15 minutes.
-
Page 7: Care Instructions
CARE INSTRUCTIONS To ensure that you will continue to take pleasure in your SCALEO caver, we recommend to follow the care instructions below. • Rinse off the lamp thoroughly after every use with clean freshwater and dry it off afterwards. Do not use any further cleaning agents. - Page 8 EN: Under the following link you will find the operating manual in different languages and the app for configuration of the lamp: http://www.scaleo-light.de/manual DE: Unter folgendem Link finden Sie die Bedienungsanleitung auf Deutsch und die App zum konfigurieren der Leuchte: http://www.scaleo-light.de/bedienungsanleitung...
