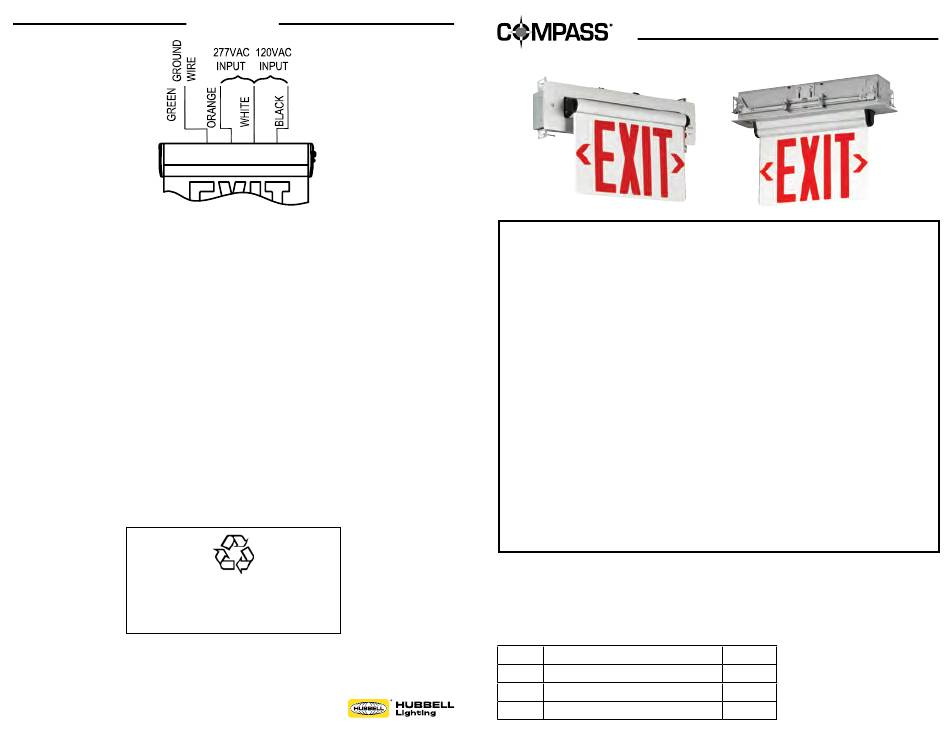

WIRING DIAGRAM
ELECTRICAL CONNECTIONS
1. Make the proper supply wire connections.
2. If using 120 VAC, connect the black and white wires to the
building utility.
3. If using 277 VAC, connect the orange and white wires to the
building utility.
4. Cap off unused wire. In all cases, use standard wire nuts in
connection to wires.
RECYCLING INFORMATION
All steel, aluminum and thermoplastic parts are recy-
NOTICE: Emergency units contain rechargeable batter-
ies which must be recycled or disposed of properly.
Hubbell Lighting, Inc. Life Safety Products • www.dual-lite.com
Copyright
Hubbell Lighting, Inc., All Rights Reserved • Specifications subject to change without notice. • Printed in U.S.A.
©
COMP0003_INST_SHT 5/20
clable.
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following.
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
Do not use outdoors.
2.
Do not let power supply cords touch hot surfaces.
3.
Do not mount near gas or electric heaters.
4.
Equipment should be mounted in locations and at heights where it will not readily be
subject
to tampering by unauthorized personnel.
5.
The use of accessory equipment not authorized by the manufacturer may cause an
unsafe condition.
6.
Do not use this equipment for other than its intended purpose.
7.
Servicing of this equipment should be performed by qualified service personnel.
8.
Test cycling: the Life Safety Code (NFPA 101) requires testing of emergency lighting units
once a month for a
minimum of 30 seconds, and once a year for a minimum of 90 minutes.
INSTALLER:
•SEE UNIT LABEL FOR ADDITIONAL MODEL SPECIFICATIONS
•SAVE THESE INSTRUCTIONS FOR USE BY OWNER/OCCUPANT
WARNING – This product contains chemicals known to the State of California to cause cancer, birth
defects and/or other reproductive harm. Thoroughly wash hands after installing, handling, cleaning,
or otherwise touching this product.
PACKAGE CONTENTS
Part
Description
1
LED Edge-Lit EXIT Sign
2
Adjust Bracket and Bar hanger
3
Hardware Bag
CELR
Recessed Mount LED Emergency Exit
Quantity
1
2
1
