Summary of Contents for DecoRad Handmate UV 1800
-

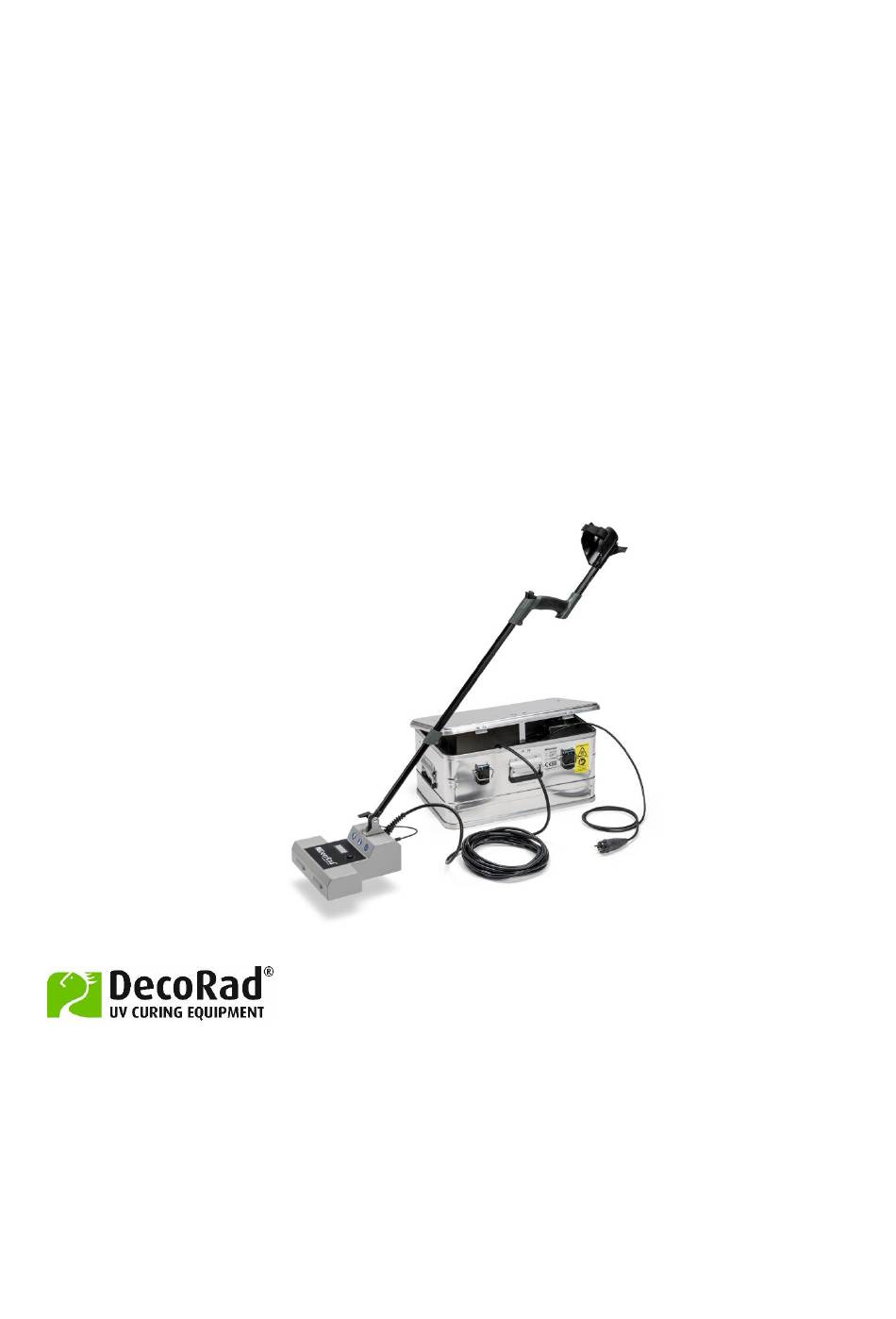

Page 1: Decorad® Handmate Uv-1800
Handmate UV 1800 Firmware 2.9 User Manual DecoRad® Handmate UV 1800 DecoRad® Systems bv Fokkerstraat 25 3905 KV Veenendaal The Netherlands Tel.: +31(0)318-550425 e-mail: info@decorad.com www.decorad.com... -
Page 2: Preface
UV has been used successfully for many years already for instantly curing inks, car paints, glues and coatings. The DecoRad® Handmate UV 1800 is the result of the many years' experience of DecoRad® Systems with on-site use of UV in combination with coatings, varnishes and oils. -
Page 3: Table Of Contents
Handmate UV 1800 Firmware 2.9 Contents DecoRad® Handmate UV-1800 Preface Contents Manufacturer CE-Marking Guarantee Copyright Liability Safety Safety symbols in this user manual Symbols on the DecoRad® Handmate UV-1800 Usage Maintenance Safety regulations UV-radiation Risks of UV-radiation User Machine description Function Overview of the DecoRad®... -
Page 4: Manufacturer
For any questions regarding sales orders, deliveries, parts or shipments, please contact DecoRad® Systems bv. 1.2 CE-marking The DecoRad® Handmate UV 1800 comes with a CE marking. This means that the Handmate meets the fundamental safety demands of the European Community. -
Page 5: Guarantee
(including not correctly applying personal protection measures). The use of the DecoRad® Handmate UV 1800 for any other application or in any other circumstances than indicated in this user manual. Making any kind of alterations to the DecoRad® Handmate UV 1800. This also pertains to applying other replacement parts. -
Page 6: Safety
Handmate UV 1800 Firmware 2.9 2. Safety This chapter describes the safety measures pertaining to the DecoRad® Handmate UV 1800. Carefully read this chapter before putting the DecoRad® Handmate UV 1800 into operation or performing maintenance work. 2.1 Safety symbols in this user manual The following symbols are used in this user manual: A comment draws the user's attention to possible problems. -
Page 7: Usage
- Cleaning the reflector (dirt causes a decrease in UV yield and the number of burning- hours >500) 2.5 Safety regulations The DecoRad® Handmate UV 1800 meets the fundamental safety and health demands of the relevant guidelines of the European Community. Stay alert for dangerous situations! 2.6 UV radiation... -
Page 8: Risks Of Uv-Radiation
Handmate UV 1800 Firmware 2.9 Most of the UV radiation we get comes through sunlight. Not all UV radiation reaches the earth: a part is blocked by the ozone layer. 2.7 Risks of UV radiation Both UVA and UVB can damage cells and genetic material, thus leading to skin cancer. -
Page 9: User
Please make sure that bystanders without appropriate UV protection are at a safe distance of at least 6 meters / 20 ft In order to prevent damage to the DecoRad® Handmate UV 1800 and the user, the user is strictly prohibited to work with tools on the DecoRad®... -
Page 10: Machine Description
Handmate UV 1800 Firmware 2.9 3. Machine description This chapter describes the parts and operational use of the DecoRad® Handmate UV 1800. 3.1 Function The DecoRad® Handmate UV 1800 is the ultimate tool for instantly curing UV (floor) coatings. Please consult our website, www.decorad.com for a recent overview of suitable products! 3.2 Overview of the DecoRad®... -
Page 11: Control Elements
Handmate UV 1800 Firmware 2.9 3.3 Control elements The following buttons can be found on the control panel: 1. On / off switch = power 2. On / off switch = UV lamp 3. Operation button = Dim or Full Power (on the lamp-unit) -
Page 12: Putting Into Operation
Handmate UV 1800 Firmware 2.9 4. Putting into operation Always wear skin protective clothes (UV facial shield, gloves and clothes)! Warning: The bottom of the lamp unit can become hot! The HandMate UV has a power cable of 225 centimeters. -
Page 13: How To Start
On the display of the lamp unit the text WAIT will be shown When DIM is shown in the display, the HandMate UV 1800 is ready to use Use the button on the lamp unit or the extension handle to start UV curing... -
Page 14: How To Stop
4.2 HOW TO STOP From DIM switch off the UV lamp when ready. The text COOL will be shown. Leave the HandMate UV 1800 attached to the power source until DONE is shown. Press the off button Please unplug the HandMate UV 1800... -
Page 15: Error Messages
Description Solution Lamp start fail Turn both switches OFF. Start from 4 PUTTING INTO OPERATION. In case of recurrence E13, please consult DecoRad® Systems Over- The UV lamp is too hot, leave the UV lamp to cool down (TEMP) temperature for 5 minutes. -
Page 16: Replacing Lamp
Handmate UV 1800 Firmware 2.9 6. Replacing lamp Replacing UV lamp: Caution: never touch a heated UV lamp!! Step 1: Place the Handmate on a flat surface with the lamp facing up. Step 2: Disconnect from the power source. Step 3: Remove the 13 screws with a socket wrench and flip the bottom plate carefully to the side. -
Page 17: Specifications
Handmate UV 1800 Firmware 2.9 7. Specifications Handmate UV 1800 General Description DecoRad® Handmate UV 1800 Brand DecoRad® Colour Silver / black 2 – 35 cm Distance to object Cure path 20 cm Measurements and weights Weight hand unit (kg) Appx. -
Page 18: Ce Declaration
Handmate UV 1800 Firmware 2.9 DecoRad® Systems bv Fokkerstraat 25 3905 KV Veenendaal The Netherlands Declares fully under own responsibility that the equipment specified in this declaration complies with the conditions as defined in: Machinery Directive : :2006/42/EC EMC Directive...
