Camelot Traditional One Piece Party Canopy Assembly Instructions

CAMELOT

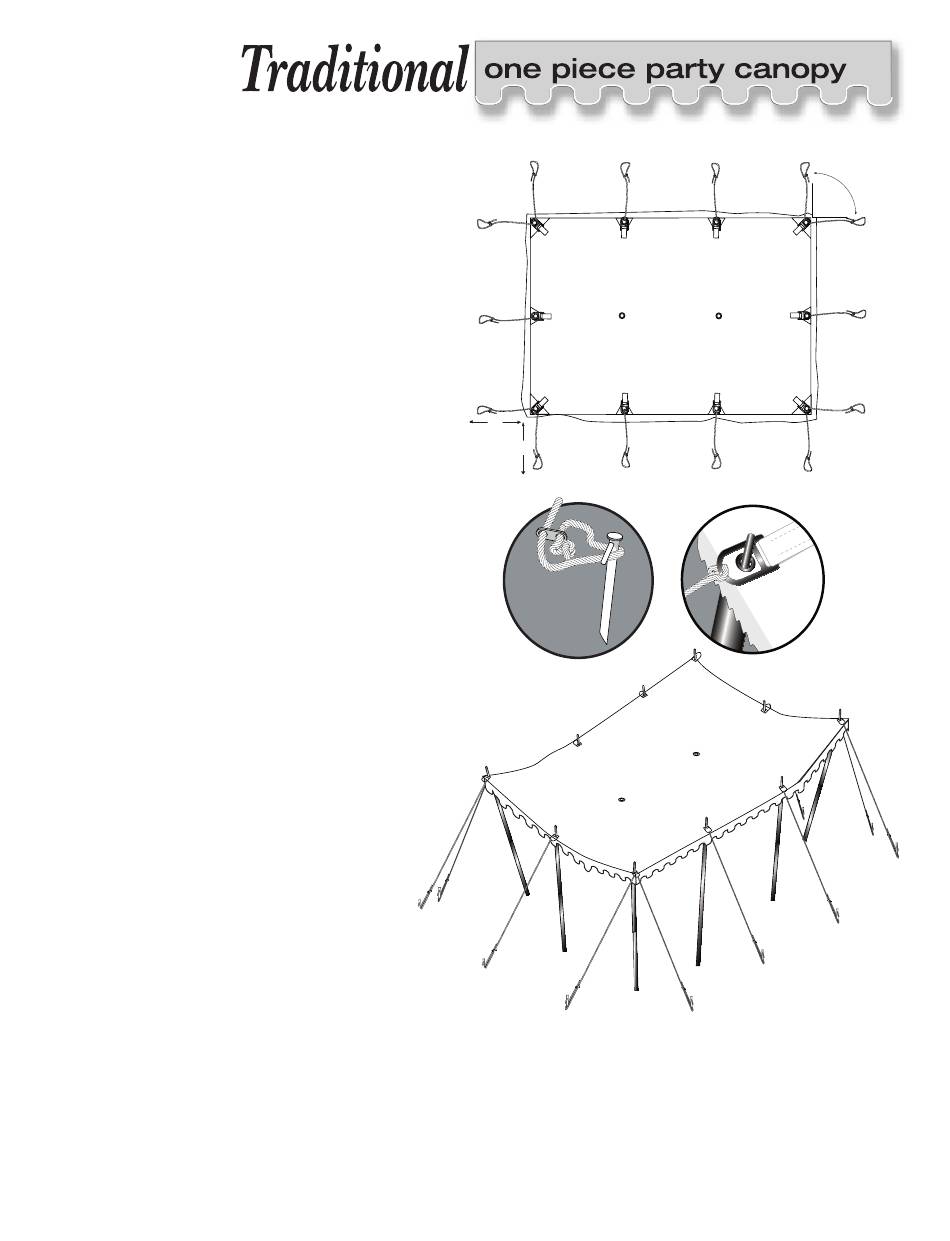

ASSEMBLY [ 20'x30' SHOWN ] :

1. Inspect the site and make sure the area
is level, free of utilities and overhangs.
Unload poles and tent bundles.
2. Lay the canopy out, on
with the top side up. Stretch and
square the fabric to remove slack. Pull
the guy ropes out from the canopy.
See fig.1.
• Thread a guy rope through a hole in
the rope slider. Thread the rope end
through the remaining hole in the rope
slider. To work properly, the guy rope
must enter the slider from the same
side each time- as illustrated. Repeat
with remaining guy ropes and sliders. See
fig.2.
3. Drive the stakes 4' out and at a slight
angle away from the canopy. Stake the
corners first, using two stakes placed at
90˚ from each corner. See fig.1. Continue
staking until all guy ropes are at 4'. Be
sure to leave enough slack in the guy
ropes to raise the poles.
4. If using aluminum poles, assemble them
and make sure each snap button is
secured.
5. Install the side poles from the
underside of the canopy. Insert
pole pins up through both the
grommet and D-ring. See fig.3.
Stand the poles up at a 60˚ angle
with their base toward the center of
the tent. Set the corner poles first, then
the side poles. See fig.4.
Blue Tarp provided
CAMELOT SPECIAL EVENTS & TENTS, INC.
23 North Avenue
Tel: 781-246-0101 Fax: 781-246-0009
Web Site: www.camelotspecialevents.com
Blog: camelotspecialevents.blogspot.com
4'
fig.1
4'
fig.2
Wakefield, MA 01880
Page 1
90.0ϒ
top view
fig.3
fig.4
