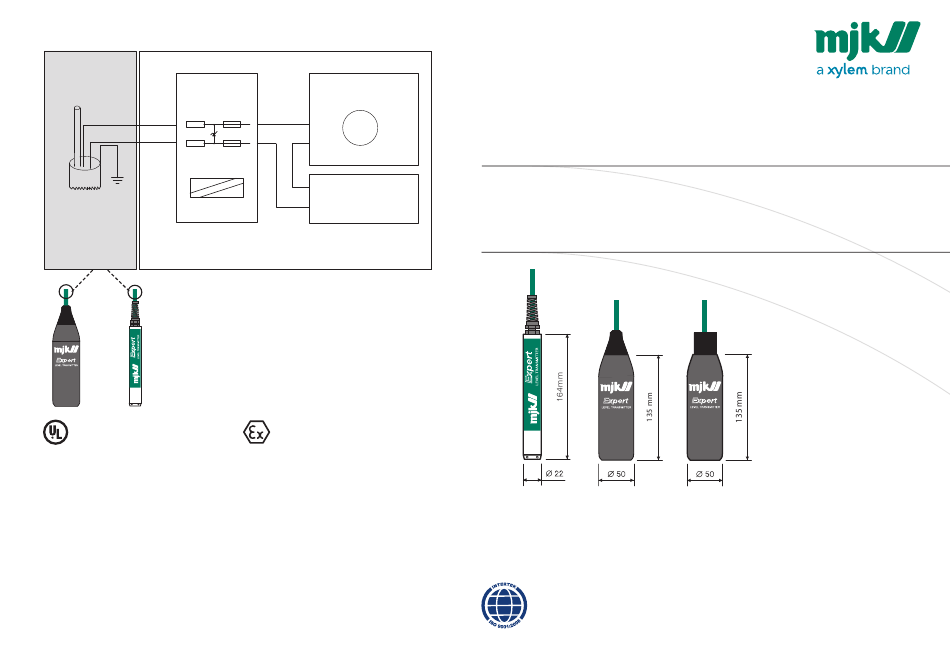

Control Drawing 5222
Hazardous Area
Non-Hazardous Area
Class I Division 1 Group A-D
Zone 1 or 2
Gas groups IIA, IIB or IIC
Zener barrier
Ventilating tube
+
Wire (1) Red
-
Wire (2) Brown
Shield
Wire (3)
Black
or EX isolator
Ventilating tube
Applicable Ex-standards:
shall be terminated
UL 913, 8th Ed., Rev. 2013
before exiting the
UL 60079-0, 6th Ed. Rev. 2013 (as referenced by UL 913)
UL 60079-11, 6th Ed., Rev. 2013 (as referenced by UL 913)
hazardous area !
Model 3400
Model 1400
Class I, Division 1, Group A-D T4/T5/T6
Specific conditions for use
• Before taking into use, the user shall make an evaluation of the compatibility between process media
and the materials in the 1400 or 3400 Expert
TM
• The equipment must be connected via an approved or certified interface/zener barrier placed out
side the hazardous area.
• For installations in which both the Ci and Li of the connected apparatus exceeds 1% of the Co and Lo
parameters (excluding the cable), then 50% of Co and Lo parameters are applicable and shall not be
exceeded.
• For model 3400 Expert
Level Transmitter: Warning - Clean only with a damp cloth to prevent the
TM
possibility of electrostatic discharge.
The maximum length of the cable is calculated from the Expert pressure transmitters internal capacity
(3,5 nF) and internal self-induction (7 μH). The cable capacity (MJK 0,8nF/m) and the self-induction (MJK
1.5 μH/m) is added.
The 2 values are added to calculate the total capacity and the total self-induction. The Ex isolator or
Zener barrier is marked with the maximum capacity and self-induction for the connection. These two
values must never be exceeded.
Manufactured by MJK Automation ApS, Blokken 9, DK-3460 Birkerød, Denmark
Power supply
+
+
-
-
-
Apparatus
+
Conform to IEC 60079-11 6.3.13
CENELEC EN 60079-0:2012+A11:2013
IEC 60079-0 Ed. 6
CENELEC EN 60079-11:2012
IEC 60079-11 Ed. 6
The user shall check the compatibility between the
process media and the materials of the apparatus.
Ratings:
Vmax(Ui) = 30Vdc
Imax(Ii) = 0.101 A
Pmax(Pi) = 0.75 W
C i 3.5 nF + C cable
L i 7 µH + L cable
MJK CABLE:
C Cable : 0,8 nF / m
L Cable : 1,5 µH / m
II 2G Ex ia IIC T6 (-20°C≤Ta≤40°C)
II 2G Ex ia IIC T5 (-20°C≤Ta≤50°C)
II 2G Ex ia IIC T4 (-20°C≤Ta≤80°C)
Demko 06 ATEX 137949X
Level Transmitter.
Expert™ 1400 / Expert™ 3400
Submersible Hydrostatic Level Transmitters
CE Certificate of conformity
This product complies with the requirements concerning electromagnetic compatibility (EMC) stipulated in Council
directive no. 89/336/EEC, 2004/108/EC, 1999/EC, on the approximation of the laws of the Member States relating
to electromagnetic compatibility.
We declare that the product complies to the values stipulated in EN 61000-6-4 2007-02-19, EN 61000-6-2 2005-09-08,
EN 600079-0 : 2012, EN 60079-11 : 2012.
MJK Automation
Blokken 9
DK-3460 Birkerød
Denmark
Connect, Mµ Connect, Chatter, MagFlux, Oxix, pHix compact, Shuttle and SuSix are registered trademarks of MJK Automation ApS.
As our products are developed continuously, we reserve the right to make any alterations without prior notice © 2015 Xylem, Inc.
MANUAL
EN 2.76/2.77 Expert 1400/3400 1812
