model number: 399-0992-0
IMPORTANT:
Please keep the original box, packaging and receipt.
Before operating this unit, please read this manual thoroughly
and retain it for future reference.
If you must store your pressure washer in a place where the
temperature is below 41°F (5°C), you must apply the winterizing
procedure to protect it. Failure to winterize the unit may
permanently damage the pump and void the warranty.
VE17-Certified-Pressure-Washer-EN.indd 1
ELECTRIC
PRESSURE WASHER
OPERATOR'S
MANUAL
VERSION NO. 00
MODEL NUMBER: VE17
®
2019-01-18 10:17 AM
Advertisement
Table of Contents
Summary of Contents for CERTIFIED 399-0992-0
- Page 1 ® model number: 399-0992-0 ELECTRIC PRESSURE WASHER IMPORTANT: Please keep the original box, packaging and receipt. Before operating this unit, please read this manual thoroughly OPERATOR’S and retain it for future reference. MANUAL If you must store your pressure washer in a place where the VERSION NO.
-
Page 2: Read Before Using
399-0992-0 | contact us 1-844-428-7277 IF ANY PARTS ARE MISSING OR DAMAGED, OR IF YOU HAVE ANY QUESTIONS, PLEASE CALL OUR TOLL-FREE HELPLINE AT 1-844-428-7277. Read and understand this instruction manual thoroughly before using the product. It contains important information for your safety as well as operating and maintenance advice. -
Page 3: Table Of Contents
Taking a Break Winterizing and Long-term Storage Cleaning and Maintenance Troubleshooting Technical Specifications Warranty SAVE THESE INSTRUCTIONS This manual contains important safety and operating instructions. Read all instructions and follow them with use of this product. VE17-Certified-Pressure-Washer-EN.indd 3 2019-01-18 10:17 AM... -
Page 4: Important Precautions-Read First
399-0992-0 | contact us 1-844-428-7277 WARNINGS • Do not stand on unstable surfaces. Stand with both feet balanced at all times. When using this product, basic precautions • Prior to starting the pressure washer in should always be followed: cold weather, be sure ice has not formed •... -
Page 5: Safety Features And Electrical Power Information
Replacement parts of a double-insulated product must be identical to the parts they replace. A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE INSULATED” . The symbol “ ” may also be marked on the product. VE17-Certified-Pressure-Washer-EN.indd 5 2019-01-18 10:17 AM... - Page 6 399-0992-0 | contact us 1-844-428-7277 USE A SUFFICIENT GAUGE: The pressure washer is equipped with a stop device that will sense when the trigger on Maximum cable length: 50’ (15.2 m). Only the gun is released. It will open the power use 12 or 14 AWG rated extension cords.
-
Page 7: Parts List
VE07-020-0090 Gun assembly XE03-020-0090 Foam blaster XE20-060-0000 VE15-000-0003 High-pressure hose Screw VE17-070-0021 Water filter Pre-attached on the machine Cleaning needle Pre-attached on the manual * Hand crank and high-pressure hose come pre-attached on the unit. VE17-Certified-Pressure-Washer-EN.indd 7 2019-01-18 10:17 AM... -
Page 8: Assembly And Operating Instructions
399-0992-0 | contact us 1-844-428-7277 SURFACE PREPARATION CAUTION Before starting any cleaning task, it is • Never use the pressure washer to draw in important to inspect the area for objects water contaminated with solvents that could create a hazard. Remove any (e.g., paint thinners, gasoline, oil, etc.) - Page 9 ® Fully unwind and detach hose from the reel. Attach the high-pressure hose to the gun and the pump outlet (hand tighten only). VE17-Certified-Pressure-Washer-EN.indd 9 2019-01-18 10:17 AM...
- Page 10 399-0992-0 | contact us 1-844-428-7277 Set the 3-in-1 wand spray nozzle to the desired spray pattern for the following purposes: 0° For tough spots and grimes (e.g., concrete surfaces) 15° For medium- and heavy-duty cleaning tasks (e.g., driveway) 40°...
- Page 11 ® Attach the garden hose to water supply and turn water on. Make sure the main switch is in OFF (O) position. Completely unwind the power cord and plug the unit into an outlet. VE17-Certified-Pressure-Washer-EN.indd 11 2019-01-18 10:17 AM...
- Page 12 399-0992-0 | contact us 1-844-428-7277 Depress the trigger until there is a steady stream of water. Turn the main switch to ON (I) position, and the pressure washer is ready to operate. CAUTION Drain unit after each use (for storage): remove water connection, turn ON the machine for a few seconds and press gun trigger to bleed remaining water in the pump.
-
Page 13: Working With Foam Blaster
1/4 turn clockwise. CAUTION Only use cleaning detergents recommended for pressure washers. Damage may occure to painted surfaces if chemicals are allowed to dry on them. Wash and rinse a small section at a time. VE17-Certified-Pressure-Washer-EN.indd 13 2019-01-18 10:17 AM... -
Page 14: Shutting Down And Cleaning Up
399-0992-0 | contact us 1-844-428-7277 SHUTTING DOWN AND CLEANING UP (If you are not using detergent, go directly to Step 2.) When you have finished using the detergent injection system, fill detergent bottle with clean water. Siphon water at low-pressure for one minute so that all detergent is flushed through the system. -
Page 15: Taking A Break
Bleach, chlorine products or other corrosive chemicals; • Liquids containing solvents (e.g., paint thinners, gasoline, oils); • Tri-sodium phosphate products; • Ammonia products; or • Acid-based products. These chemicals will harm the unit and will damage the surface being cleaned. VE17-Certified-Pressure-Washer-EN.indd 15 2019-01-18 10:17 AM... -
Page 16: Winterizing And Long-Term Storage
399-0992-0 | contact us 1-844-428-7277 OPTIMUM WINTERIZING PROCEDURE Winterizing your pressure washer will help protect and prolong its life. We strongly recommend you follow the below steps using Pressure Washer Antifreeze (039-8602-0). This will keep the internal parts lubricated, protected from rust, and prevents the pump from freezing. -
Page 17: Cleaning And Maintenance
The inlet adaptor comes pre-attached on the water inlet. 2. Rinse the screen until it is free of debris and blockage. 3. Place the screen back to prevent any foreign matter from entering the pump. VE17-Certified-Pressure-Washer-EN.indd 17 2019-01-18 10:17 AM... -
Page 18: Troubleshooting
399-0992-0 | contact us 1-844-428-7277 Disconnect the machine from the power source before making any repairs. SYMPTOM CAUSE SOLUTION Motor will not start. On/Off switch is in the OFF (O) position. Turn switch to the ON ( | ) position. - Page 19 Check that all fittings are tight. (up to 10 drops per minute Water seals are damaged or worn. Call the toll-free hotline. is permissible). Oil is dripping. Oil seals are damaged or worn. Call the toll-free hotline. VE17-Certified-Pressure-Washer-EN.indd 19 2019-01-18 10:17 AM...
- Page 20 399-0992-0 | contact us 1-844-428-7277 SYMPTOM CAUSE SOLUTION Motor buzzes but fails to run. Supply voltage below minimum. Verify that only the pressure washer is running on this circuit. System has residual pressure. Turn unit OFF, squeeze trigger on spray wand to release pressure, then turn unit ON.
-
Page 21: Technical Specifications
High-Pressure PVC Hose: 20’ (6 m) US GPM (US gal/min): 1.4 US GPM Current Drawn: 13 A Inlet Water: Cold Tap Water CU (cleaning units): 2520 Motor: Maintenance Free Universal Motor Wheels: 7” (17.8 cm) VE17-Certified-Pressure-Washer-EN.indd 21 2019-01-18 10:17 AM... -
Page 22: Warranty

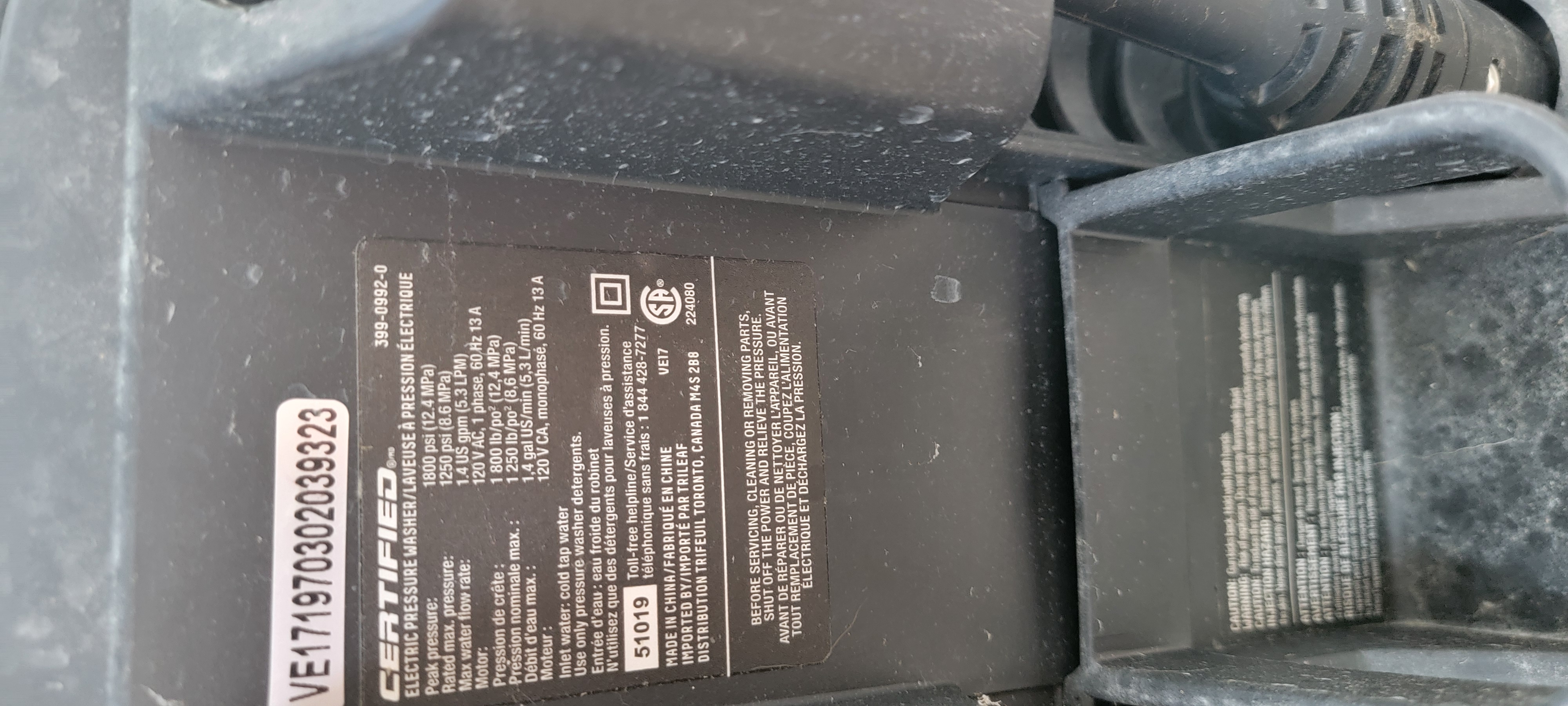

399-0992-0 | contact us 1-844-428-7277 PRODUCT WARRANTY Always keep your receipt as proof of purchase. We’re here to help! If you have any questions or comments, call our toll-free hotline 1-844-428-7277. Have your serial number ready. The serial number can be found on the back plate, located on the rear of the unit.
