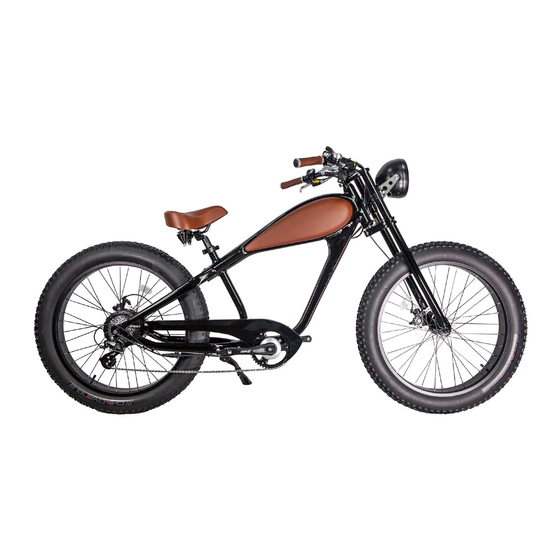

Civibikes CHEETAH User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TM
Cheetah
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHEETAH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Civibikes CHEETAH

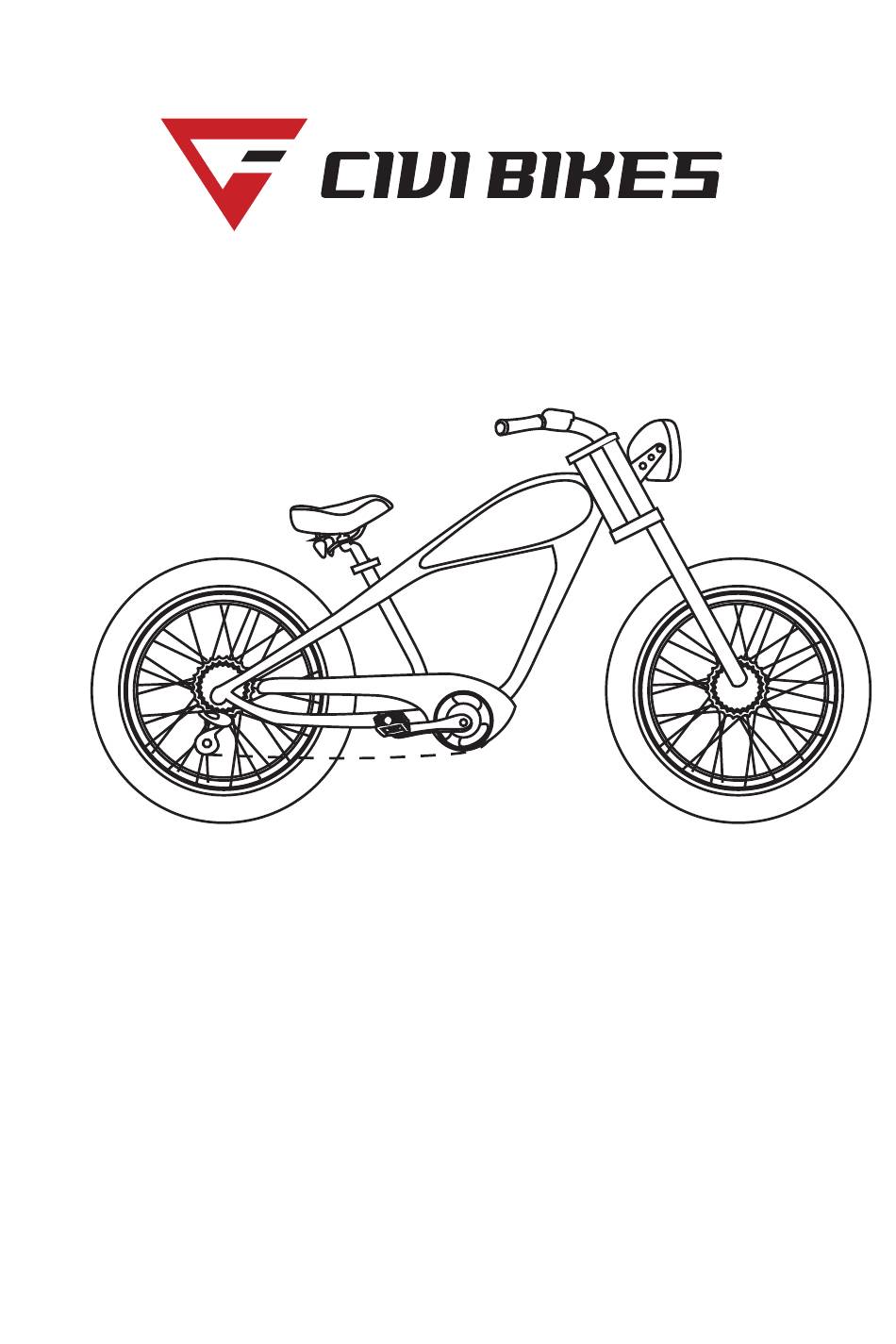

  • Page 1 Cheetah USER’S MANUAL...
  • Page 2 CIVIBIKES™ by email to info@civibikes.com or call (909)215-4815 to check whether you need a return and refund. Get more information about warrenty and refurn policy on Page XXX. Open the carton box and take out your Cheetah carefully. The package has following items: FRONT...

  • Page 3: Install Handle Bar

    Install Handle Bar Loosen the bolts to put handle bar in between. Use the reserved 4 bolts to install handle bar as picture shown. Adjust handle bar angle and fasten the 4 bolts one by one to 20N.M.
  • Page 4 headlight frame Install Head Light Use reserved bolts and bushing to install head light. Adjust height and angle, then fasten all the bolts. Connect the light power cable.

  • Page 5: Install Front Wheel

    Install Front Wheel Make sure the brake disc is placed in the center of caliper gap and front wheel can rotate freely without any noise. When the brake disc is not in the gap, DO NOT pull brake lever.

  • Page 6: Install Pedals

    Install Pedals Use the pedal marked with an “L” on the left side and the right pedal marked with an “R” on the right side (side with drivetrain gears). The right-side pedal has a right-hand thread (removes counterclockwise, installs clockwise); the left side pedal has a left-hand thread (removes clockwise, installs counterclockwise).
  • Page 7 Insert, Remove or Adjust Saddle Height...
  • Page 8 Charge Battery before Your First Ride *On charger adapter, red light stands for charging, while green light stands for charging finished.
  • Page 9 Some Battery Tips Lithium battery capacity drops down by times they’ve been used for. CIVIBIKES™  genuine battery provides 600~800 charging cycles. Stay away from extreme environment. Most suitable temperature for battery is 14  ℉~113℉. Do not approach heat, fire, inflammable and prevent battery from falling and getting wet.
  • Page 10 Power ON/OFF your battery Beside the charging port, you’ll find a separate switch to power ON/OFF your battery. Make sure switch on before your ride, and off after ride. It helps protect the battery from draining itself.
  • Page 11 controller receiving error KM/H 00100 120.6Km TRIP Head Light Control On the handle bar, there is a separate switch for head light. Push the button down to: Downside: Low Beam  Upside: High Beam  Don’t forget to switch off the light and battery when you finish riding. This operation helps a lot with your battery lifetime.
  • Page 12 Press + or – to adjust PAS speed level. There are 5 PAS levels by defalt.  Hold Set button for 2 seconds to enter setting interface, where you have bunch of  options to customize. For more advanced settings, visit www.civibikes.com/pages/setup ...

  • Page 13: Troubleshooting

    Troubleshooting If there are errors about the electronic control system, the error code will appear automatically. Error Code Definition Solution Current error or MOS damaged Replace controller Disconnect throttle wire(located in controller box, or in front of handle bar if the bike has water Throttle Abnormality proof quick release...
  • Page 14 Disconnect 2 brake lever wires(located in front of handle bar to see whether the ERROR code Brake Abnormality disappears. If yes, replace the brake lever and reconnect brake lever wire to controller. Fully charge the Under voltage battery Do not block motor Motor stalling from rotating freely communication controller...
  • Page 15 CIVIBIKES™ LIMITED WARRANTY To make a warranty claim always keep handy the vehicle model, date of purchase, vehicle serial number as well as information from the retailer where you purchase the vehicle from. The warranty is limited to the terms listed below: Motor and controller: 1 year for parts.
  • Page 16 If the warranty is void for any reason the customer shall bear any repair or replacement costs resulting from vehicle misuse, negligence or abuse. Always follow care and preventive maintenance procedures Always keep receipts from any services performed to the vehicle by an authorized distributor or service center.
  • Page 17 A MOTIV MOTORS, INC COMPANY 4055 E. GUASTI RD., STE 111, ONTARIO, CA 91761 info@civibikes.com +1 (909)215-4815 Get more information of promotion, coupon and new product launch at: www.civibikes.com...
