Summary of Contents for Bolide BN2600-ACTC

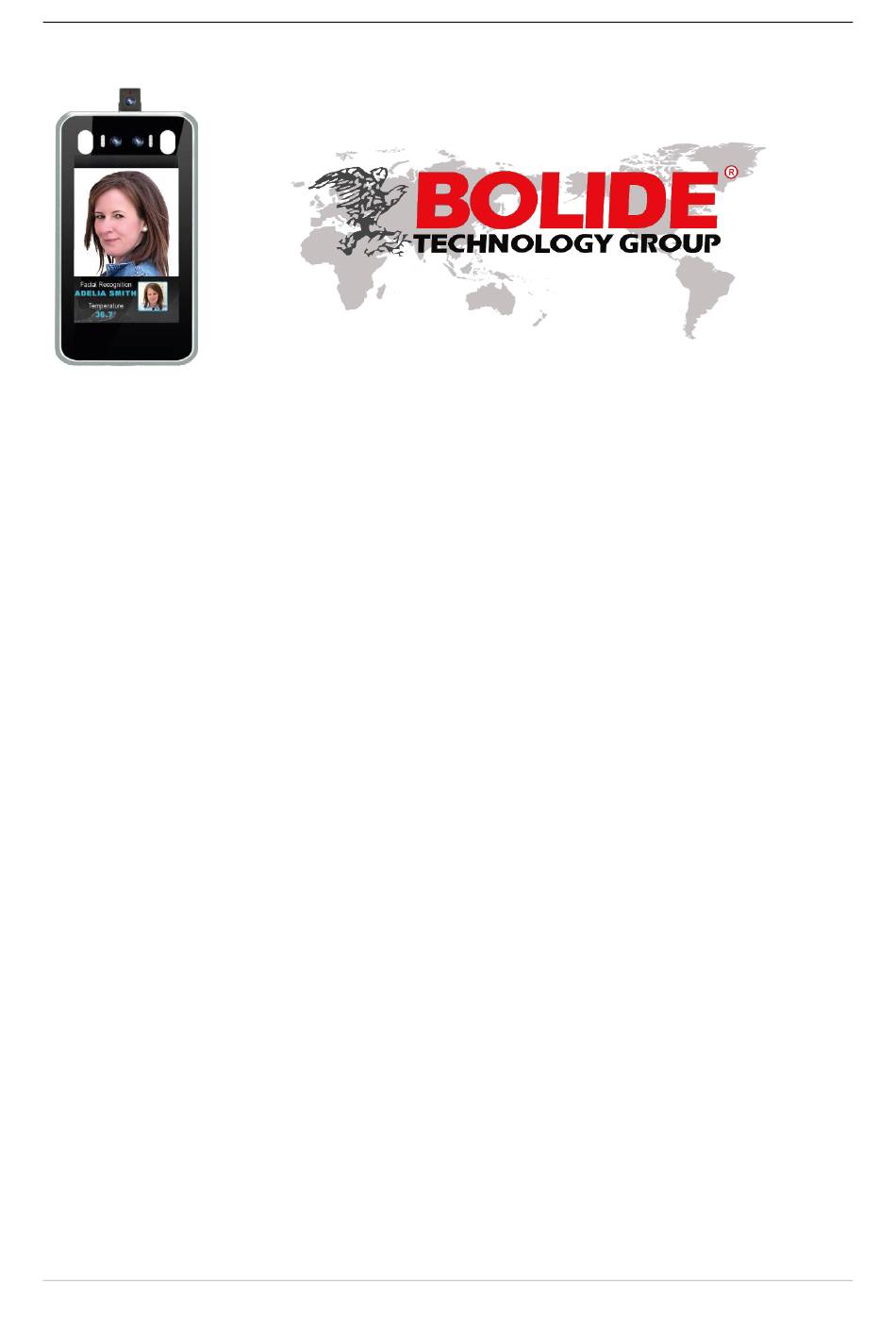

  • Page 1 User Manual BN2600-ACTC User Manual...
  • Page 2 User Manual Introduction Product Overview: . Non-contact temperature taking automatically while recognizing face, efficient and effective. · Taking Human Temperature range: 30-45℃, ±0.3 ℃ accuracy. · Detecting and reminding if people is not wearing mask (when mask detection is ON) ·...
  • Page 3 User Manual Dimension (cm) Connection Diagram...
  • Page 4 User Manual Web Browser Settings 1 System Login Open a browser and enter IP address of the access control camera, Default IP address: 192.168.1.88. Default user name: admin, password: admin. Pic. 1 Remind: Don’t forget to change password after log in, and write down the password to avoid forgetting. 2 Main Interface The main interface is shown as Pic.
  • Page 5 User Manual Pic. 3.1.1 【System information】 Display device name, device number, core version and other information. Device name can be user-defined. After parameter settings, click on 【Save】 to validate them. 【Device language】After other languages are selected, close web browser and log in to device again. 3.1.2 User Management The setup interface of user management of the access control camera is shown in Pic.
  • Page 6 User Manual After parameter settings, click on 【Save】 to validate them. Important: Username and password must be a character string with 1-16 characters which consists of letter, figure, underline or point (.). Please pay attention to capital and lower-case form. 3.1.3 Time Settings The time settings of the access control camera is shown in Pic.
  • Page 7 User Manual 3.1.4 LAN Setting Parameter The LAN Setting of the access control camera is shown in Pic. 3.1.4: Pic. 3.1.4 【DHCP】 If DHCP function of Router is enabled, after this setting is selected, the access control camera will automatically obtain the IP address from the router. 【IP address】...
  • Page 8 User Manual Pic. 3.1.6 【P2P service】 Sign of devices of UUID searched by mobile APP in an LAN, or QR code of scanning device, image of devices can be viewed by mobile APP. Mobile apps is “ikan”. 3.1.7 Face Recognition• Parameter Settings 【Enable】...
  • Page 9 User Manual 【Time 1/2】User can define two periods. To validate it, tick 【Time 1/2】. Default: Two periods are enabled. Default time: 00：00-23：59. 【Sensitivity】 Setting range: 0-10. Sensitivity refers to sensitivity of face recognition. When sensitivity is too high, it may snapshot the same face repeatedly or snapshot by mistake.
  • Page 10 User Manual Note: When many people pass the gate, only the first person (face has the maximum pixel in the screen) is captured. According to set frame interval, a face will be captured at certain frames interval and uploaded to FTP server.
  • Page 11 User Manual 【Picture upload format】 FTP picture can be uploaded in the format of 【Upload face】 or 【Upload face and original picture】. 【Face picture quality】 Quality of picture uploaded by FTP is 99 by default. The larger the value is the better the picture quality is.
  • Page 12 User Manual Pic. 3.1.8-2 【Numbers recognition mode】If face picture is not matched in the list within the set recognition times (e.g.: set times recognition value is 5 and face is matched within 5 times of capturing, contrast information will be displayed and recognition will be stopped.
  • Page 13 User Manual Pic. 3.1.8-3 【Mask detection】 Open or Close is optional. It is OFF by default (note: If mask detection is OFF, the mask status on record is always NO). 【Temperature correction】 Intelligent algorithm and low/high temperature algorithm. Under intelligent algorithm mode, compensation temperature can be set.
  • Page 14 User Manual Pic. 3.1.9-1 Wiegand output: it can set up Wiegand output off, or turn on Wiegand output, Wiegand 26 or Wiegand 34 is optional; Wiegand output is activated only when face is recognized. Temperature detection mode only will not activate Wiegand output.
  • Page 15 User Manual Pic. 3.1.9-4 Repeated face skip time: It is to set the same face filtration time of the same list, it is 3s by default. Temperature measurement mode, can be selected as precision mode or quick mode, quick mode is selected when there are many visitors in the application field and fast pass is priority.
  • Page 16 User Manual Pic. 3.1.11 Click on 【Restore factory settings】 and enter a password according to prompt message to restart the device and restore factory settings. 【Network 】 Tick to restore default network parameters. It is 192.168.1.88 by default. 【User name】 Tick to restore default user name and password. It is admin/admin by default. 3.1.12 Device Restart The setup interface of device restart of the access control camera is shown in Pic.
  • Page 17 User Manual Format the EMMC of device will cause the records and list information deleted. 3.1.14 Audio Parameters. Input and output Volume can be adjusted here. 3.2 Server Parameter Set up relevant server parameters in the menu, as shown in Pic. 3.2 (picture version is HTTP version V1.1.14 by default.
  • Page 18 User Manual 【Face information push address】 Server address receiving face information. Fill in it and click on the right connectivity test to display the result in the right box. 【Contrast push】 Control of upload contrast result type among successful contrast upload, all people upload, blacklist upload, whitelist upload, VIP list upload, stranger upload and non-whitelist upload.
  • Page 19 User Manual Pic. 3.3 【Capture and upload】Capture the switch uploaded. 【Capture information upload address】 Server address receiving capture information. 【Contrast upload type】 Control of upload contrast result type among successful contrast upload, all people upload, blacklist upload, whitelist upload, VIP list upload, stranger upload and non-whitelist upload. It is successful contrast upload by default.
  • Page 20 User Manual 【Instruction acquisition interval (s)】 Time interval for acquiring instructions, unit: Second. 【Active address acquisition address】 Address for actively acquiring tasks. 【Task result report address】 Address for reporting task result. 【Sign verification】 Sign verification ON/OFF. Default: OFF. 【Operation mode】 Offline mode and online mode are optional. Default: Offline mode. 【HTTP version】...
  • Page 21 User Manual 4 List Management 4.1 List Management The face library added can be searched and white list can be added to the library in different ways Pic. 4.1-1 Face list is searched in different ways 【Condition search】Carry out accurate search through start time, finish time, list type, sex, age and access card number.
  • Page 22 User Manual Note: Picture name and numbering rule: Picture number cannot be repeated 4.2 Batch import Batch import can be used to refresh list and import white list and VIP list by batches Pic. 4.2-1 Pic. 4.2-2 Step 1: Click on Batch import Step 2: Click on Browse and select a picture to be imported according to storage path Step 3: Select access card number generation method among public card number, automatic generation and manual input.
  • Page 23 User Manual Pic. 5 6 Attendance Record Attendance record of any day or any period can be queried Pic. 6 1. Time and workday settings, any period of a day can be set as attendance time and any time of a week can be set as workday 2.

  • Page 24: Appendix 1 Network Port Occupied By Ip Camera

    United States Headquaters – 468 S. San Dimas Ave., San Dimas, CA 91773 Toll Free: (800) 355 0895 | Tel: (909) 305 8889 | Fax: (909) 305 0999 Bolide Technology Group is an ISO 9001:2015 Certified Company www.bolideco.com...
  • Page 25 9. The measured temperature is inaccurate United States Headquaters – 468 S. San Dimas Ave., San Dimas, CA 91773 Toll Free: (800) 355 0895 | Tel: (909) 305 8889 | Fax: (909) 305 0999 Bolide Technology Group is an ISO 9001:2015 Certified Company www.bolideco.com...
  • Page 26 2 United States Headquaters – 468 S. San Dimas Ave., San Dimas, CA 91773 Toll Free: (800) 355 0895 | Tel: (909) 305 8889 | Fax: (909) 305 0999 Bolide Technology Group is an ISO 9001:2015 Certified Company www.bolideco.com...
  • Page 27 DirectX is not installed correctly or hardware is not supported. United States Headquaters – 468 S. San Dimas Ave., San Dimas, CA 91773 Toll Free: (800) 355 0895 | Tel: (909) 305 8889 | Fax: (909) 305 0999 Bolide Technology Group is an ISO 9001:2015 Certified Company www.bolideco.com...
