TriangleTube PGRKIT21 Quick Manual

Elite and performance operating thermostat replacement

Advertisement

ELITE and PERFORMANCE
Operating Thermostat Replacement
Kit Part Number: PGRKIT21

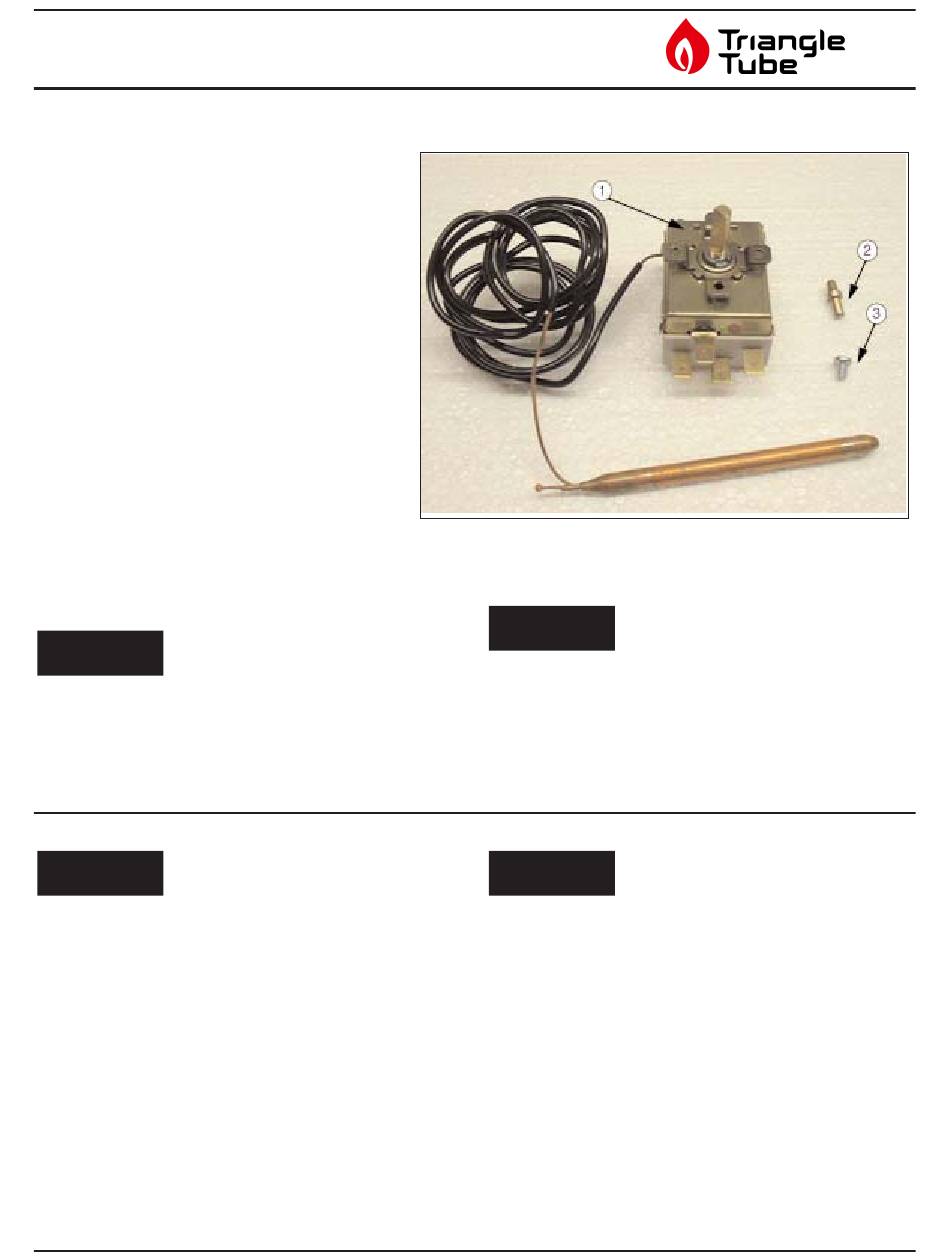

Included in the Kit:

1- (1) Thermostat
2- (1) Stop Pin Screw
3- (1) Machine Screw

Tools required:

-
Wire Cutters
-
Screwdriver - #3 Phillips
-
Screwdriver - #3 Slotted
-
Adjustable Wrench
WARNING
Indicates a potentially hazardous situation
which, if ignored, can result in serious
injury or substantial property damage.
WARNING
Failure to follow instructions below can result
in severe personal injury or damage if ignored.
Instructions are for a qualified installer/ ser-
vice technician.
Read all instructions before proceeding.
Follow instructions in proper order.
NOTICE
Indicates special instructions on installa-
tion, operation or maintenance, which are
important to equipment but not related to
personal injury hazards.
WARNING
For your safety, turn off electrical power
supply at service panel before proceeding to
avoid possible electrical shock hazard.
Failure to do so can cause severe personal
injury or death.
