UPC 1454A Assembly Instructions Manual

UPC 1454A Assembly Instructions Manual

Icon 48 pocket spinner
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

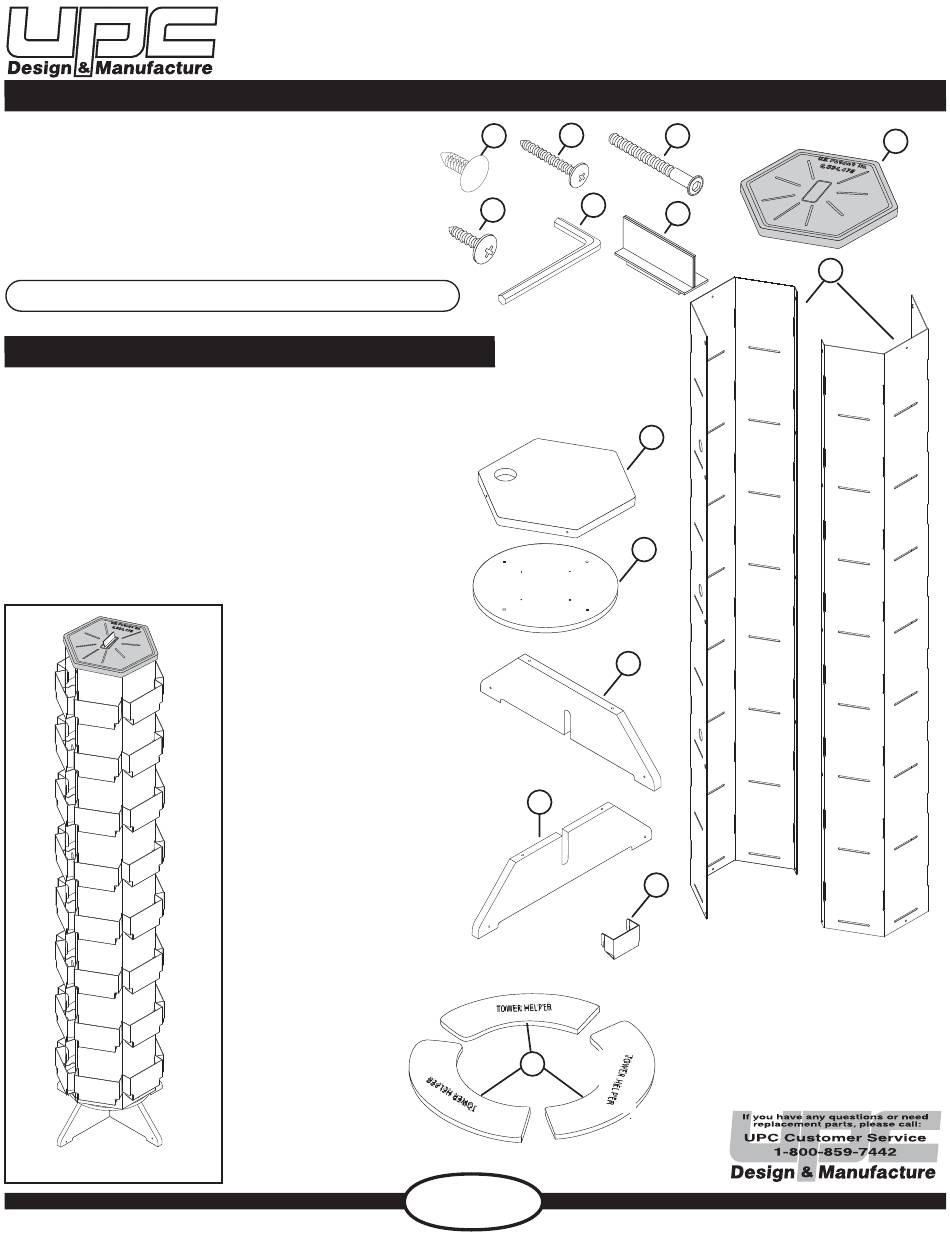

PARTS BAG
PART
Push Pin
Long Trusshead Screw
Connector Bolt
Short Trusshead Screw
Hex Wrench
Header Clip
TOOLS REQUIRED: #2 Phillips Screwdriver
PARTS LIST
PART
Top Cap
Tower Panel
Spinner Plate
Base
X-Base Lower
X-Base Upper
Racks
Tower Helper
Finished Display
Revised 01/12/15
Assembly INSTRUCTIONS
UPC 1454A
Quantity
Reference
9
A
(1 extra)
4
B
4
C
4
D
1
E
1
F
Quantity Reference
1
2
1
1
1
1
48
3
A
B
E
D
G
H
I
J
K
L
M
N
K
N
U.S. PATENT NO.
8,534,472
Icon 48 Pocket Spinner
C
F
I
J
L
M
G
H
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1454A and is the answer not in the manual?

Questions and answers

Summary of Contents for UPC 1454A

  • Page 1 ASSEMBLY INSTRUCTIONS PARTS BAG UPC 1454A Icon 48 Pocket Spinner PART Quantity Reference Push Pin (1 extra) Long Trusshead Screw Connector Bolt Short Trusshead Screw Hex Wrench Header Clip TOOLS REQUIRED: #2 Phillips Screwdriver PARTS LIST PART Quantity Reference Top Cap...
  • Page 2 ASSEMBLY Insert X-Base Upper (L) into X-Base Lower (K) as shown below. Attach Base (J) to X-Base Assembly (K/L) using (4) Connector Bolts (C). U.S. PATENT NO. Page 2 of 7 8,534,472...
  • Page 3 ASSEMBLY Spin & align the large holes in Spinner Plate Bottom View of Spinner Plate Base (I). and Spinner Plate Spinner Plate Hole 1 Assembly (I) (shown exploded for reference) Spinner Hole 2 Hole 3 Spinner Plate Assembly (I). Hole 1 Hole 1 Hole 2 Hole 2...
  • Page 5 ASSEMBLY (finger hole) Top of Tower Panel (No Slot) close up view A. Peel protective masking off Tower Panels (H) before assembly. B. Overlap each Tower Panel (H) so the large hole of facet lies outside the small hole of (finger hole) opposite panel.
  • Page 6 This step will support Tower Panel Assembly (H) up for installation to Base Assembly. Insert (2) Tower Helpers (N) in-between Spinner Plate Assembly (I) and Base (J), as shown below. HOLES and tighten Base Base Assembly Assembly Page 6 of 7...
  • Page 7 ASSEMBLY Remove Tower Helpers (N). Peel masking off Header Clip (F) and secure to the center of the Top Cap (G). Lower Top Cap (G) on to the top of the Tower Panel Assembly (H). Attach Racks (M) by hooking the tabs into the vertical slots in the Tower Panels (H).
