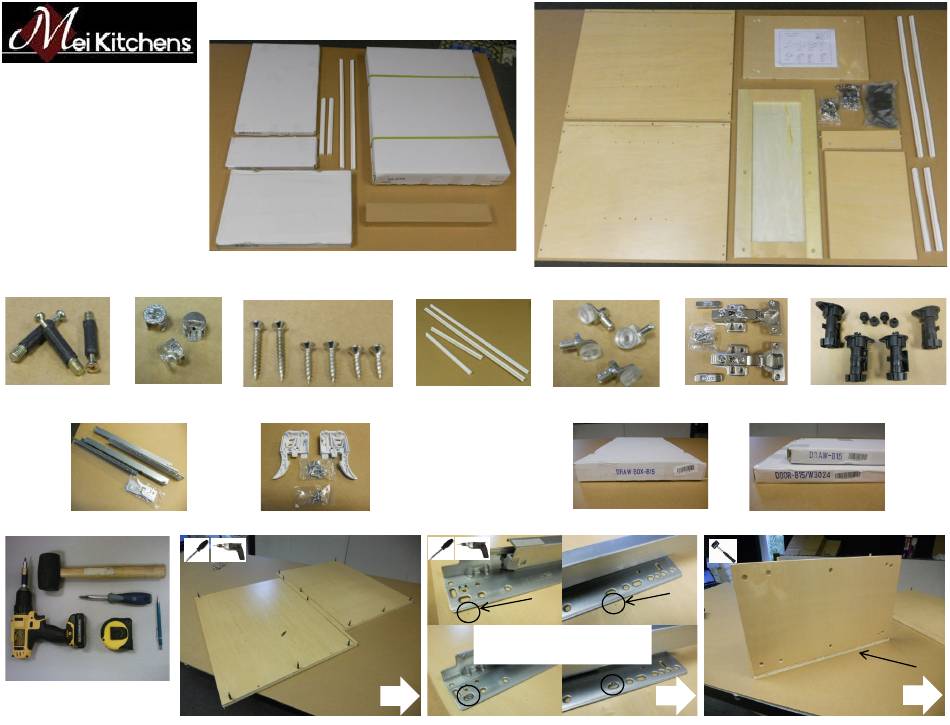

BOX BASE CABINET
DOOR "B" – BASE
DRAW "B" – BASE
DRAW BOX "B" – BASE
SLIDE - UNDERMOUNT
20" – Base Cabinets
16" – Vanity Base Cabinets
2 - STILE EDGE
Vertical pieces, actual size of given
dimension
2 - RAIL EDGE
Horizontal pieces, 1-1/2" shorter
than given dimension
CAM SCREW
CAM LOCK
SLIDE BOX SET
RECOMMENDED TOOLS
(DRILL OPTIONAL)
PATENT PENDING DOOR MATCHING SOLID WOOD
EDGE TECHNOLOGY
ASSEMBLY INSTRUCTIONS
BASE DRAWER/DOOR - B9-B21
1"
5/8"
3/8"
ASSORTED SCREWS
DRAWER "K" CLIPS
E
A
INSTALL CAM SCREWS ON
PANELS "A & E"
STILE & RAIL EDGES
SHELF SUPPORT
* SHIPPED IN LABELED
BUNDLES
INSTALL SLIDES ON "A & E"
USING PRE-DRILLED HOLES
1
B
A
E
BOX BASE CABINET
HINGES
DRAWER BOX
DOOR/DRAW FRONTS
2
D
C
F
ADJUSTABLE LEGS
B
BEGIN BUILDING ON
PANEL "A"
3
Advertisement
Table of Contents
Related Manuals for MEI KITCHENS BOX BASE CABINET
Summary of Contents for MEI KITCHENS BOX BASE CABINET
- Page 1 PATENT PENDING DOOR MATCHING SOLID WOOD EDGE TECHNOLOGY BOX BASE CABINET DOOR “B” – BASE DRAW “B” – BASE DRAW BOX “B” – BASE SLIDE - UNDERMOUNT 20” – Base Cabinets 16” – Vanity Base Cabinets 2 - STILE EDGE...
- Page 2 CAM LOCK +/- TOWARDS EDGE LEG LIP OVER STILE EDGE EDGE RAIL EDGE TAP INTO PLACE W/RUBBER MALLET BACK SIDE REAR FRONT REAR ADJUST SCREWS PLACE SHELF SECURE BASE PLATES WITH RIGHT SIDE 4-1/2” SCREWS OR PLASTIC BOTTOM INSERT PANEL INSERT SHELF LEFT SIDE SUPPORTS...
- Page 3 HINGE -> ALIGN SCREWS WITH PRE-DRILLED HOLES DOOR - B PRE-DRILLED HOLES HINGE -> SECURE LOOSELY TO ALLOW FOR DRAW - B ADJUSTMENT LATER MOUNT BOX ON SLIDES UNTIL CLIPS CLICK INTO PLACE CLICK AS FRONT AS POSSIBLE CENTER SCREWS TO ALLOW ALIGN PRE-DRILLED HEIGHT ADJUSTMENT PULL SLIDES OUT FULLY...
