Cal Flame BBQ11963 Owner's Manual

Drop-in sink
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LTR50001102, Rev. G
2/11/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBQ11963 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cal Flame BBQ11963

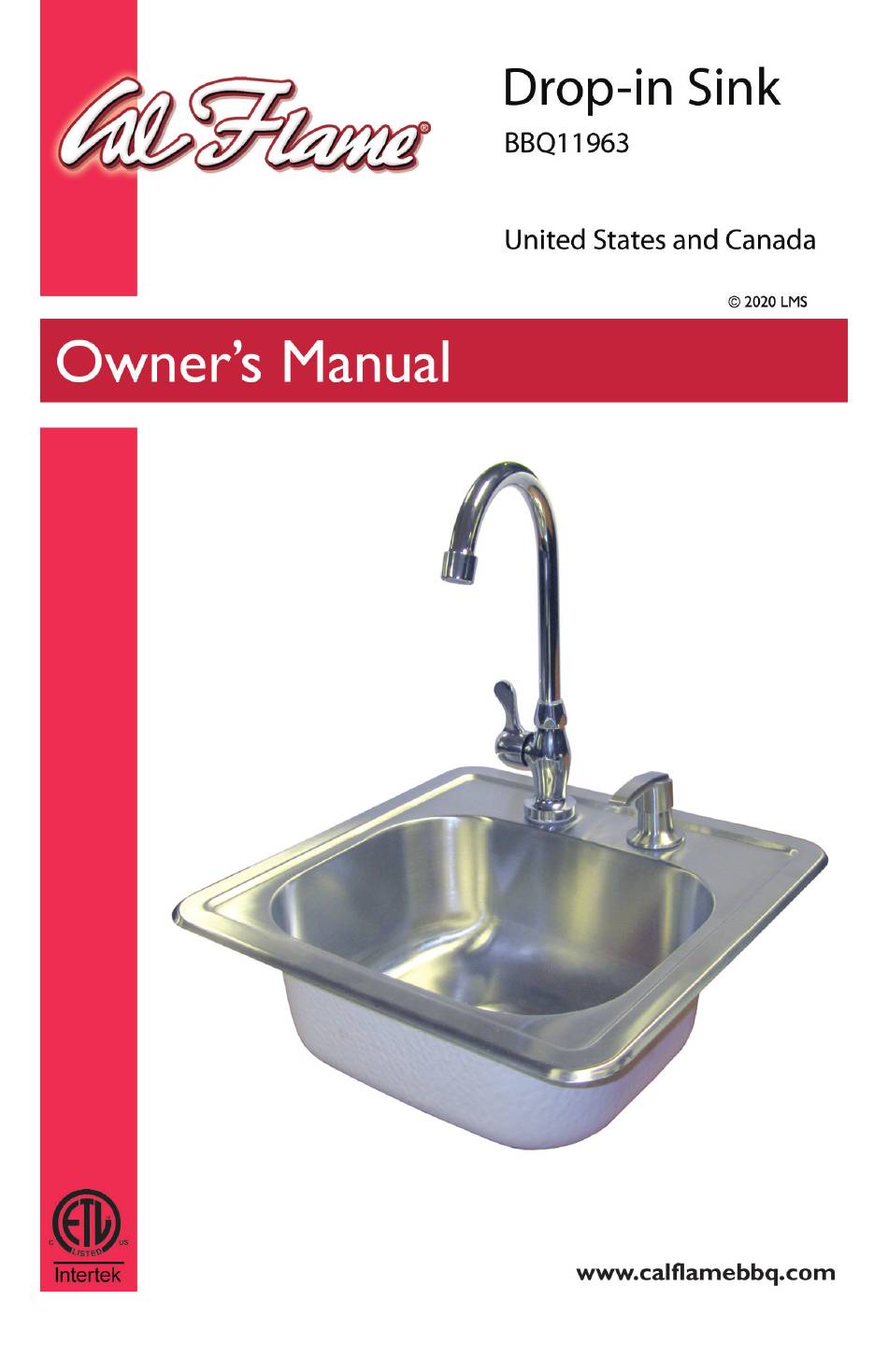

  • Page 1 LTR50001102, Rev. G 2/11/20...

  • Page 2: Table Of Contents

    If Duplication without written consent is you need additional information and/or strictly prohibited. assistance, please contact: Cal Flame ® is a registered trademark. Customer Service Department Due to continuous improvement programs, 1462 East Ninth Street all models, operation, and/or specifications Pomona, CA 91766 are subject to change without prior notice.

  • Page 3: Perform Inventory

    I. Perform inventory Part Group Item Drain Drain stop Drain plate top Drain plate bottom Top gasket Bottom gasket Drain connector Sink Sink Hold-down clamps Clamp screws Cut-out template Faucet Faucet Gasket Tie down Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...
  • Page 4 Gasket Tie down Plastic straw Drain Drain tube tube Drain tube connector Flat gasket Beveled gasket Trap Trap T Trap Trap flat gasket Drain Drain elbow elbow Drain elbow connector Beveled gasket Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...

  • Page 5: Sink Cut-Out Template

    When you create the cut-out, it is important that you ensure the cor- ners are rounded, as shown in the template, and not square. 1.50 1.50 R1.50 3.00 14.25 SINK CU 14.25 Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...

  • Page 6: Assembly And Installation

    Set top gasket and drain plate top inside sink. b. Hold the drain plate bottom in place and insert the drain pin connector. Tighten in place using a coin or a washer. Center and adjust as needed. Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...
  • Page 7 2. Attach faucet (3). Ensure gasket is directly under faucet base. 3. Attach base for the soap dispenser (4). Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...
  • Page 8 4. Install sink (2) in cut-out. Note: Sink has been removed for these pictures. a. Place sink in cut-out. b. Insert the screws in the hold-down clamps. c. Slide the clamps in place under the sink. Use a total of 8 hold-down clamps. Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...
  • Page 9 The faucet requires a ½” connecter. Note: An adaptor is not in- cluded with your sink. You will need to provide one for the size of your water line connection. Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...
  • Page 10 6. Attach drain tube (5) to drain. 7. Attach trap (6) to drain. 8. Attach drain elbow (7). Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...
  • Page 11 11. Place soap dispenser head in dispenser base. Note: You can add liquid soap to the dispenser by pour- ing it directly into the dispenser base after the bottle has been attached. Drop-in Sink BBQ11963 LTR50001102, Rev. G www.cal amebbq.com...

  • Page 12: Warning! Proposition 65 Warning: Handling The Brass

    WARNING! Proposition 65 Warning: Handling the brass material on this product exposes you to lead, a chemical known to the State of California to cause cancer, birth defects or other reproductive harm. (Wash hands after handling this product.) This product and the fuels used to operate this product (propane or natural gas), and the products of combus- tion of such fuels, can expose you to chemicals includ- ing Benzene, which is known to the state of California...
