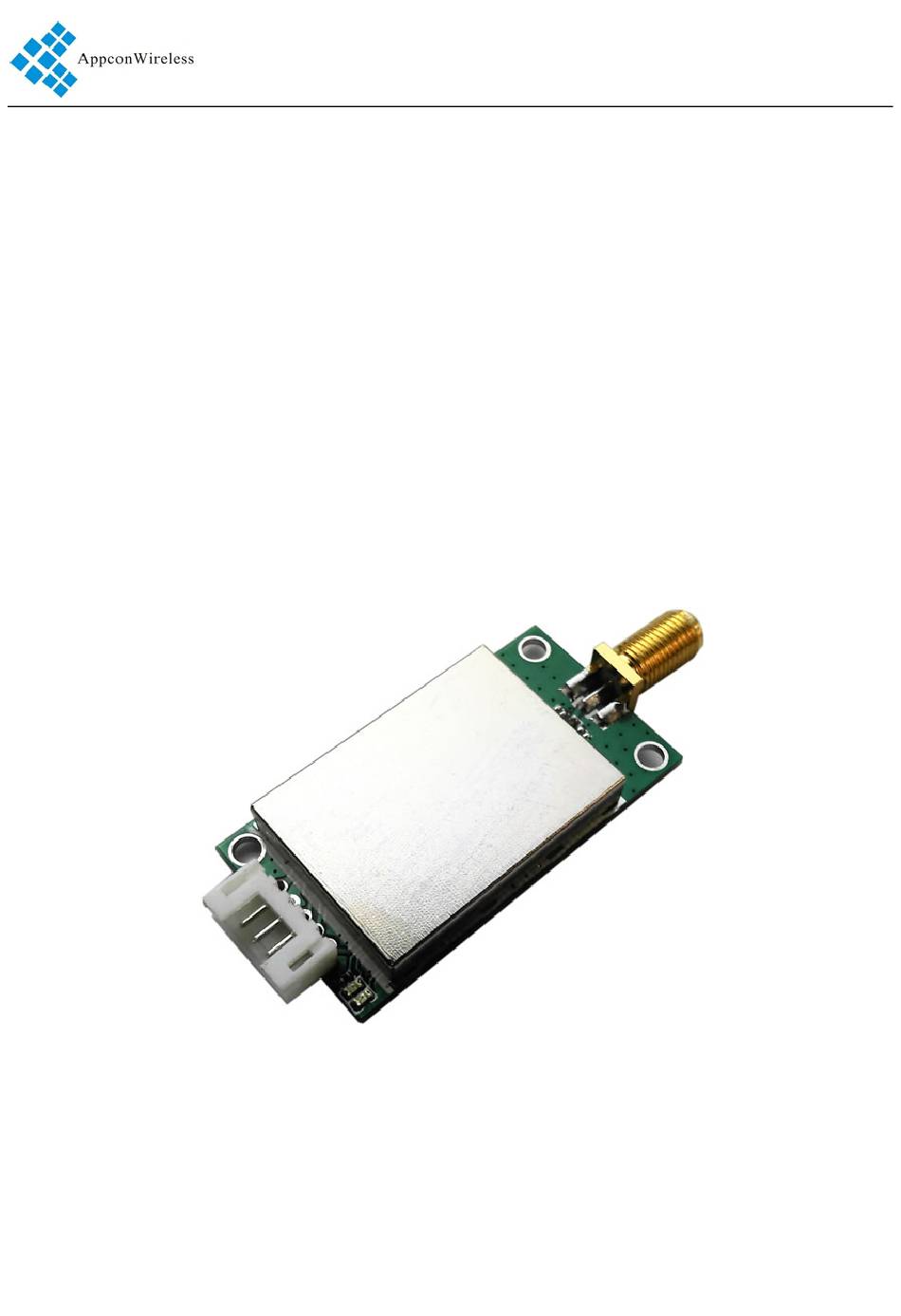

RF1276
LoRa module
V3.0
1. General
RF1276 series is a low cost, ultra-low power, high performance transparent two way semi-duplex LoRa
modulation transceiver with operation at 915Mhz band. It integrates with high speed MCU from ST and high
performance RF IC SX1276. Adopting high efficiency forward error correction with interleaving encoding
(FEC) technology, it makes anti-interference ability and reception sensitivity greatly improved. That
guarantees good performance in the harsh environment such as some industrial application. The FEC
technique is advanced and unique in radio data communication field.
RF1276 has the UART/RS232/RS485 interface, that make it is easy to implement wireless data
transmission. It is flexible for users to set the baud rate, frequency, output power, air data rate etc parameters.
It can transmit transparent data with large data buffer and also can provide over 32 channels. The compact
size makes it an ideal option for radio data communication application.
- 1 -
2018-2-12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF1276 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AppconWireless RF1276 Series

Summary of Contents for AppconWireless RF1276 Series

  • Page 1 V3.0 1. General RF1276 series is a low cost, ultra-low power, high performance transparent two way semi-duplex LoRa modulation transceiver with operation at 915Mhz band. It integrates with high speed MCU from ST and high performance RF IC SX1276. Adopting high efficiency forward error correction with interleaving encoding (FEC) technology, it makes anti-interference ability and reception sensitivity greatly improved.

  • Page 2: Lora Module

    RF1276 LoRa module V3.0 2. Features  5000 meters of communication distance（300bps）  Output power: Max100mW (20dBm) (127 levels adjustable)  Air data rate: 300 - 19200bps, can be configured through RF tool  UART data rate: 1200 - 57600bps, can be configured through RF tool ...

  • Page 3: Working Mode

    RF1276 LoRa module V3.0 4. Maximum specification Symbol Parameter Units Supply Voltage Operation Temperature ℃ Operation Humidity Storage Temperature °C 5. Pin Out: RF1276 module has 5 pins. Refers to the Table 1： RF1276 Pin NO. Pin Name Description Power supply DC 4.5V-6.5V Grounding of Power Supply Serial input, 485+/485A Serial output, 485-/485B...
  • Page 4 RF1276 LoRa module V3.0 Timing Sequence in Standard Mode b. Low power mode In this mode RF1276 enables serial port and CAD monitor which means the module monitors the wireless link periodically. When it detects the wireless signal in the wake-up period, it will open the receive circuit, pick out the effective data and transfer it to the host through the serial port.
  • Page 5 RF1276 LoRa module V3.0 c. Sleep mode In this mode most functions of the modules are disabled so if two modules are set to the Sleep Mode, they can’t communicate with each other so one module must be in Low Power Mode. Comparing to Low Power Mode, the modules in SLEEP MODE will not enable serial port and only keeps CAD monitor.

  • Page 6: Parameter Configuration

    RF1276 LoRa module V3.0 8. Parameter Configuration Through serial port or using setting tool ‘Rf-Tool’, users can configure relative parameters such as frequency, UART rate, air rate, checkout mode and so on. It is very simply for configuration. Based on different requirement, all options can be selected visually. It is shown in Table 2 and Figure 3.
  • Page 7 PC or in circuit. ♦ Setting through PC. RF1276 port is UART/TTL. When RF1276 connecting with PC, users need to use USB adapter. AppconWireless provides USB adapter as accessory. The schematic is shown in Figure 4 - 7 -...
  • Page 8 RF1276 LoRa module V3.0 Firstly users connect converter board to PC through DB9 cable and open ‘RF Tool’, then insert module into converter board. After that, the status column of ‘RF tool’ will give a indication ‘Found Device’. Users then can read/write the module. If users connect USB converter, USB drive ’’PL-2303_Driver_Installer’’need be installed firstly.
  • Page 9 RF1276 LoRa module V3.0 2. In command code, XX in sending command is 0x80 and in response command is 0x00. YY is the command type. The work mode of TYPE TYPE TYPE TYPE TYPE 0x01 write 0x02 read 0x03 standard 0x04 Central 0x05...
  • Page 10 RF1276 LoRa module V3.0 Write Command Code: 0x01 Command: 0xAF, 0xAF, 0x00, 0x00, 0xAF, 0x80, 0x01, 0x0C, ..CS, 0x0D, 0x0A Response.: 0xAF, 0xAF, 0x00, 0x00, 0xA F, 0x00, 0x01, 0x0C, ..CS, 0x0D, 0x0A Read Command Code: 0x02 Command: 0xAF, 0xAF, 0x00, 0x00, 0xAF, 0x80, 0x02, 0x02,0x00,0x00,0x91, 0x0D, 0x0A Response.: 0xAF, 0xAF, 0x00, 0x00, 0xAF, 0x00, 0x02, 0x02,0x00,0x00,0x91, 0x0D, 0x0A Standard Mode Command Code: 0x03 Command: 0xAF, 0xAF, 0x00, 0x00, 0xAF, 0x80, 0x03, 0x02, 0x00, 0x00, 0x92, 0x0D, 0x0A...

  • Page 11: Application Schematic

    RF1276 LoRa module V3.0 Please note that the working modes changed by the 0x03, 0x04 and 0x05 commands will not be written into nonvolatile memory so the working mode will be restored to the former mode before change after power-off. Users can use the WRITE command to change the working mode of module to standard mode or low power mode but the sleep mode will be restored to standard mode after next power-on even if the WRITE command is used.
  • Page 12 RF1276 LoRa module V3.0 Figure 7: Connection between Module and Device(TTL/RS232 port) Figure 8: Connection between Module and Device(RS485 port) 10. Constructing Network (one point to multi-point): RF1276 is a semi-duplex module, which can be communicated by point to point or one point to multi-point.

  • Page 13: Order Information

    RF1276 LoRa module V3.0 on UART rate, air rate and the size of data package). In addition, it also need consume some time to transmit from module to terminal, but the delay time is permanent in the same condition. 2）Data flux control Although there is a buffer zone with 256 bytes in the wireless module, when the UART rate is higher than the air rate, there must be a problem about the data flux.
  • Page 14 RF1276 LoRa module V3.0 12. Q&A: Questions and Answers Can not 1．The communication protocol is different between two modules, for communicate instance: data rate and checkout. between two 2． The frequency or RF data rate is different between two communicated devices modules.

  • Page 15: Security Status

    Federal Communication Commission Statement • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules see Ref. 4. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
