Summary of Contents for BENDIX BIW 103 W
-

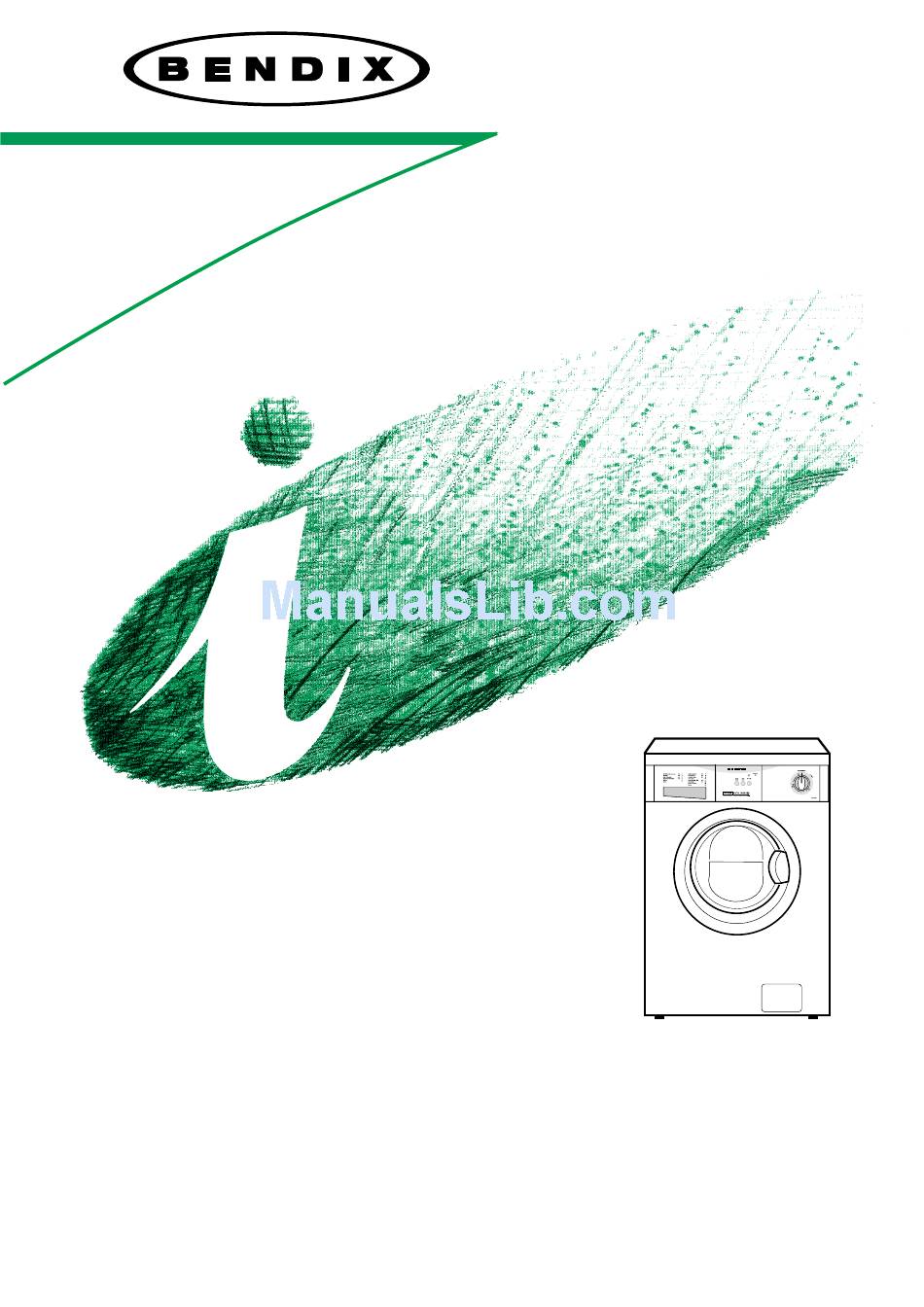

Page 1: Washing Machine
OPERATING & INSTALLATION INSTRUCTIONS WASHING MACHINE BIW 103 W 35.292.794/3... -
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Your New Washing Machine Description of the Appliance Detergent dispenser drawer The Control Panel Operating sequence Washing 4.5 kg of white cotton at 90¡C Load the laundry Measure out the detergent Measure out the fabric softener Select the required option Select the required programme Start the machine... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Automatic cooling of the wash water to 60¡C before draining, with the 90¡C programme. This reduces thermal shock to fabrics, helping to prevent creasing. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 Rinse hold button 4 Half load button 5 ON/OFF button 6 Mains-on light 7 Programme selector dial 8 Door opening handle 9 Drain pump 10 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener... -
Page 6: The Control Panel
The Control Panel 1 Programme guide 2 RINSE HOLD button Press this button to make the machine stop with water in the drum after the wash cycle. This prevents any creasing which may take place if the clothes are left damp in the drum. -
Page 7: Operating Sequence
Operating Sequence Before the first wash, we recommend that you run a cotton cycle at 60¡C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. -
Page 8: Start The Machine
6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply taps are turned on the drain hose is correctly and securely positioned the door and the detergent dispenser drawer are closed. Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating. -
Page 9: Washing 2 Kg Of Mixed Fabrics At 50¡C
WASHING 2 KG OF MIXED FABRICS AT 50¡C Suppose you have 2 kg of Mixed fabrics to wash. They are rather delicate fabrics and should not be washed at a high temperature. 1. Load the laundry Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. -
Page 10: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel Linen hand towel... -
Page 11: Which Detergent
Which detergent?... To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines. To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates. -
Page 12: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 13: Washing Programmes
Washing Programmes Programmes for cotton and linen Degree of soil and type Wash programme White example heavy soiled Whites+Prewash garments, household underwear, towels. White example normally soiled Whites garments, household underwear, towels. Fast coloured cotton or linen fabric, shirts, Fast coloureds underwear, (normally soiled) Non fast coloured cotton... -
Page 14: Washing Programmes
Washing Programmes Programmes for synthetics, delicates and wool Degree of soil and type Wash programme Synthetic or mixed fabrics, Mixed fabrics coloured garments, non- shrink shirts, blouses. Synthetic or mixed fabrics, Synthetics coloured garments, non- shrink shirts, blouses. Lightly soiled synthetic Quick &... -
Page 15: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 16: Cleaning The Water Inlet Filters
¥ When no more water comes out, unscrew the pump cover and remove it. Always keep a rag nearby to dry up spillage of water when removing the cover. • Remove any objects from the pump impeller by rotating it. ¥... -
Page 17: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 18: Service And Spare Parts
Symptom The door will not open Spinning starts late or the machine does not spin The machine makes an unusual noise No water is visible in the drum If after the above checks, there is still a fault, call your local Bendix Service Force Centre. -
Page 19: Guarantee Conditions
Guarantee Conditions Standard guarantee conditions This guarantee is in addition to your statutory and other legal rights. We, Bendix, undertake that if, within 12 months of the date of the purchase, this BENDIX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:... -
Page 20: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 21: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance You are advised to keep all the packaging for re-use in case the appliance has to be transported again. Unscrew and remove the three rear transit bolts (using a spanner). -
Page 22: Positioning
Important ! You are advised to keep all the packaging for re-use in case the machine is to be transported again. If the appliance is to be moved, the precautions listed under The dangers of freezing must be carried out i.e. -
Page 23: Water Drainage
Water drainage This appliance is designed to be permanently plumbed into your home’s water supply and drainage system. The appliance drain hose should hook into a standpipe, the hook in the drain hose is formed using the plastic U-Piece supplied. The standpipe should have an internal diameter of approximately 38mm (see diagram) thus ensuring there is an air break between the drain hose and standpipe. -
Page 24: Levelling
Levelling Level the washing machine by loosening or tightening the feet. Once in the right position fix the feet by pushing the nuts against the base of the case. Accurate levelling prevents vibration, noise and displacement of the machine during operation. After levelling the machine, secure the feet by tightening the ring nuts with the aid of a screwdriver. -
Page 25: Electrical Connection
Electrical connections Any electrical work required to install this appliance should be carried out by a qualified electrician.or competent person WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance rating plate(the plate is adhered to the rear of the appliance). - Page 28 Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ Consumer care telephone number 08705 950 950 Electrolux plc 2002/06...
