Freedom Scientific TOPAZ HD Reference Card

Download this manual

TOPAZ

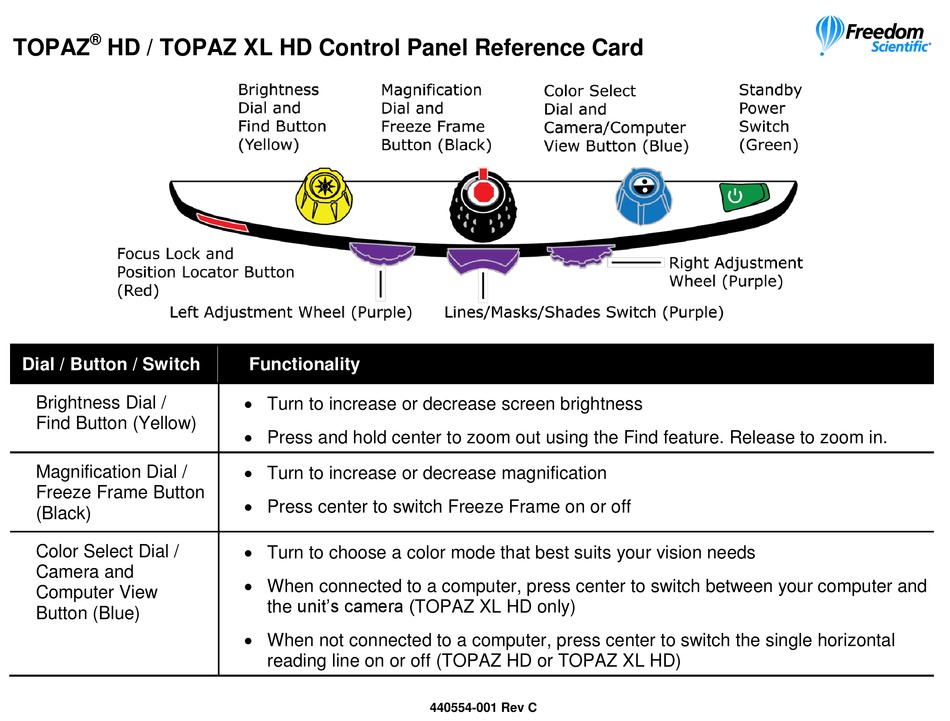

HD / TOPAZ XL HD Control Panel Reference Card

Dial / Button / Switch

Brightness Dial /

Find Button (Yellow)

Magnification Dial /

Freeze Frame Button

(Black)

Color Select Dial /

Camera and

Computer View

Button (Blue)

Functionality

 Turn to increase or decrease screen brightness

 Press and hold center to zoom out using the Find feature. Release to zoom in.

 Turn to increase or decrease magnification

 Press center to switch Freeze Frame on or off

 Turn to choose a color mode that best suits your vision needs

 When connected to a computer, press center to switch between your computer and

the unit's camera (TOPAZ XL HD only)

 When not connected to a computer, press center to switch the single horizontal

reading line on or off (TOPAZ HD or TOPAZ XL HD)
