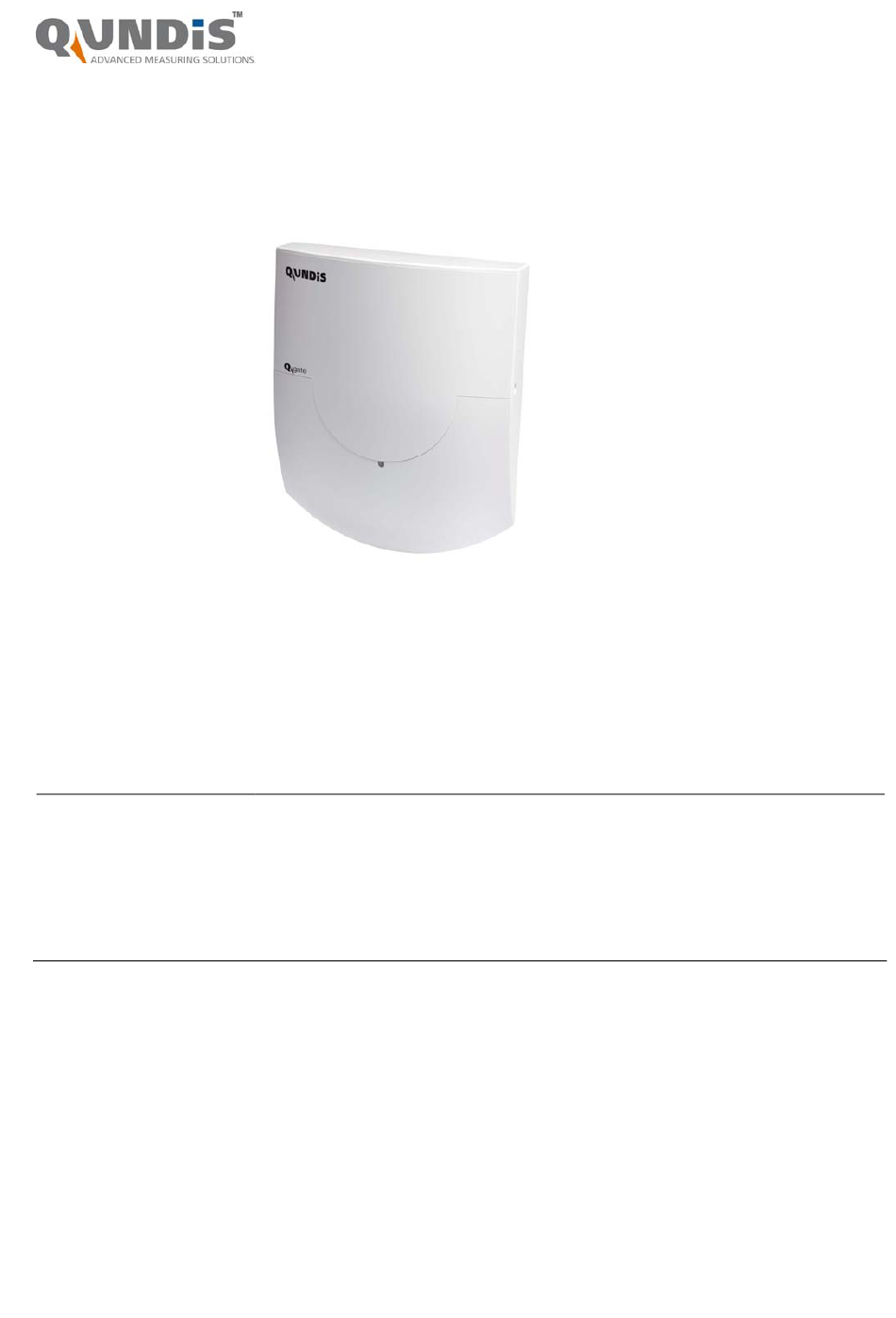

Use
CE1N2878en
10.09.2009
Network nodes
with gateway
The WT...16... network nodes are used to receive and handle the data transmitted by
consumption meters of the Q AMR system. They are equipped with a gateway that
can provide data of up to 2,000 meters for remote readout. WTX16.IP can be read via
Ethernet while WTX16.GSM and WTX16.MOD-1 contain a GSM modem. They are read
via the telephone network.
The WT...16... network node is a component of the Q AMR system. It has been designed
for use in buildings to create a radio network for receiving and storing the data transmitted
by the consumption meters installed in the building. Communication between several net-
work nodes is via radio also so that no wiring is required. All measured values acquired by
the consumption meters are continuously exchanged within the network, which means that
every network node stores the current consumption values, the values read out at the end of
the month, and the set day values of all metering devices on the network. Owing to this
operating principle, all network data can be read out at any of the nodes, or a QUNDIS gate-
way for remote data transmission can be used with any of the nodes.

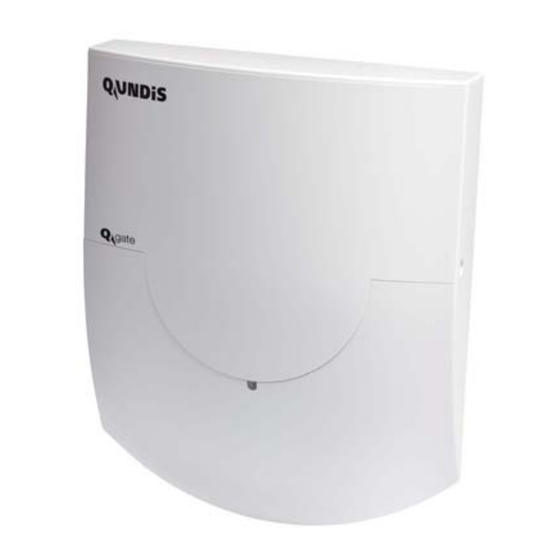

WTX16.GSM
WTX16.IP
WTX16.MOD-1
www.qundis.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for QUNDIS WTX16.GSM
Summary of Contents for QUNDIS WTX16.GSM
- Page 1 Owing to this operating principle, all network data can be read out at any of the nodes, or a QUNDIS gate- way for remote data transmission can be used with any of the nodes.
- Page 2 Combinations All network nodes with gateway can be used in any combination with other QUNDIS network nodes as long as the maximum number of 12 nodes per network is not exceeded. Network nodes with gateway and integrated M-Bus master (WTX16.GSM and WTX16.IP) can read external M-Bus meters complying EN1434/3.
- Page 3 It is protected against temporary mains power failures by the backup battery. The network nodes WTX16.GSM and WTX16.IP are equipped with a gateway to store data of up to 2000 meters and to provide a possibility for remote readout via GSM or Ethernet.
- Page 4 Connector for power supply DC 3,6 V Connector for backup battery Operating mode button (MODE, red) Button for switching the display (DISPLAY, blue) Reset button (recessed) Display Connector (not for the user) Firmware memory (covered up) 4/12 www.qundis.com Network nodes with gateway WTX16.GSM/IP/MOD-1CE1N2878en 10.09.2009...
- Page 5 Wall-mounted section The wall-mounted section of WTX16.GSM and WTX16.IP contains these components: WTX16.GSM/WTX16.IP Frontal view Perspective Connector for power supply DC 3,6 V Indication of mains supply (red LED) permanently installed cable (no flexible cable!) SIM-card holder (WTX16.GSM only) RS232 interface for servicing...
- Page 6 Gateway is > 1 sec ready for use WTX16.MOD-1 ≤ 1sec Gateway is > 1 sec and < 2,5 sec Error ready for use Gateway is ≥ 3 sec (only GPRS) 6/12 www.qundis.com Network nodes with gateway WTX16.GSM/IP/MOD-1CE1N2878en 10.09.2009...
- Page 7 (meter replacement) In battery powered network nodes this mode is terminated automatically after eight hours. This mode is terminated automatically after eight hours. Possibly only with the software ACT26 version 2.0 or higher 7/12 www.qundis.com Network nodes with gateway WTX16.GSM/IP/MOD-1 10.09.2009...
- Page 8 Engineering notes For detailed engineering instructions, refer to the QUNDIS Engineering Manual CE1J2870. Engineering Commissioning of WTX.. For mains-powered WTX16..network nodes, the mains connections are to be made first at the selected mounting positions (typically on every second floor, mounting height ≥...
- Page 9 After complete installation of all meters and network nodes, the gateway has to do a search run to find all devices of network(s). The search run started by triggering a command at the connected PC or by remote using the software ACS26. 9/12 www.qundis.com Network nodes with gateway WTX16.GSM/IP/MOD-1 10.09.2009...
- Page 10 WTX16GSM For that purpose, remove the upper section of the WTX16.GSM from the base. Press the SIM card slightly in the slot at the bottom of the gateway. Ensure that the chamfered corner is in the correct position.
- Page 11 The transmission in WAN can be done secured by SSL or unsecured. Parameter setting The WTX16.GSM, WTX16.MOD and WTX16.IP network nodes are parameterized with the ACT21 software. The scope of delivery of the software includes an RS-232 cable for con- necting the PC to the gateway.
- Page 12 Technical features are binding only when expressly agreed upon at the time a contract is concluded. ©2009 QUNDIS GmbH Subject to alteration 12/12 www.qundis.com Network nodes with gateway WTX16.GSM/IP/MOD-1CE1N2878en 10.09.2009...
