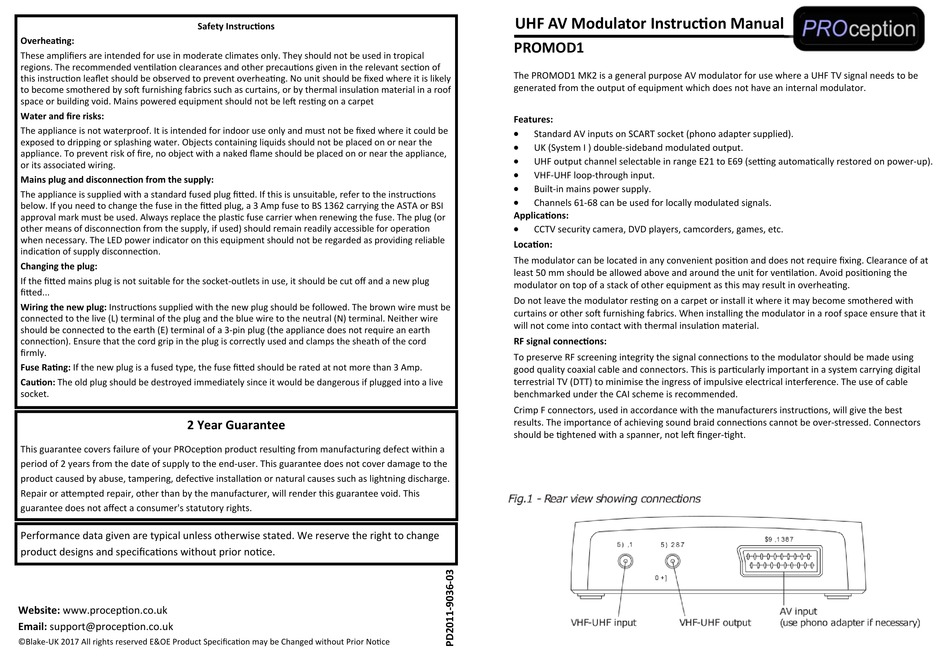

PROception PROMOD1 Instruction Manual

Safety Instruc ons
Overhea ng:
These amplifiers are intended for use in moderate climates only. They should not be used in tropical
regions. The recommended ven la on clearances and other precau ons given in the relevant sec on of
this instruc on leaflet should be observed to prevent overhea ng. No unit should be fixed where it is likely
to become smothered by so furnishing fabrics such as curtains, or by thermal insula on material in a roof
space or building void. Mains powered equipment should not be le res ng on a carpet
Water and fire risks:
The appliance is not waterproof. It is intended for indoor use only and must not be fixed where it could be
exposed to dripping or splashing water. Objects containing liquids should not be placed on or near the
appliance. To prevent risk of fire, no object with a naked flame should be placed on or near the appliance,
or its associated wiring.
Mains plug and disconnec on from the supply:
The appliance is supplied with a standard fused plug fi ed. If this is unsuitable, refer to the instruc ons
below. If you need to change the fuse in the fi ed plug, a 3 Amp fuse to BS 1362 carrying the ASTA or BSI
approval mark must be used. Always replace the plas c fuse carrier when renewing the fuse. The plug (or
other means of disconnec on from the supply, if used) should remain readily accessible for opera on
when necessary. The LED power indicator on this equipment should not be regarded as providing reliable
indica on of supply disconnec on.
Changing the plug:
If the fi ed mains plug is not suitable for the socket‐outlets in use, it should be cut off and a new plug
fi ed...
Wiring the new plug: Instruc ons supplied with the new plug should be followed. The brown wire must be
connected to the live (L) terminal of the plug and the blue wire to the neutral (N) terminal. Neither wire
should be connected to the earth (E) terminal of a 3‐pin plug (the appliance does not require an earth
connec on). Ensure that the cord grip in the plug is correctly used and clamps the sheath of the cord
firmly.
Fuse Ra ng: If the new plug is a fused type, the fuse fi ed should be rated at not more than 3 Amp.
Cau on: The old plug should be destroyed immediately since it would be dangerous if plugged into a live
socket.
2 Year Guarantee
This guarantee covers failure of your PROcep on product resul ng from manufacturing defect within a
period of 2 years from the date of supply to the end‐user. This guarantee does not cover damage to the
product caused by abuse, tampering, defec ve installa on or natural causes such as lightning discharge.
Repair or a empted repair, other than by the manufacturer, will render this guarantee void. This
guarantee does not affect a consumer's statutory rights.
Performance data given are typical unless otherwise stated. We reserve the right to change
product designs and specifica ons without prior no ce.
Website: www.procep on.co.uk
Email: support@procep on.co.uk
©Blake‐UK 2017 All rights reserved E&OE Product Specifica on may be Changed without Prior No ce
UHF AV Modulator Instruc on Manual
PROMOD1
The PROMOD1 MK2 is a general purpose AV modulator for use where a UHF TV signal needs to be
generated from the output of equipment which does not have an internal modulator.
Features:

Standard AV inputs on SCART socket (phono adapter supplied).

UK (System I ) double‐sideband modulated output.

UHF output channel selectable in range E21 to E69 (se ng automa cally restored on power‐up).

VHF‐UHF loop‐through input.

Built‐in mains power supply.

Channels 61‐68 can be used for locally modulated signals.
Applica ons:

CCTV security camera, DVD players, camcorders, games, etc.
Loca on:
The modulator can be located in any convenient posi on and does not require fixing. Clearance of at
least 50 mm should be allowed above and around the unit for ven la on. Avoid posi oning the
modulator on top of a stack of other equipment as this may result in overhea ng.
Do not leave the modulator res ng on a carpet or install it where it may become smothered with
curtains or other so furnishing fabrics. When installing the modulator in a roof space ensure that it
will not come into contact with thermal insula on material.
RF signal connec ons:
To preserve RF screening integrity the signal connec ons to the modulator should be made using
good quality coaxial cable and connectors. This is par cularly important in a system carrying digital
terrestrial TV (DTT) to minimise the ingress of impulsive electrical interference. The use of cable
b enchmarked under the CAI scheme is recommended.
Crimp F connectors, used in accordance with the manufacturers instruc ons, will give the best
results. The importance of achieving sound braid connec ons cannot be over‐stressed. Connectors
should be ghtened with a spanner, not le finger‐ ght.
