Series

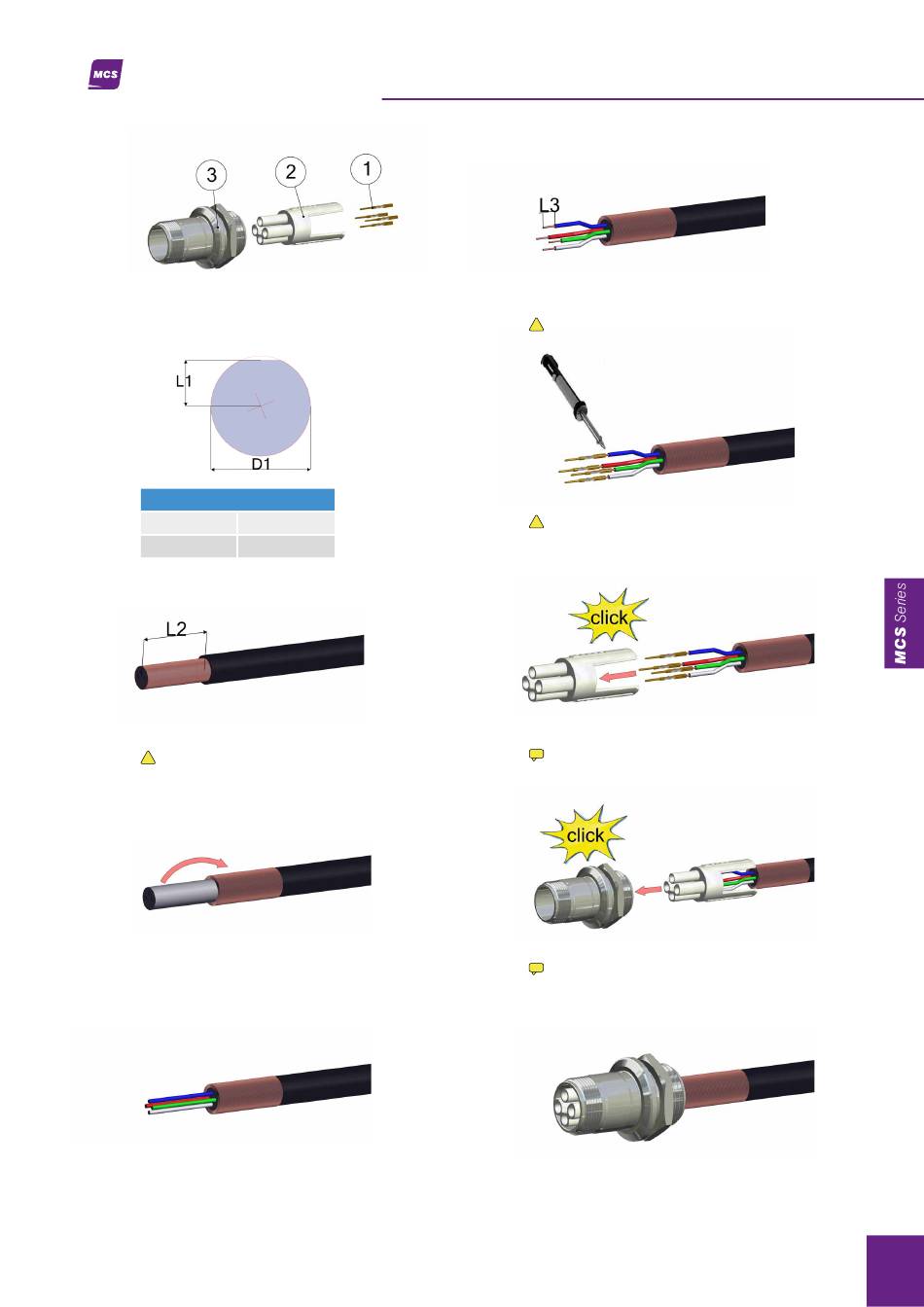

1.
Part as delivered
contacts (1), insulation part (2), housing (3)
2.
Panel cut out
D1 mm [inch]
L1 mm [inch]
22.20 [.874"]
10.10 [.398"]
3.
Carefully remove cable jacket
(L2 = min. 30 mm [1.181"])
Do not damage metal shield.
!
4.
Fold back shield
5.
Remove any filling elements from cable
Assembly instructions (GB/GS)
© GES Electronic & Service GmbH
6.
Remove dielectric insulation of single wires
(L3 = 4 mm [.157"])
Do not damage conductor.
!
7.
Crimp or solder one contact (1) each on every conductor
Tin-solder must not remain on contact surface!
!
8.
Slide contacts (1) completely into insulation
part (2) until contacts snap
...
Put in all contacts at the same time
9.
Put insulation part (2) into housing (3)
...
Pay attention to notches.
10.
Assembly finished
www.ges-electronic.de
77
Advertisement
Summary of Contents for GES GB MCS Series
- Page 1 Do not damage metal shield. Put in all contacts at the same time Fold back shield Put insulation part (2) into housing (3) Pay attention to notches. Remove any filling elements from cable Assembly finished © GES Electronic & Service GmbH www.ges-electronic.de...
- Page 2 (4) until shield braid clamps between outer cone (3) and inner cone (4) Remove any filling elements from cable Cut overlapping shield braid Carefully remove loose shield parts. Loose shield parts can cause electrical break down. © GES Electronic & Service GmbH www.ges-electronic.de...
- Page 3 Use notches for correct position of insulation part. Note – important! 1. Please carefully read assembly instructions before cable assembly. 2. Cable assembly must only be done by trained and qualified personnel. © GES Electronic & Service GmbH www.ges-electronic.de...
