SAVEPOWER PC Standby Stop Manual

POwer SAvINg POTeNTIAL
Depending on the number and types of devices connected to the
PC Standby Stop, you can save up to 30 euro or more per year.

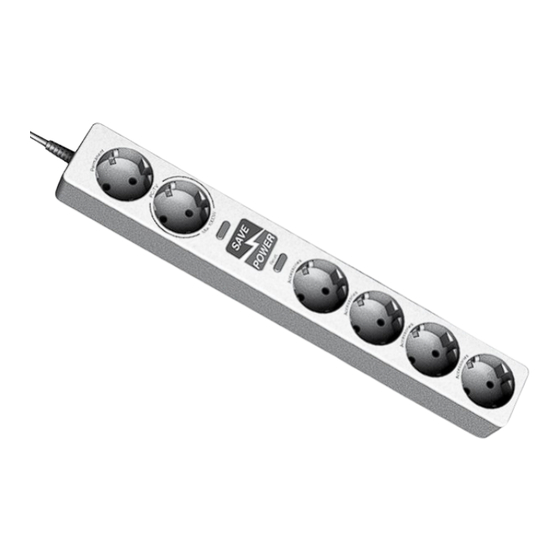

PC Standby Stop
TV
Permanent power
Laptop PC & Mac
technical data
Article name: PC Standby Stop
Voltage: 180–250V AC 50Hz
Own power load:
Maximum power load:
Maximum power load in 'PC/TV' socket:
Degree of protection:
This product protects all connected devices against
overvoltage through the power network, which prevent
damage and minimizes the risk of fire.
If the indicator on PC Standby Stop lights red, the
overvoltage fuse has blown and the product must
be discarded.
Produced by:
SavePower A/S
www.savepower.eu
DVD Decoder Gaming console
(1-19W) (5-30W) (18-80W)
Monitor Printer
(1-8W) (4-10W)
< 0,025W
2300W, 10A
1000W, 5A
IP20
Modem
(4-13W)
pc standby stop
1
4
2
INSTALLATION
Most installations should work using the instructions
below. If not, follow the reset instructions on next page.
3
1. Plug computer, TV or any electric device with power
consumption less than 1000W into socket labeled 'PC/TV'
2. Plug accessories into sockets labeled 'Accessories'
3. If a device needs permanent power, plug it into the
socket labeled 'Permanent'
4. Turn on power from wall outlet - PC Standby Stop is
now ready for use
To test setup, turn on device plugged into 'PC/TV'. After a
short time all devices plugged into sockets labeled 'Acces-
sories' should recieve power. Put device plugged into 'PC/
TV' on standby. After a short time all devices plugged into
sockets labeled 'Accessories' should shut off.
