Manual Quick Start
Place the Airwall where it can reach the Conductor on your shared network. The
fastest method is to connect the Airwall via the console port:
The Airwall should now be recognized in the Conductor,
showing up on the Licensing tab, or on the Airwalls page as
ready to manage.
Once the Airwall is connected to the Conductor, you can man-
age and configure it there (including serial ports). For alternate
methods of provisioning the Airwall or installing the console
port driver, go to Airwall help at https://webhelp.tempered.io/
webhelp/.

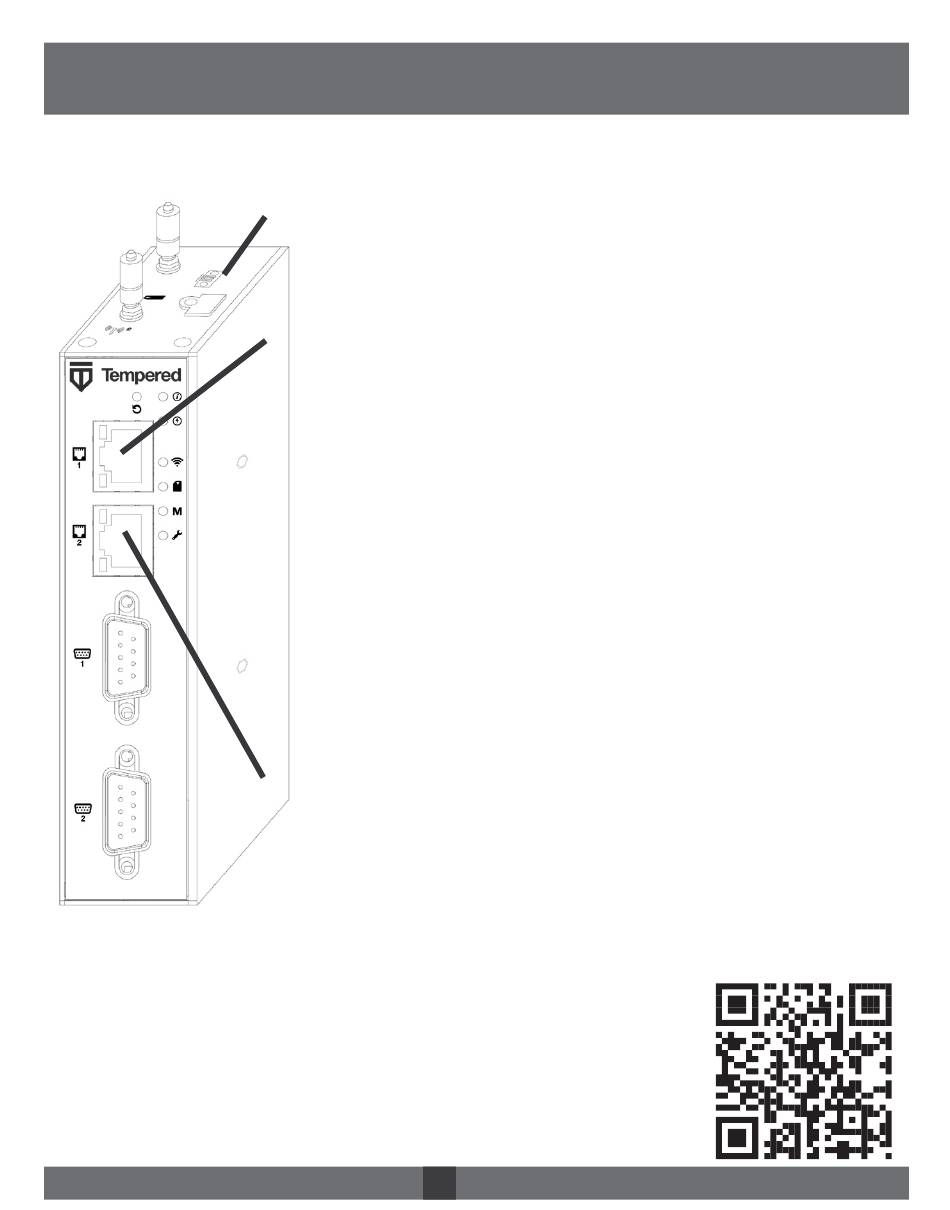

Airwall™ -110 Series
1
Plug in the Airwall – Locate the Airwall in an area that
complies with its safe operating guidelines, then plug it
in or apply power.
2
Connect to your network – Plug in to your network
using port 1.
3
Connect a computer to the Airwall – Plug in using the
micro USB console port located on the bottom.
- Using a terminal (macOS, Linux) or terminal
emulator (Windows), connect to the Airwall
using baud rate 115200.
- At the login prompt, log in with:
name:
airsh
- Set the Conductor IP address, or URL and port
(optional). For example:
conductor set my-conductor.tempered.com
4
Ping the Conductor URL –
ping my-conductor.tempered.com
5
Connect to devices – Connect the devices you want to
protect to the Airwall on Port 2.
DOC-0079 EN
Airwall – 110
, password:
airsh
Revised: May 6, 2020 QUICK START GUIDE
.
For the latest info,
see Airwall help:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Airwall 110 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TEMPERED Airwall 110 Series

  • Page 1 Once the Airwall is connected to the Conductor, you can man- age and configure it there (including serial ports). For alternate methods of provisioning the Airwall or installing the console port driver, go to Airwall help at https://webhelp.tempered.io/ webhelp/. Airwall™ -110 Series...
  • Page 2 Once the Airwall is connected to the Conductor, you can man- age and configure it there (including serial ports). For alternate methods of provisioning the Airwall or installing the console port driver, go to Airwall help at https://webhelp.tempered.io/ webhelp/. Airwall™ -110 Series...
  • Page 3 Platform Guide Airwall 110e and Airwall 110g Security Appliance support@tempered.io +1 206.452.5500 ext. 2 www.tempered.io 3101 Western Ave., Ste. 550 Seattle, WA 98121 The Airwall 110 platforms are small form factor indus- trial security appliances that facilitate private overlay networks between customer-provided equipment and devices.

  • Page 4: Specifications

    Specifications Airwall 110 Series Ethernet Ports 2 x 10/100 Mbps RJ-45 ports, auto MDI/MDIX Console Port 1 x micro USB Controls 1 x multi-purpose button (actuated with pin) Indicators 1x Power 1x Diagnostic mode 1x Status 1x Cellular Link (110g)

  • Page 5: Specifications (Continued

    Specifications (continued-pg 2) Cellular Connectivity (110g) SIM card 1x micro (3FF) Push-Push SIM card slot DC-HSDPA Category 24. 42mbps DL max HSUPA Category 5. 5.76Mbps UL max 24dBm+1dB/-3dB maximum transmit power LTE Category 4: 1.4 – 20MHz bandwidth FDD 150mbps DL, 50mbps UL max TDD 130mbps DL, 30mbps UL max ±...

  • Page 6: Parts List

    8.00 8.00 3.00 Hereby, Tempered Networks, Inc declares that the radio equipment type Airwall 110g is in compliance with the Directive 2014/53/EU. The full text of the EU dec- laration of conformity is available at the following internet address: https://repo.

  • Page 7: Radiation Exposure

    This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Radiation Exposure This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment.

  • Page 8: Fault Relay

    Wiring SIM Card Orientation Power Inputs Insert the SIM card with the cut corner up, as shown in the picture This device supports one power supply. The on the right. connector for PWR 1 is located on the termi- nal block on the top of the unit. ...

  • Page 9: Safety And Warnings

    Multi-Purpose Button Also called the Reset button, the multi-purpose button provides two different func- tions, depending on how long it is pressed and held. Short Press Press for 5 seconds and release. The Status Places the Airwall LED will blink steadily. in diagnostic mode.

  • Page 10: Troubleshooting

    .txt file. Review the diagnostic report for a high-level look at the overall health of the Airwall. Create a support bundle for Tempered Support: A support bundle .pkg file is an encrypted archive that facilitates technical support by Tempered.
