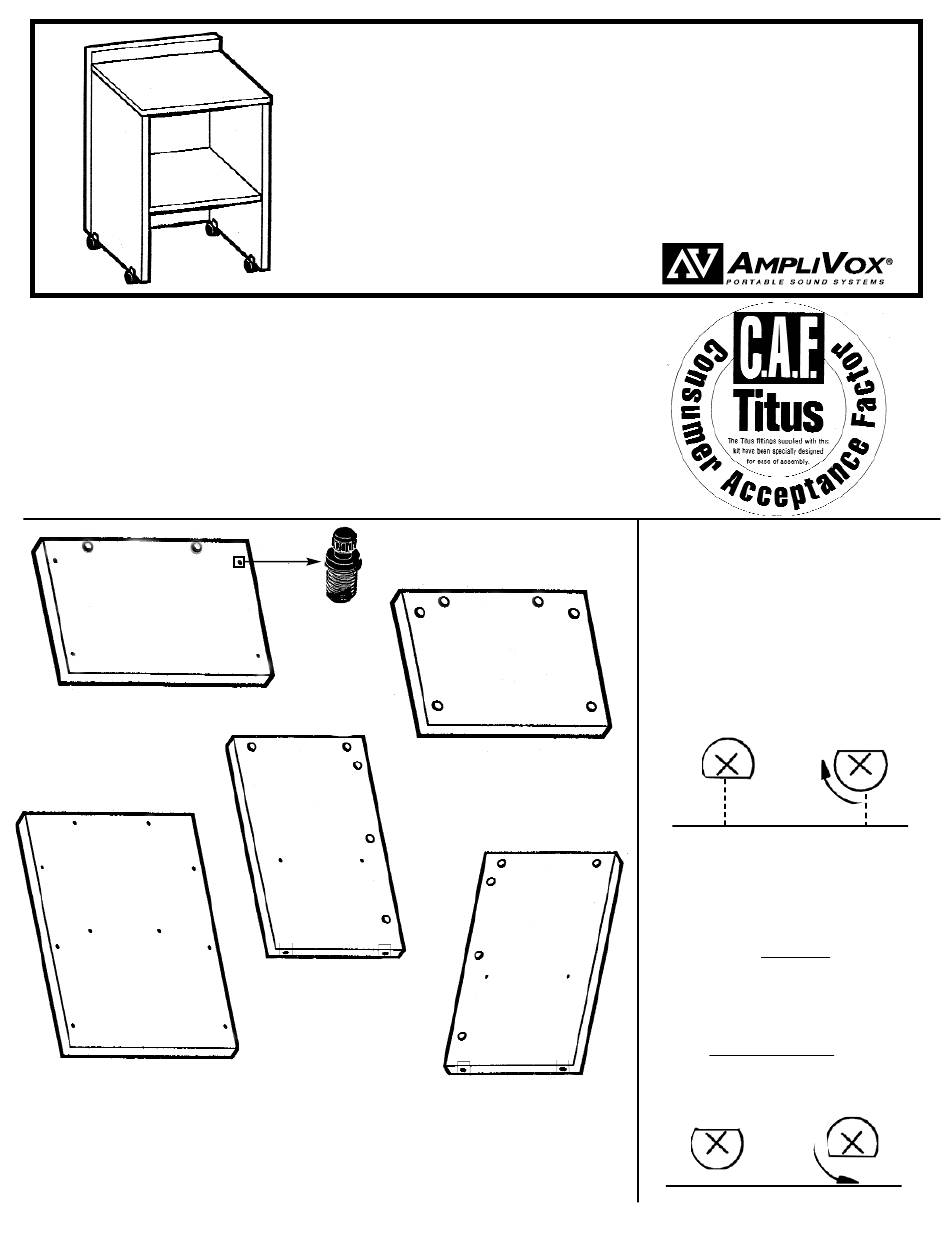

AmpliVox Lectern Base S-260 Easy Step-By-Step Instructions

Packing List:

• Table top
• Shelf
• Left Side Panel
• Right Side Panel
• Front panel
• 4 Casters - 2 locking
Top Panel
Front Panel
1. Unpack all the pieces. Be sure to
save the packing and the box in case
you need to return the lectern for any
reason. Check that you have all the
pieces and that they are not damaged.
F:\docs\productinstructions\r-260assembly.qxd
Easy Step-By-Step Instructions
Featuring Quickfit-Expando-6 Connectors
The Lectern Base is designed for
easy assembly. If you have any ques-
tions about assembling
lectern base, or if you want more
information about accessories, call
AmpliVox's customer service line.
1-800-267-5486
Hardware:
•18 Quickfit-Expando-6 Connectors
pre-installed
•18 Push-in Quickfit-6 Expanding dowels
Tools Needed:
•Phillips Screwdriver - for 1/2 turn of pre-
inserted Quickfit-Expando-6 Connectors
Quickfit-6 Expanding Dowel
Left Side Panel
2. Insert the steel pins. With your
thumb(use phillips screwdriver to ease
insertion), push the steel pins into the
holes in the 2 side, front and top pan-
els. Make sure the plastic collar is flush
with the wood surface.
for S-260 Lectern Base Assembly
The lectern base is carefully packed
to minimize shipping damage. If your
your new unit was damaged in shipping call
our toll-free customer service line or
visit our web site at:
http://www.ampli.com
Shelf
Right Side Panel
3. Inspect the Quickfit Expando-6
Connectors. The flat edge on the con-
nector must be facing the outer edge of
the board. Use a phillips screwdriver to
rotate them, if needed.
Untightened
(unlocked)
Edge of board
How the Quickfit-Expando-6
Connectors work.
Do not over tighten the connectors.
They will break if turned too far. Turn
only 1/2 turn clockwise to lock. The
steel Quickfit-6 expanding dowels and
the Quickfit-Expando-6-Connectors lock
together for easy assembly.
Turn counterclockwise to unlock
Tightened To untighten
(locked)
Edge of board
To tighten
(to lock)
(to unlock)
