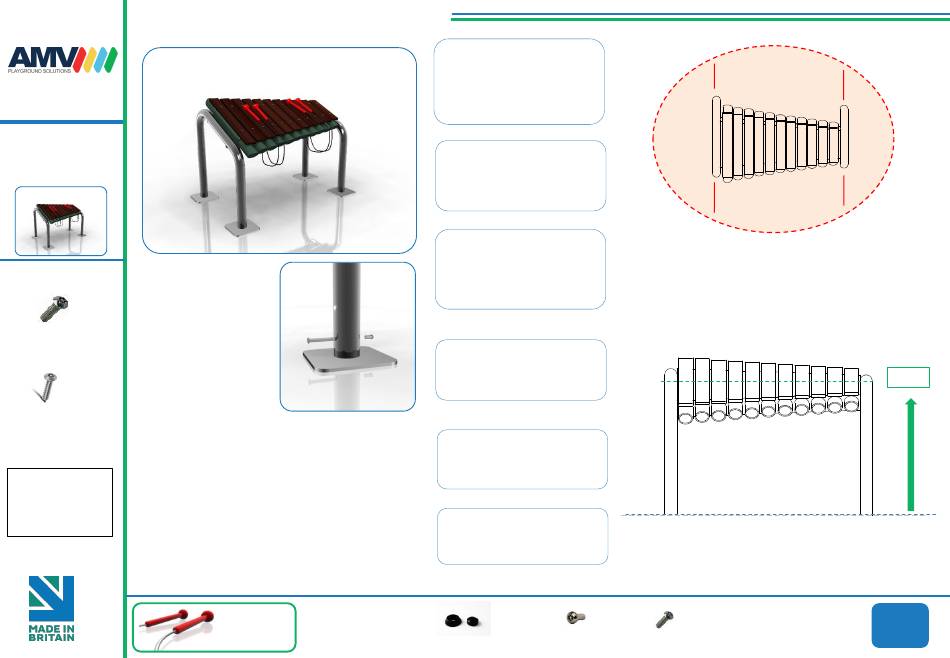

AMV Playground Solutions Grand Marimba Installation Instructions

Installation Instructions
Surface Fixed
Grand Marimba
Page 1 of 3
Instrument
Components:
x4
M10x30 Security Screw
10x3/4
Secure Screw
X4
Metric Conversion:
250mm/ 10"
400mm/ 16"
550mm/ 22"
1.5m/ 59"
Weight of heaviest part
BS EN 1176
(1.2)
40kg (Grand Marimba)
Ground Fix
Pair Large Red
Beaters X2
Components:
1. Attach the steel legs to
each end of the instrument
with the M10x30 security
screws. (See Assembly Guide)
2. Attach Surface Fixing posts
to legs(1.2) (See Ground Fix
Post Installation Sheet)
3.Locate Plate in desired
location and mark holes to fix
to desired surface.
4. Fix to Surface using
recommended ground
anchors not supplied
5. Make sure all fixings are
covered and secure using
cover caps provided
6. Attach the 2 pairs of beater
to the under side of the
instrument
x16
x4
2 Part Cover Cap M10 Barrel Nut
1.5m
1.5m
x4
M10x70 Security Screw
Install Instrument
with 1.5m free space
(from widest point)
around it.
1.5m
1.5m
KS1,2
48 Kg
