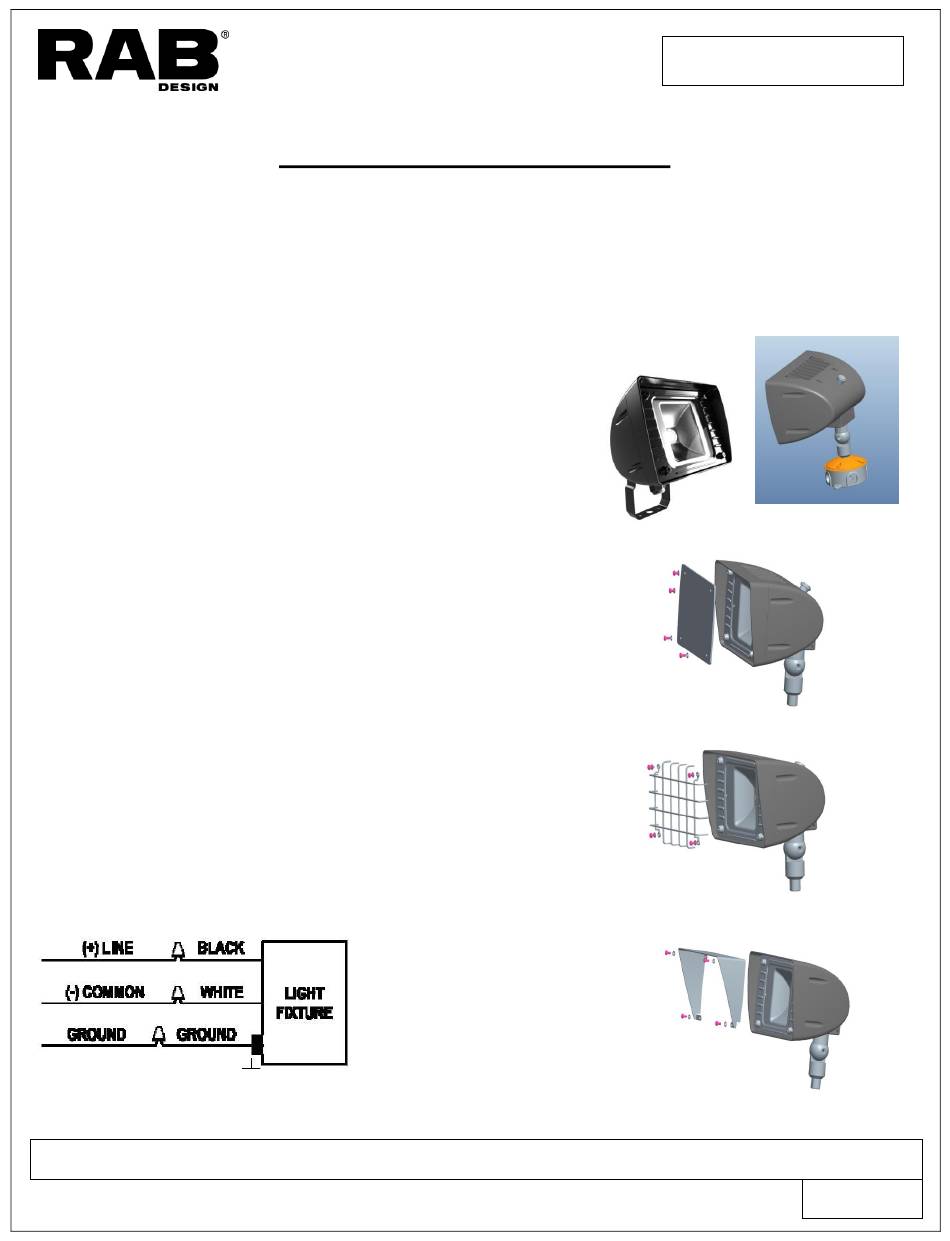

RAB Design RFL1 Installation Instructions

IMPORTANT: READ CAREFULLY BEFORE INSTALLING FIXTURE. SAVE THESE INSTRUCTIONS.
WARNING:
Disconnect power during installation and before servicing.
SAFETY:
This fixture must be wired in accordance with the Canadian Electrical Code, and
applicable local codes and ordinances.
Proper grounding is required to ensure personal safety.
A qualified electrician should perform all wiring.
MOUNTING OPTIONS:
1. Mounting bracket (yoke) – mounted to the wall with two screws (not
provided) – Fig.1
2. Mounting knuckle – mounted to the junction box (not provided) –
Fig.2
OPTIONAL COVERS
1. PC Cover – can be mounted to the fixture frame with four #8-32
screws – Fig.4
2. Wire Guard – can be mounted to the fixture frame with four #8-32
screws – Fig.5
3. Cover Guard – can be mounted to the fixture frame with four #8-32
screws – Fig.6
WIRING INSTRUCTIONS
1. Check that the line voltage is correct. Universal voltage drivers
permit operation at 120-277 VAC/50/60Hz, or 347 VAC/60Hz.
2. Connect fixture GROUND (green) wire to power supply GROUND
(green) wire.
3. Connect fixture WHITE wire to power supply NEUTRAL wire
4. Connect fixture BLACK wire to power supply LINE wire
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation,
operation or maintenance.
RAB DESIGN LIGHTING INC.
222 Islington Avenue. Toronto, Ontario, M8V 3W7 - www.rabdesign.ca
INSTALLATION INSTRUCTIONS
RFL1/RFL2
Fig.1 Fig.2
Fig.3
Fig.4
Fig.5
RFL1/RFL2
